Aosom 370-166V80 Assembly Instruction Manual

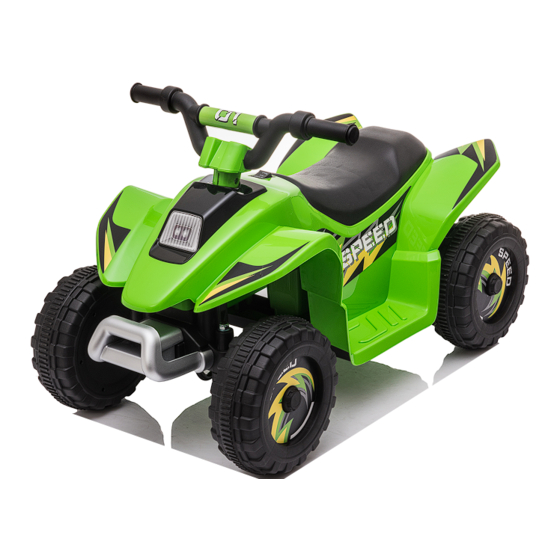

Children's electronic toy beach car
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CHILDREN'S ELECTRONIC TOY BEACH CAR
• Suitable for 3+ Years
• Maximum user weight: 30 kg
WARNING:
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important
information. Before first time use, charge the battery for at least 4-6
hours, but no more than 10hours.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
ASSEMBLY INSTRUCTION
Must be assembled by an adult.
INfac015_US
370-166V80

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 370-166V80 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aosom 370-166V80

Summary of Contents for Aosom 370-166V80

  • Page 1 INfac015_US 370-166V80 CHILDREN’S ELECTRONIC TOY BEACH CAR • Suitable for 3+ Years • Maximum user weight: 30 kg WARNING: Must be assembled by an adult. Read and understand this entire manual before using! Please keep this manual for future reference as it contains important information.

  • Page 2: Specification

    About Your New Vehicle On the purchase of your new Ride-On. This ride-on car will provide your child with many miles of riding of enjoyment. To help assure you and your rider a safe ride we ask you to please read this manual carefully, and keep it for future reference.

  • Page 3: Parts List

    Parts List Q’TY (PCS) REMARK PART NAME Configuration 1 Configuration 2 Vehicle body Ø10 washer Wheel Ø8 washer Lock nut Optional Wheel cover Optional Hubcap Front axle lingage Ø4x16 screw Steering column Handle bar M5x30 machine screw Ø5 nut Spanner Charger...

  • Page 4: Parts Diagram

    Parts Diagram...

  • Page 5: Rules For Safe Riding

    Safety PREVENT INJURIES AND DEATHS: • NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep child in view when child is in vehicle. • This toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or third parties.
  • Page 6 Fit the Front Axle Linkage • Gently turn the vehicle body upside down. 1. Fit the front axle linkage to the vehicle body. 2. Insert four Ø4x16 screws through the front axle linkage and into the vehicle body, tighten with a screwdriver. •...

  • Page 7: Attach The Handle Bar

    Attach the Handle Bar • Turn the vehicle body over. 1. Insert the power unit connector into the hole the vehicle body. 2. Fit the handle bar onto the end of the steering column. 3&4. Line up the holes on the steering wheel with the holes on the steering column, insert the M5x30 machine screw.

  • Page 8: Attach The Rear Wheels

    Attach the Rear Wheels Rear view 1. Slide a wheel onto the rear axle from the right side. Ensure the wheel match up with the gear box. 2. Slide a Φ8 washer onto the rear axle. 3. Tighten a lock nut to the end of the rear axle with a spanner. 4.

  • Page 9: Attach The Front Wheels

    Attach the Front Wheels Front view 1. Slide a Φ10 washer onto the front axle from the left side. 2. Slide a wheel onto the front axle. 3. Slide a Φ8 washer onto the front axle. 4. Tighten a lock nut to the end of the front axle with a spanner. 5.
  • Page 10 Connect the Power Supply External charging type : If your product was External Charging type, follow the steps on this page. Top view 1. Using a slotted screwdriver(not included) or coin to turn the seat lock, and remove the seat. 2.
  • Page 11 Use your New Ride-on Style I IMPORTANT! Always stop vehicle when changing the speed or direction to avoid damage the gears and motor. 1. Power button: ● To move the product, press the button. ● To stop or slow down, release the button. 2.
  • Page 12 Charging WARNING! ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY! WARNING! This product with Charging Protection: when charging, all functions will be cut off! Only an adult can charge and recharge the battery! • When the vehicle begins to run slowly, recharge the battery. •...
  • Page 13 Charing 1. Battery charing type Charger connector A. Using a slotted screwdriver(not included) or coin to turn the seat lock counterclockwise to the end, and remove the seat. B. Unpulg the battery connector with the vehicle connector. C. Plug the charger connector into the battery connector. D.

  • Page 14: Troubleshooting Guide

    Troubleshooting Guide Possible Cause Solution Problem Vehicle does not run Battery low on power Recharge battery. Thermal fuse has tripped Reset fuse, see <Fuse> Check that the battery connectors are firmly plugged Battery connector or wires into each other. If wires are loose around the motor are loose contact your distributor please.

  • Page 15: Disposal Of Battery

    Maintaining • It is parents' responsibility to check main parts of the toy before using, must regularly examine for potential hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and that in the event of such damage, the toy must not be used until that damage had been properly removed.
