JVC KV-PX9BJ Service Manual page 26

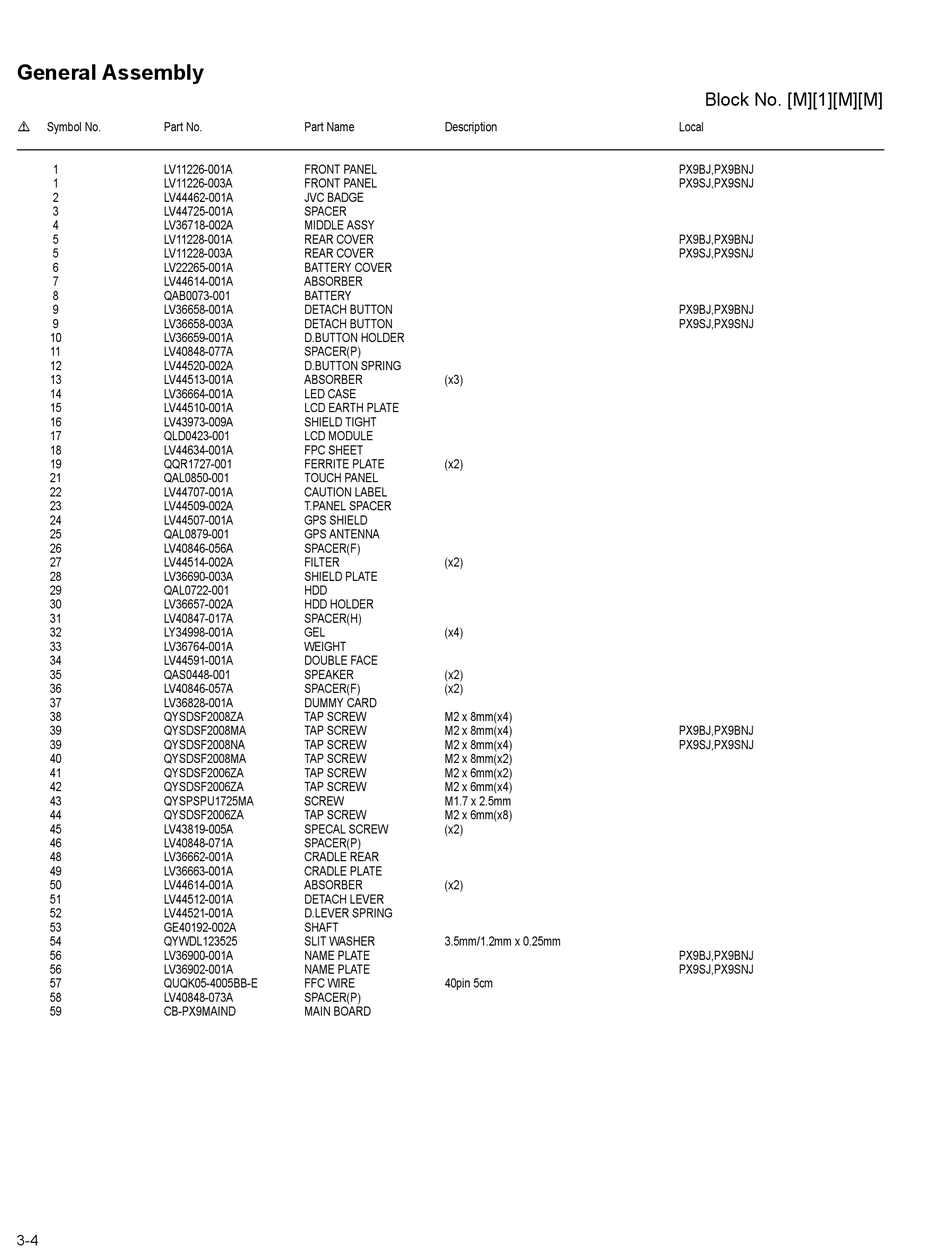

General Assembly
 Symbol No. Part No.
1 LV11226-001A
1 LV11226-003A
2 LV44462-001A
3 LV44725-001A
4 LV36718-002A
5 LV11228-001A
5 LV11228-003A
6 LV22265-001A
7 LV44614-001A
8 QAB0073-001
9 LV36658-001A
9 LV36658-003A
10 LV36659-001A
11 LV40848-077A
12 LV44520-002A
13 LV44513-001A
14 LV36664-001A
15 LV44510-001A
16 LV43973-009A
17 QLD0423-001
18 LV44634-001A
19 QQR1727-001
21 QAL0850-001
22 LV44707-001A
23 LV44509-002A
24 LV44507-001A
25 QAL0879-001
26 LV40846-056A
27 LV44514-002A
28 LV36690-003A
29 QAL0722-001
30 LV36657-002A
31 LV40847-017A
32 LY34998-001A
33 LV36764-001A
34 LV44591-001A
35 QAS0448-001
36 LV40846-057A
37 LV36828-001A
38 QYSDSF2008ZA
39 QYSDSF2008MA
39 QYSDSF2008NA
40 QYSDSF2008MA
41 QYSDSF2006ZA
42 QYSDSF2006ZA
43 QYSPSPU1725MA
44 QYSDSF2006ZA
45 LV43819-005A
46 LV40848-071A
48 LV36662-001A
49 LV36663-001A
50 LV44614-001A
51 LV44512-001A
52 LV44521-001A
53 GE40192-002A
54 QYWDL123525
56 LV36900-001A
56 LV36902-001A
57 QUQK05-4005BB-E
58 LV40848-073A
59 CB-PX9MAIND
3-4
Part Name Description
FRONT PANEL
FRONT PANEL
JVC BADGE
SPACER
MIDDLE ASSY
REAR COVER
REAR COVER
BATTERY COVER
ABSORBER
BATTERY
DETACH BUTTON
DETACH BUTTON
D.BUTTON HOLDER
SPACER(P)
D.BUTTON SPRING
ABSORBER (x3)
LED CASE
LCD EARTH PLATE
SHIELD TIGHT
LCD MODULE
FPC SHEET
FERRITE PLATE (x2)
TOUCH PANEL
CAUTION LABEL
T.PANEL SPACER
GPS SHIELD
GPS ANTENNA
SPACER(F)
FILTER (x2)
SHIELD PLATE
HDD
HDD HOLDER
SPACER(H)
GEL (x4)
WEIGHT
DOUBLE FACE
SPEAKER (x2)
SPACER(F) (x2)
DUMMY CARD
TAP SCREW M2 x 8mm(x4)
TAP SCREW M2 x 8mm(x4)
TAP SCREW M2 x 8mm(x4)
TAP SCREW M2 x 8mm(x2)
TAP SCREW M2 x 6mm(x2)
TAP SCREW M2 x 6mm(x4)
SCREW M1.7 x 2.5mm
TAP SCREW M2 x 6mm(x8)
SPECAL SCREW (x2)
SPACER(P)
CRADLE REAR
CRADLE PLATE
ABSORBER (x2)
DETACH LEVER
D.LEVER SPRING
SHAFT
SLIT WASHER 3.5mm/1.2mm x 0.25mm
NAME PLATE
NAME PLATE
FFC WIRE 40pin 5cm
SPACER(P)
MAIN BOARD
Block No. [M][1][M][M]
Local
PX9BJ,PX9BNJ
PX9SJ,PX9SNJ
PX9BJ,PX9BNJ
PX9SJ,PX9SNJ
PX9BJ,PX9BNJ
PX9SJ,PX9SNJ
PX9BJ,PX9BNJ
PX9SJ,PX9SNJ
PX9BJ,PX9BNJ
PX9SJ,PX9SNJ
