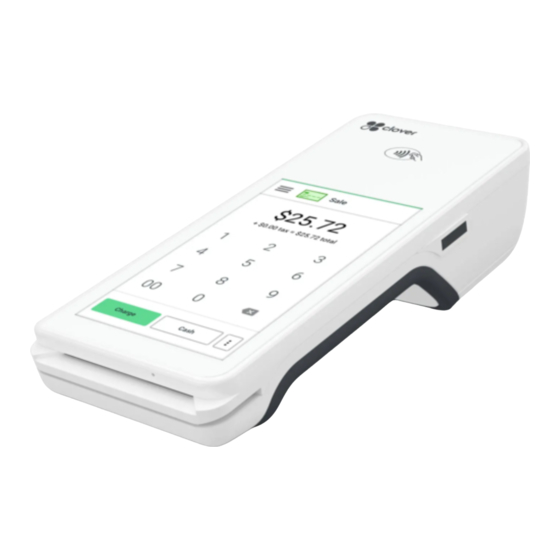

Bolt On Clover Flex
This guide provides information for getting started
with the Clover Flex.
Unboxing the Clover Flex
The Clover Flex includes:
> Clover Flex Quick-Start Guide
> Charging cradle
> Power cable
> Receipt paper
> Screwdriver
> Pre-installed SIM card
Setting Up the Clover Flex
After unboxing your Clover Flex, follow these steps to get everything setup:
1. Connect the power cable to the charging cradle.
2. Place the Clover Flex on the charging cradle.
3. Press and hold the power button until the Clover logo is displayed.
4. The device will turn on and display a welcome screen. Select a languge.
5. On the 'Connect to network' screen, configure the device's network connection:
a. To connect to a Wi-Fi network, tap 'Configure' next to the Wi-Fi option,
and select your network. PCI Compliance standards require the device to
connect to a secure, password protected network.
b. To connect to an LTE network, tap 'Configure' next to Mobile (SIM card).
The device displays 'Successfully Connected to Server' upon connecting.
6. Click 'Next' to proceed. The device will now download and install the Bolt App.
a. Once complete, the Bolt App launches and displays the Terminal
Registration screen.
7. Continue to Activation Workflow Clover Mini for more information.
Advertisement
Related Manuals for Clover Flex
Summary of Contents for Clover Flex
- Page 1 > Screwdriver > Pre-installed SIM card Setting Up the Clover Flex After unboxing your Clover Flex, follow these steps to get everything setup: 1. Connect the power cable to the charging cradle. 2. Place the Clover Flex on the charging cradle.
- Page 2 ID can be found in the Equipment Devices Detail model within CoPilot, and the last eight (8) digits can be provided to the merchant if needed. > Locate Merchant Record in CoPilot > Click Devices (under Equipment on left hand side) > Click on Bolt on Clover Device ID...
- Page 3 Activation Workflow 1. The device powers on and displays the Welcome to Clover Flex Setup Screen. The user selects their preferred language and presses Next. 2. The user selects Mobile (SIM card) or Wi-FI, completes any additional network configuration, and presses Next.
- Page 4 3. The device begins downloading the preconfigured apps for Bolt merchants. 4. The Bolt app launches and the user enters the Bolt Registration Key...
- Page 5 5. The user is informed when registration is complete, and presses the CONTINUE button 6. The device displays the Welcome screen.
-
Page 6: Connecting To The Internet
Connecting To The Internet The Clover Flex is capable of connecting to the Internet via Wi-Fi or Mobile (SIM card) Via Wi-Fi Access the Welcome screen (Merchant Mode). Select Internet Connection. Select Advanced Configuration. This will take you to the settings screen. - Page 7 Exiting Customer Mode When in Customer Mode, touch all four corners of the device screen simultaneously to access the Welcome screen (Merchant Mode).
- Page 8 Accessing the Admin Panel The Admin Panel is accessible from the Bolt Welcome screen (Merchant Mode), which is accessed by Exiting Customer Mode.
- Page 9 Checking Bolted Status Exit Customer Mode to access the Welcome screen and check whether the device status is Bolted or Unbolted. Determining the Serial Number (HSN) Access the Admin Panel in order to view the HSN.
- Page 10 Rebooting the Device The Clover Flex can be restarted through the UI, or manually using the device's power button: Via the Welcome Screen Have the merchant exit customer mode by tapping in all four corners of the screen at the same time.
