Martin U-115N/L Assembly Instructions

U-115N/L Middleweight Folding Easel

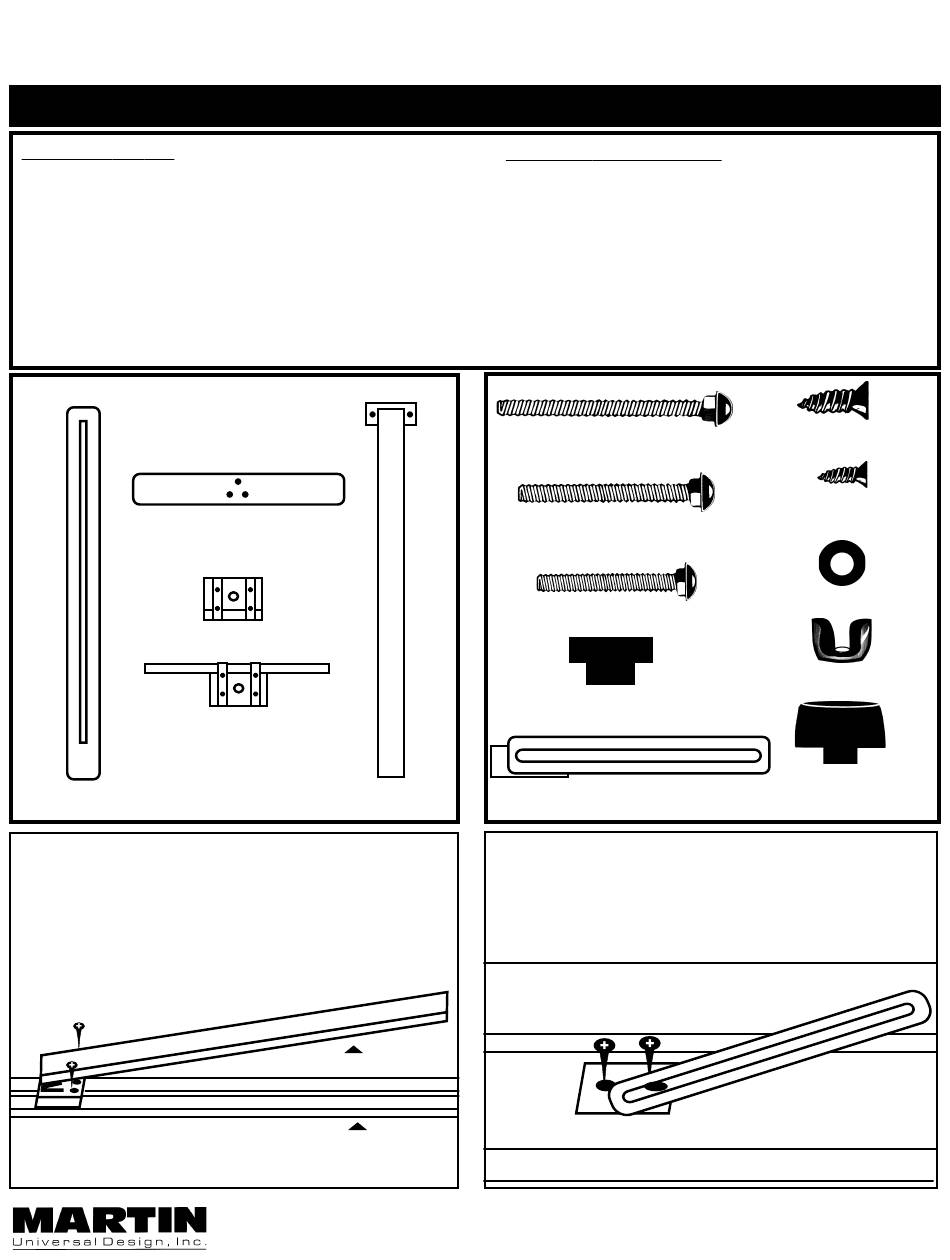

MAKE SURE CARTON CONTAINS THE FOLLOWING PARTS
WOOD PARTS
1 ea. ....... Channelled Center Column
1 ea. ....... Rear Spike Leg
........ with attached wooden block
1 ea. ....... Base Foot
1 ea. ....... Upper Canvas Support
1 ea. ....... Lower Canvas Support
Layout all wood parts
on hard flat floor
with all holes facing up.
Upper Canvas Support
Lower Canvas Support
Channelled
Center Column
STEP 1. Before Attaching Rear Spike Leg.
MAKE SURE rear leg is in this position before
attaching to Channelled Center Column.
Continue by aligning screw holes and proceed
by screwing in 2 ea. 1" wood screws [D] into
wood block and then into upper cross member.
ASSEMBLY INSTRUCTIONS
Base Foot
Rear spike leg w/
woodedn block
Rear Spike Leg
Channelled Center Column
Martin Universal Design, Inc. • 4444 Lawton Avenue, Detroit, MI 48150 USA
Tel:(313)895-0700 • Fax:(313)895-0709 • E-mail:Mudmfwdet@aol.com
HARDWARE PARTS
1 ea. ....... 3" Bolts [A]
2 ea. ....... 2½" Bolts [B]
3 ea. ....... 2" Bolts [C]
2 ea. ....... 1" Wood Screws [D]
2 ea. ....... ½" Wood Screws [E]
3 ea. ....... Washers [F]
3 ea. ....... Wingnuts [G]
2 ea. ....... Plastic Channel Guides [H]
2 ea. ....... Plastic Knobs [I]
1 ea. ....... Metal Stay [J]
[A] 1ea. - 3" Bolt
[B] 2ea. - 2½" Bolts
[C] 3ea. -2" Bolts
[H] Plastic Channel Guide
[J] 1ea. - Metal Stay
STEP 2. Attaching Metal Stay [J] to Easel
MAKE SURE Positioning of metal stay [J] is
CORRECT as shown below in FIG. 2.
Align holes in metal stay with pre-tapped holes in
center column. Attach using 2 ea. 1/2" wood
screws [E] and tighten.
Metal Stay in Correct Position
FIG 1
1" Wood Screws
½" Wood Screws
[F] 3 ea. - Washers
[G] 3 ea. - Wingnuts
2ea.
[D] 2ea.
[E] 2ea.
[I] 2ea.
Plastic Knobs
Channel in
center column
FIG 2
