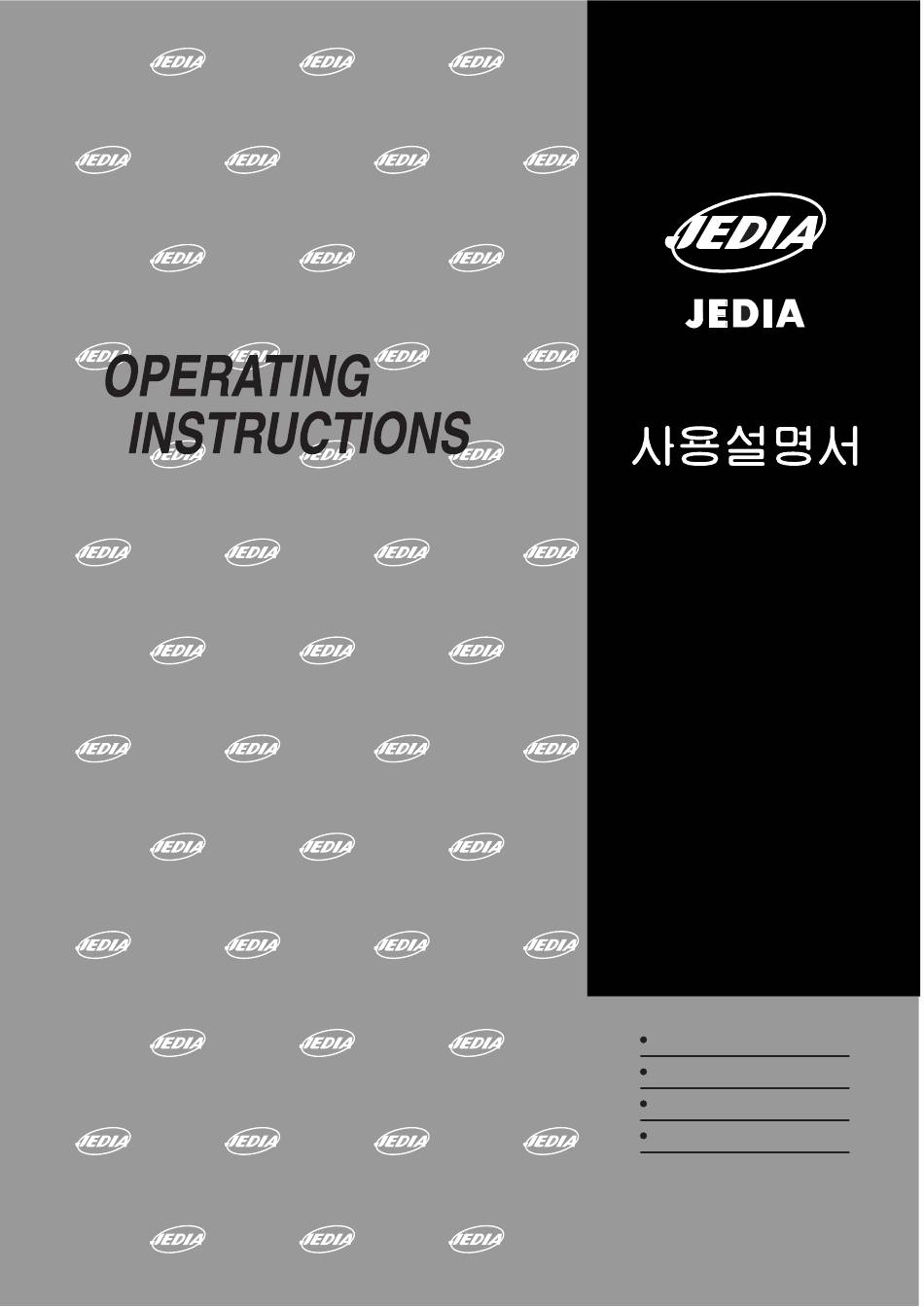

- Page 1 4 CHANNEL PROFESSIONAL POWER AMPLIFIER JFX- 425...
- Page 2 AUTION AVIS SAFETY INSTRUCTIONS FEATURES RONT PANEL CONTROLS EAR PANEL CONTROLS MP MODE CONFIGURATION DIAGRAM NSTALLATION LOCK DIAGRAM 4 CHANNEL PROFESSIONAL POWER AMPLIFIER Temp Temp Clip/Lim JFX425 Signal Power Mono Mono POWER CENTER LOW LEFT HIGH RIGHT HIGH X-OVER LEFT LOW RIGHT LOW...
- Page 3 안 전 사 항 SAFETY INSTRUCTIONS Read all safety instruction before operating the JFX- amplifiers. 제품을 운용하기전에 모든 안전사항을 읽어 보십시오. 1. Install equipment as follow conditions. 1. 이런 장소에 설치하여 주십시오. Install at the place, Not bending curved. 진동이나 경사가 심하지 않고 바닥이 평평한 장소. Do not install this apparatus in a confined space such as a book 통풍이...
- Page 4 RONT PANEL CONTROLS (전면기능) 1. LED 1. LED INDICATOR CLIP/LIM LED CLIP/LIM LED CLIP/LIM LED light with overdrive. 출력 신호에 정격출력을 초과하여 일그러짐이 발생하면 LED가 켜지게 SIGNAL LED 됩니다. SIGNAL LED light if the output signal exceeds 100mW. SIGNAL LED POWER LED 출력...
- Page 5 EAR PANEL CONTROLS (후면기능) 1. AC POWER 1. 교류 전원 공급 Please connect power plug after main power switch "off", 전원 코드를 꽂기 전에 전원 스위치를 꺼주시기 바랍니다. When fuse is blown-up please replace it, after disconnect 퓨즈를 교체할 경우에는 지정된 부품을 사용하여야 하며, power cord.
- Page 6 MP MODE CONFIGURATION DIAGRAM...
-
Page 8: Output Power
PECIFIATIONS (규격 및 성능) Models JFX- OUTPUT POWER 1kHz, 1% THD 8 ohms Stereo 165Wx4 4 ohms Stereo 255Wx4 8 ohms Bridge 500Wx2 OUTPUT POWER 1kHz, 0.1% THD 8 ohms Stereo 150Wx4 4 ohms Stereo 230Wx4 TECHNICAL & GENERAL Frequency response 20Hz ~ 20kHz +0/-0.5 dB at 4 ohms rated power Input Sensitivity/Impedance... - Page 9 (블럭도)
- Page 11 4M-OP201020...
