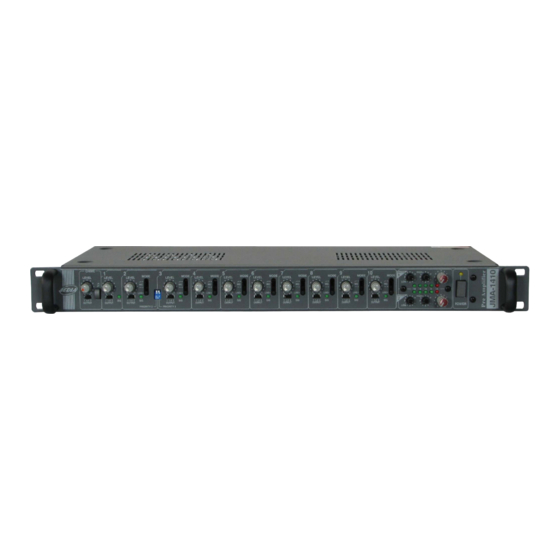

- Page 1 PRE AMPLIFIER JMA-1410 WWW.JEDIA.COM...
- Page 2 CHIME MASTER HIGH MODE MODE MODE MODE MODE MODE MODE MODE MODE LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LINE LINE LINE LINE LINE LINE LINE LINE LINE MASTER HIGH OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 안 전 사 항 Read all safety instruction before operating the JMA-1410 amplifier. 제품을 운용하기전에 모든 안전사항을 읽어 보십시오. 1. Install equipment as follow conditions. 1. 이런 장소에 설치하여 주십시오. Install at the place, not bending curved. 진동이나 경사가 심하지 않고 바닥이 평평한 장소. - Page 4 RONT PANEL CONTROLS (전면기능) CHIME MASTER HIGH MODE MODE MODE MODE MODE MODE MODE MODE MODE LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LINE LINE LINE LINE LINE LINE LINE LINE LINE MASTER HIGH OUTPUT OUTPUT OUTPUT OUTPUT OUTPUT...
- Page 5 RONT PANEL CONTROLS (전면기능) 4. INPUT 4~10 CONTROLS 4. INPUT 4 10 CONTROLS These make adjustment of MIC/LINE for input 4~10. 입력 4 10의 마이크/라인 신호레벨을 조정할 수 있으며 통상 조정위 Adjust output level so as not to tune "on" clip LED under two 0'clock. 치는...
- Page 6 Line 9 Line 8 Line 7 MIC INPUTS MIC/LINE INPUTS AC IN 50-60Hz MAX 9.9W P.T.T Inside AC/DC Fuse MODEL NO.: JMA-1410 CAUTION PRIORITY 120VAC 230VAC WARNING: SERIAL NO.: DC POWER TO REDUCE THE RISK OF FIRE OR ELECTRIC MIC INPUT...
-
Page 7: Cassette Deck
Line 9 Line 8 Line 7 MIC INPUTS MIC/LINE INPUTS AC IN 50-60Hz MAX 9.9W P.T.T Inside AC/DC Fuse MODEL NO.: JMA-1410 CAUTION PRIORITY 120VAC 230VAC DC POWER WARNING: SERIAL NO.: MIC INPUT TO REDUCE THE RISK OF FIRE OR ELECTRIC... - Page 8 PECIFICATIONS (규격 및 성능) TECHNICAL Input Sensitivity/Impedance MIC/LINE : -50dBu(2.45mV)/5K -10dBu(245mV)/5K LINE RCA IN : -10dBu(245mV)/10K UNBAL Output level/Impedance MASTER 1, 2 : NOR +4dBu(21.23V)/200 REC : NOR 0dBu(0.775mV)/10K UNBAL Frequency Respones Less Than -0.5dB(20Hz~20KHz) Signal to Noise Ratio MIC : MORE THAN 60dB LINE : MORE THAN 75dB MIC : LESS THAN 0.05% T.H.D...
-
Page 9: Lock Diagram
LOCK DIAGRAM (블럭도) - Page 10 4M-OP299090...
