KEYS AND THEIR FUNCTIONS
ADVANCE TO NEXT VARIABLE IN A PROGRAMMING SEQUENCE
QUICK PRESS the S4 key.
When you have chosen the variable you want for a particular portion of a programming sequence
QUICK PRESS the S4 key to set and advance to the next variable.
NOTE: As long as you press the S4 key, you will continue to cycle through the variables for
that sequence.
EXIT A PROGRAMMING SEQUENCE
QUICK PRESS the S5 key.
Once all variables of a programming sequence have been entered to your satisfaction,
PRESS the S5 key to exit the programming sequence and return to the initial main display.
ACTIVATE THE DISPLAY BACKLIGHT SYSTEM-
QUICK PRESS the S3 key.
Activate the backlight system at any time with a
remain active for a period of 5-seconds after the press of the
active, another key is pressed, the timer will be reset and the 5-second period will start again. This
will happen for as long as keys are pressed. This allows you to easily operate and program the
watch in low light situations.
NOTE: Excessive use of the backlight system will result in shorter battery life.
11
ALTIWARE SERIES
QUICK
QUICK PRESS of the S3 key. The backlight will
S3 key. If, while the backlight is

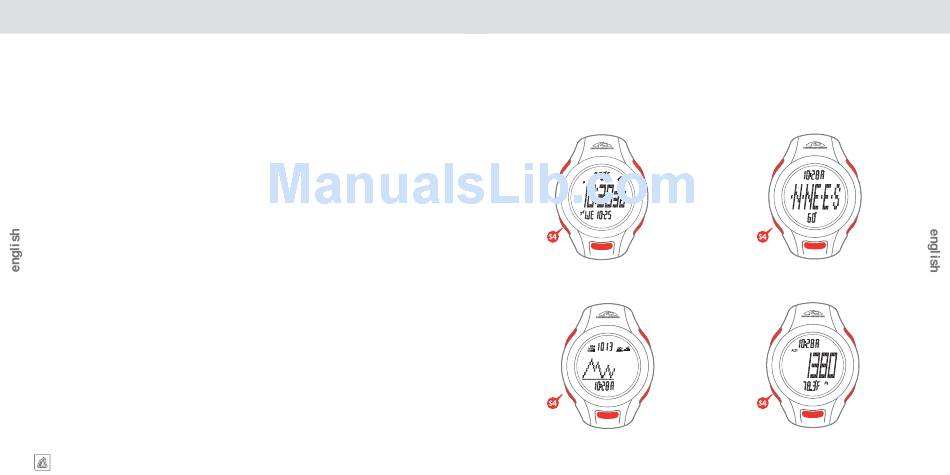

MODES OF OPERATION

MAIN DISPLAY MODES
Advance through the modes below using QUICK PRESSES
name of the mode will be displayed on screen for a period of 1.5 seconds before advancing automat-
ically to the mode's primary screen.
TIME
BAROMETER
of the S4 key. Upon entering a mode, the
COMPASS (Alterra only)
ALTIMETER
alterra/aerial
12
