Summary of Contents for HighGear Altis SS

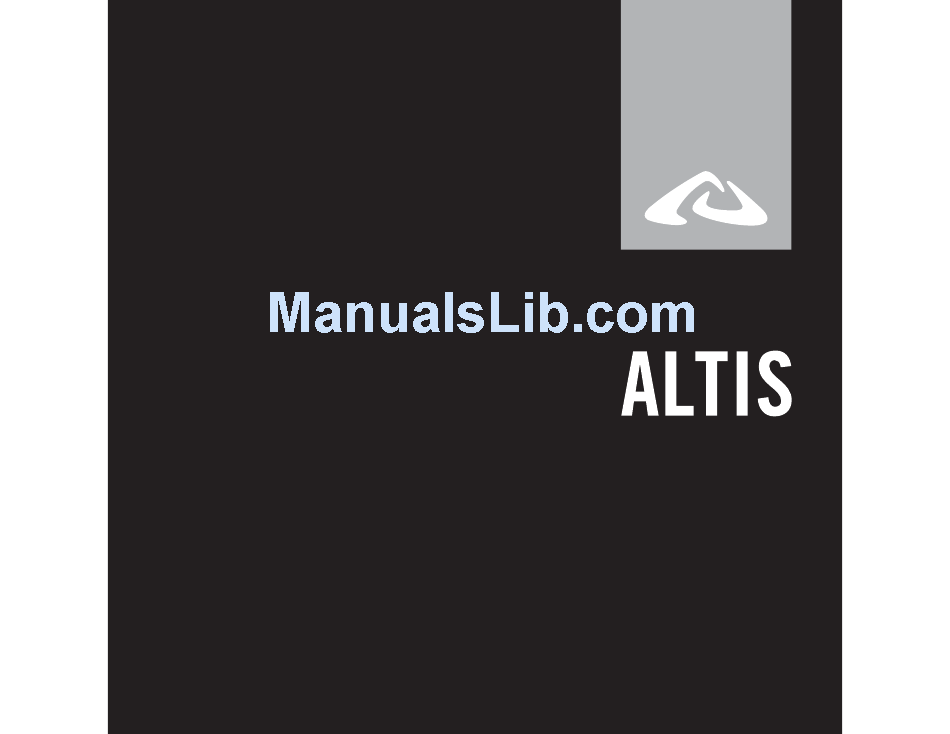

- Page 1 ENGLISH...
-
Page 2: Table Of Contents
DISPLAY SYMBOLS AND THEIR MEANINGS MAIN DISPLAY MODES SETTING THE WATCH FUNCTIONS SETTING TIME, DATE & DISPLAY UNITS CALIBRATING THE COMPASS SETTING BAROMETRIC PRESSURE SETTING ALTIMETER SETTING DAILY ALARM TABLE OF CONTENTS OPERATING THE WATCH TIME MODE COMPASS MODE BAROMETRIC MODE... -
Page 3: How To Use This Manual
The unit should not be worn while snorkeling or scuba diving as these activities will damage the altimeter sensor. Care should be taken not to press any keys while the unit is wet or submerged as this can force CAUTION: moisture past the key seals and damage the unit. -
Page 4: Watch Functions
COMPASS • Digital Compass • Adjustable Declination ALTIMETER • Digital Altimeter • Working Range: -2296 ft to 29520 ft (-700m to 9000m) • Rate of Ascent and Descent • Altitude Alarm • 20 Log Book Files with Log Date, Average ascent and descent, Total ascent and... -
Page 5: Keys And Their Functions
KEYS AND THEIR FUNCTIONS The ALTIS has 5 individual keys. Each key has several functions. The drawing identifies the keys and their names as used in this manual. SET KEY EL/LIGHT KEY MODE KEY KEYS AND THEIR FUNCTIONS MODE KEY •... -
Page 6: Display Symbols And Their Meanings
DAILY ALARM Daily Alarm is active KEY CHIME Key Chime is active LOW BATTERY INDICATOR Battery needs to be replaced DISPLAY SYMBOLS AND THEIR MEANINGS ALTIMETER ICONS symbol description what it means User is ascending ASCENDING ARROW User is descending... -
Page 7: Main Display Modes
MAIN DISPLAY MODES MAIN DISPLAY MODES The ALTIS has 8 main display modes. key. ADVANCE THROUGH MAIN MODES PRESSING MODE key. SCROLL THROUGH SECONDARY MODES PRESSING STOP TIME COMPASS BAROMETER ALTIMETER ALARM CHRONOGRAPH SKI CHRONO DATA... -
Page 8: Setting The Watch Functions
PRESS & HOLD ENTER SETTING SEQUENCE Hour, Minutes, Seconds, Month, Day and Year. ADJUST key to PRESS EXIT SETTING SEQUENCE display units (12/24 hr., Altimeter, Barometer, Temperature, etc.) are not NOTE: independent of Time Zone selected. key. MODE PRESSING key. MODE... -
Page 9: Calibrating The Compass
SET TING THE WATCH FUNCTIONS CALIBRATING THE COMPASS The ALTIS is equipped with a highly accurate digital magnetic compass with reading in one-degree increments. The compass can be adjusted to compensate for magnetic declination corresponding to the area of use. The compass must be calibrated on a regular basis. -
Page 10: Setting Barometric Pressure
MODE The ALTIS is equipped with 6 Altimeter sub modes. Scroll through sub modes by pressing the Stop key. You may enter the Altimeter Setting Sequence from any sub mode except the TEMP/Altitude/TIME display. (See page 29 "Operating the Watch" for a detailed explanation of submodes.) - Page 11 SETTING ALTIMETER (continued) The ALTIS is equipped with three altimeter Preset Locations. Preset Locations allow you to pre-program 3 known altitudes into the watch’s memory. These presets allow you to easily compensate for altitude drift caused by changes in atmospheric pressure and are useful in the daily calibration process.
- Page 12 Advance to set designated altitude by PRESSING MODE key. ALTITUDE PRESSING START/SPLIT STOP Press & Hold the Start/Split or Stop keys to fast scroll altimeter NOTE: setting. Once Altitude is set, key to return to Altitude Alarm ON/ PRESS MODE OFF window.
-
Page 13: Setting Daily Alarm
SET TING THE WATCH FUNCTIONS SETTING DAILY ALARM The ALTIS is equipped with 2 individual daily alarms. Setting Daily Alarms In Alarm Mode, (AL-1 or AL-2 in the upper SELECT ALARM 1 OR ALARM 2 display line) by key. PRESSING STOP key. -
Page 14: Compass Mode
OPERATING THE WATCH COMPASS MODE There is only one screen display available in the Compass mode. The current heading in quarter cardinal points is shown as a rotating scale across the center line and the bottom line displays the current heading in degrees. REACTIVATING COMPASS To save power, the compass feature of the ALTIS unit remains active for a period of 30 seconds. - Page 15 OPERATING THE WATCH BAROMETRIC PRESSURE DIFFERENCE MODE The ALTIS allows you to track changes in Barometric Pressure in real time. When Barometric Pressure Difference is active: Top Line: Weather Icon/Mode Indicator (DIFF) Center Line: Change in Barometric Pressure MSL Change in Local Unadjusted (ABSOLUTE) Barometric Pressure Bottom Line: Time of Day To record change in Barometric Pressure:...
-
Page 16: Altimeter Mode
ALTITUDE DIFFERENTIAL MODE (see pg 32) DATA LOG The ALTIS records and stores up to 20 Altimeter Data Logs. Stored information includes date, total vertical ascent/descent, average rate of ascent/descent, and total time. When Data Log is active: GRAPHICAL ALTITUDE DISPLAY... - Page 17 OPERATING THE WATCH DATA LOG (continued) To record a Data Log: In the Data Log screen, key. PRESS & HOLD START/SPLIT will appear in upper display line. The center display DATA LOG NUMBER line will flash until the active Data Log window START CONTINUE HOLDING appears (approximately 2 sec.).
-
Page 18: Log Book/Data Recall Mode
Bottom Line: Time line (from current) of Altimeter reading OPERATING THE WATCH LOG BOOK/DATA RECALL MODE Reviewing Altimeter Data Logs Starting in the Data Log screen: The watch will automatically display the most recent Altimeter Log File recorded with LOG NUMBER and lower lines. SCROLL PRESS... -
Page 19: Ski Chronograph Mode
OPERATING THE WATCH SKI CHRONOGRAPH The ALTIS is equipped with a timing system which is started at the top of a vertical drop (such as a ski run) and will track the time of your descent back to the base, stopping at a preset base altitude (within 35 ft/10m to allow for altitude drift due to barometric pressure changes). -
Page 20: Chronograph Mode
OPERATING THE WATCH CHRONOGRAPH MODE The ALTIS features a sophisticated 24-hour, 50-lap digital chronograph. The chronograph has a resolution of 0.01 seconds for the first hour (1-second resolution after that) and displays both lap time and total time on screen simultaneously. OPERATING THE CHRONOGRAPH In chronograph mode: key. -
Page 21: Specifications And Ranges
While the estimated life of a fresh battery in the unit is approximately one year, this can be shortened considerably if the compass, altimeter or EL systems of the unit are used extensively. Whenever you are experiencing issues related to the function of the unit it is recommended that you install a fresh battery as a first course of action, especially if it has been more than a half a year since the last time the battery was replaced. -
Page 22: Care And Maintenance
Heavy usage of the Altimeter, Compass or Backlight system may NOTE: significantly reduce battery life. A blank display or inaccurate altimeter or compass readings are indications that the battery is NOTE: getting weak and should be replaced. CARE AND MAINTENANCE REPLACING THE WATCH BATTERY Remove battery door using a coin.
