- Page 1 AXIO series 日本語 中文 ENGLISH FRANÇAIS ESPAÑOL...

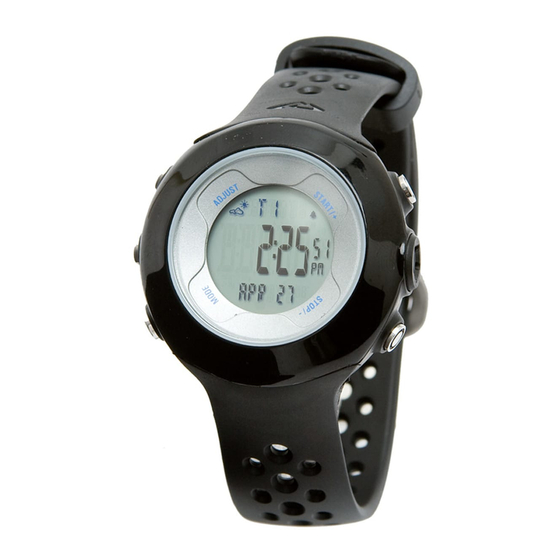

- Page 2 This series was specifically designed for consumers looking for a light-weight, straight forward altimeter for their outdoor adventures. The Axio series has many of the same features available in our other altimeters, but we have stream- lined the Axio series to bring you a full-featured altimeter without the frustration of multiple modes and confusing settings.
-
Page 3: Table Of Contents
Table of Contents FEATURES AND SPECIFICATIONS WARNINGS AND CAUTIONS AXIO SERIES MODE BUTTON FUNCTIONS 10-11 TIME MODE SETTINGS 12-13 Selecting a TIME ZONE Changing views in TIME mode Setting TIME on your watch COMPASS MODE (AXIO Max Only) 14-16 Display... -
Page 4: Features And Specifications
Features of the AXIO Series Glass Re-Enforced Nylon Case Mineral Glass Lens 5 ATM / 5 Bar Water Resistance Comfortable and Durable Strap Stainless Steel Buttons EL Backlight Consumer Replaceable Battery 2 Time Zones 12 / 24 Hour Time Display... - Page 5 Specifications and Ranges GENERAL Water resistance 5ATM ALTIMETER Range -702 to +9158m / -2305 to +30,045ft Resolution 1m / 1f THERMOMETER Range -10 to +50C / +14 to +122F Resolution 0.1C/0.1F COMPASS Resolution of 1 degree Rotating digital bezel in quarter cardinal points BAROMETER Range 300 to 1100mbar/hPa or (8.86 inHg to 32.48 inHg) Resolution 1mbar/hPa or 0.01InHg...
-
Page 6: Warnings And Cautions
Product Care Cautions, Notes and Warnings CAUTION: Your instrument is designed to be water resistant to a static pressure of 164 feet / 50 meters / 5 Atmospheres / 5 Bar. This unit is suited for surface swimming and clear-water showering or bathing. - Page 7 CAUTION: Exposure to strong magnetic fields WILL cause the compass unit to malfunction and may even permanently damage the compass sensor. Keep the unit away from magnetic sources. NEVER attempt to disassemble or service the unit. This will void any warranty. Detailed warranty information is available online at www.highgear.com or www.techtrail.com...
-
Page 8: Axio Series Mode
AXIO Series Modes Modes are listed in sequential order as they appear on the user interface. TIME Mode 12 / 24 Hour Time Display 2 Time Zones Automatic Calendar (2008 to 2057) Month / Day Display Weekday Display Local Altitude Display... - Page 9 AXIO Series Modes CHRONOGRAPH Mode 100 Hour Chronograph 1/100 Second Resolution Time Display Local Altitude Display DATA Mode 10 Run Memory Starting Altitude Record Accumulated Altitude Record Maximum Altitude Record Total Exercise Time Record Alarm Mode Daily Alarm 1 Daily Alarm 2...
-
Page 10: Button Functions
Button Functions 1. ADJUST Button • Press and hold for 3 seconds to enter mode settings (except in CHRON and DATA modes). • Exit settings at any time. • Reset Chronograph without saving. • Press and hold for 3 seconds to clear last run from DATA mode. • Press and hold for 6 seconds to clear ALL runs from DATA mode. 2. MODE Button • Press once to toggle through mode selections. • Move to next setting during adjustment in any mode. 3. START / + Button ( RECALL / + ) NOTE: START / + is labeled as RECALL / + on AXIO max. • Press to view alternate time zone in TIME mode. - Page 11 Button Functions AXIO / AXIO MINI AXIO MAX...
-
Page 12: Time Mode Settings
TIME Mode Settings NOTE: START / + is labeled as RECALL / + on AXIO max. NOTE: STOP / - is labeled as VIEW / - on AXIO max. Selecting a TIME ZONE 1. Default value is TIME ZONE 1. 2. -
Page 13: Setting Time On Your Watch
TIME Mode Settings Setting TIME on your watch 1. Use START / + key to select the desired time zone. 2. Press and hold ADJUST for 3 seconds to begin setting the time. 3. Set HOUR first by using START / + and STOP / - to change the value. 4. -
Page 14: Compass Mode (Axio Max Only)
COMPASS Mode Display ( AXIO max only ) Viewing COMPASS mode 1. The four dots on the outside of the display point to true north. The single dot is the north point of the arrow. The three dots represent the south end of the arrow. 2. -
Page 15: Calibration
COMPASS Mode Calibration ( AXIO max only ) DAILY USE around household appliances and magnetic fields will affect the compass accuracy. BE SURE to calibrate your digital compass often - especially before hiking or orienteering adventures. We do not want to lose you on the trail. NOTE: When orienteering, always bring an analog compass to ensure multiple direction readings and accuracy. -
Page 16: Settings
COMPASS mode settings ( AXIO max only ) What is Magnetic Declination? A magnetic compass points to the earth’s magnetic north pole. Depending on your location, this may differ from True North. Adjusting the magnetic declination allows you to compensate for this variation. Magnetic declination for an area can be found on topographical maps. -
Page 17: Altimeter / Temperature / Barometer
ALTIMETER / TEMPERATURE / BAROMETER Views NOTE: START / + is labeled as RECALL / + on AXIO max. NOTE: STOP / - is labeled as VIEW / - on AXIO max. ALTI-BARO Mode Views 1. The time of the selected TIME ZONE is always displayed in the upper display. 2. -
Page 18: Units
ALTIMETER / TEMPERATURE / BAROMETER Units Setting Altitude, Temperature and Barometer Units Within ALTI-BARO mode; the altitude, temperature and barometer units can only be modified in certain views. NOTE: START / + is labeled as RECALL / + on AXIO max. NOTE: STOP / - is labeled as VIEW / - on AXIO max. -
Page 19: Calibrating Altitude And Barometer Readings
ALTIMETER / BAROMETER Units NOTE: Always use an accurate source when adjusting ALTI-BARO mode. If you set any of the units incorrectly or extremely far away from the actual readings, all measurements in this mode will be highly inaccurate. NOTE: Never adjust the ALTI-BARO inside a pressurized environment like an airplane, air condi- tioned or heated room. -
Page 20: Hour Weather Forecast
12-Hour Weather Forecast Icons The weather forecast icon will be updated automatically every 12 hours. The weather forecast icon will appear in the following mode views: TIME mode - MONTH / DAY view and DAY OF WEEK view ALTI-BARO mode - TIME / Sea-Level BAROMETER / Absolute BAROMETER view NOTE: The weather forecast cannot be active while altitude is displayed on the watch. -
Page 21: Chronograph Mode
CHRONOGRAPH Mode NOTE: START / + is labeled as RECALL / + on AXIO max. NOTE: STOP / - is labeled as VIEW / - on AXIO max. Chronograph Display 1. Current time of day is displayed in the upper display. 2. -
Page 22: Data Mode
DATA Mode NOTE: START / + is labeled as RECALL / + on AXIO max. NOTE: STOP / - is labeled as VIEW / - on AXIO max. Information stored in DATA mode 1. Starting Local Altitude of exercise. 2. Total Accumulated Altitude Gain during exercise. The graph illustrates a total accumulated altitude of 7000 feet. -
Page 23: Alarm Descriptions
Alarm Descriptions Within ALARM mode, press STOP / - to toggle through the multiple alarms in the following order: Daily Alarm 1, Daily Alarm 2, Rest Alarm, Hydration Alarm, Altitude Alarm 1, Altitude Alarm 2 Daily Alarms 1 and 2 1. - Page 24 Alarm Descriptions Altitude Alarms 1 and 2 1. User sets desired altitude for alarm to sound. 2. The alarm will sound continuously for 20 seconds once desired altitude is reached. 3. Press any button to disable the alarm sound during the 20 second cycle. 4.
-
Page 25: Settings Alarm
Setting Alarms NOTE: START / + is labeled as RECALL / + on AXIO max. NOTE: STOP / - is labeled as VIEW / - on AXIO max. Setting the Hydration Alarm 1. Use the STOP / - key to select the hydration alarm. 2. -
Page 26: Battery Information And Descriptions
Battery Information and Replacement AXIO mini Battery: CR1632 3V Lithium AXIO Battery: CR2032 3V Lithium AXIO max Battery: CR2032 3V Lithium AXIO mini and AXIO Battery Life: 2 to 2.5 years depending on use of the altimeter and backlight. AXIO max Battery Life: 1.5 to 2 years depending on use of the altimeter, backlight and digital compass. -
Page 27: Troubleshooting
Troubleshooting The unit is a very sensitive and sophisticated instrument. If properly cared for it should last and remain accurate for many years. However, from time to time problems may happen. It has been our experience that the majority of the problems seen by consumers with products such as these are related to dead or dying batteries.
