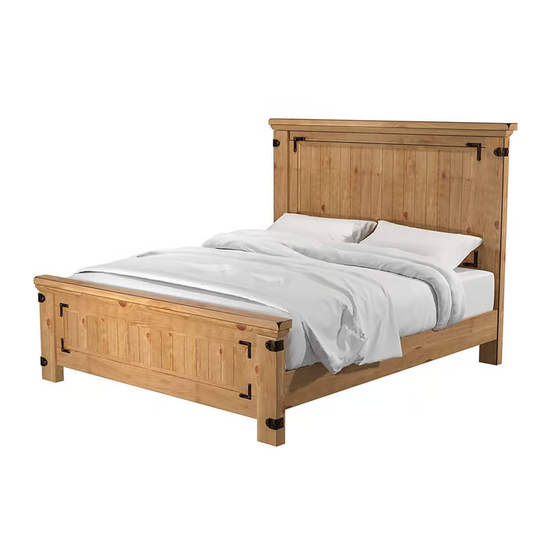

MODEL #
CM7449 E K
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7449EK
Summary of Contents for Furniture of America CM7449EK

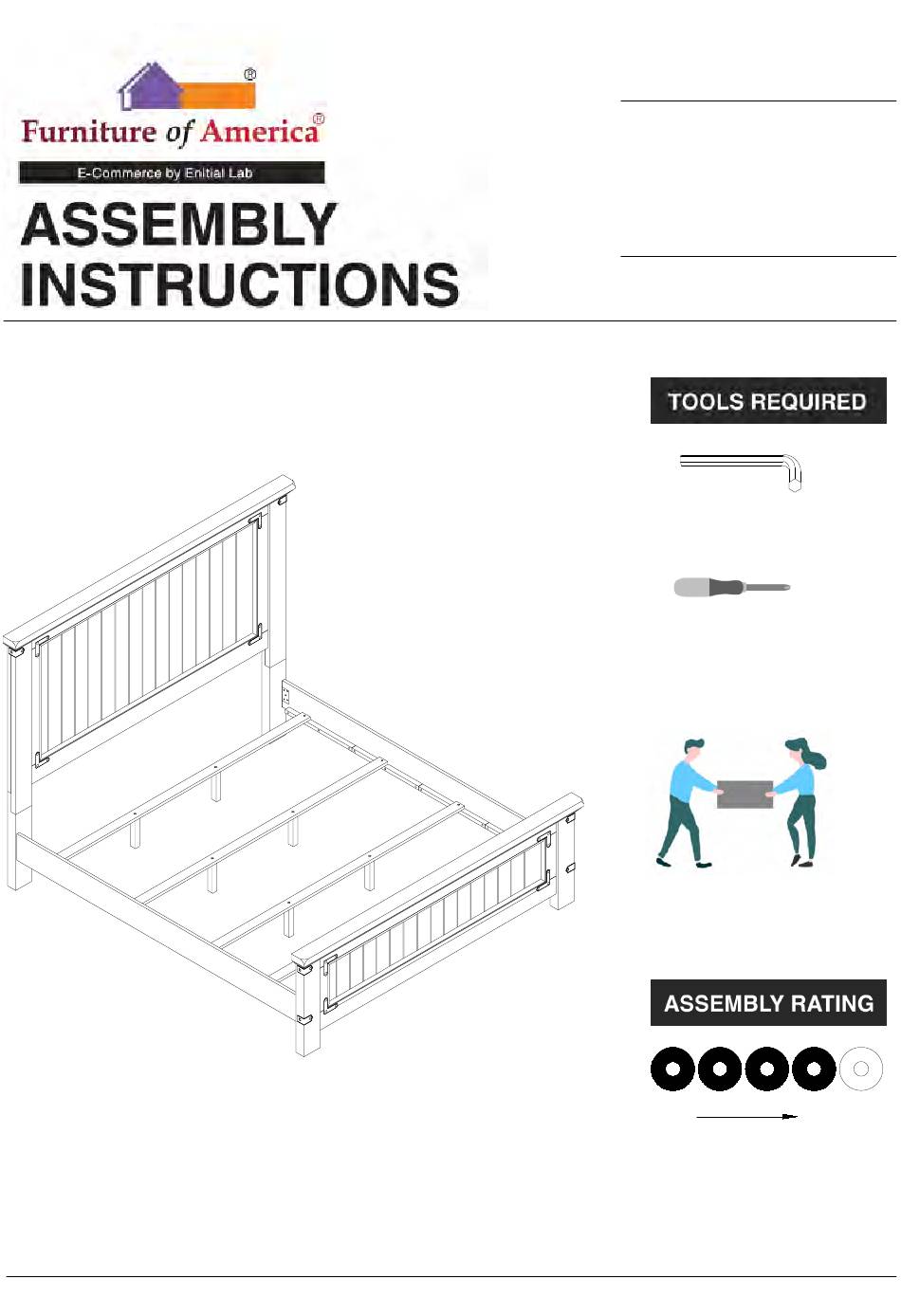

- Page 1 MODEL # CM7449 E K Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 CM7449EK PARTS #1 1pc #2 2pcs #3 1pc Headboard Headboard Leg(L&R) Footboard #4 2pcs #5 8pcs #6 4pcs (Ø1/4") Side rail Support leg Slat HARDWARE #C 8pcs #A 8pcs #B 8pcs Lock Washer Ø1/4" Bolt Ø1/4" x 2" Flat Washer Ø1/4"...
- Page 6 CM7449EK is packed in 3 cases Carton Disignation Part Hardware #A x 8pcs Headboard #B x 8pcs CM7449K-HB #C x 8pcs #D x 1pc Headboard Leg (L&R) CM7449K-FB Footboard #E x 8pcs Siderail CM7449EK-R Support leg Slat 6 / 8...
- Page 7 ASSEMBLY INSTRUCTIONS Align HB legs (#2R/L) to the headboard (#1), Part #1 x1pc then secure by using bolts (#A) with washers (#B,C). Part #2 x2pcs Hardware #A x8 pcs Hardware #B x8 pcs Hardware #C x8 pcs Align and hook the side rails (#4) to the headboard (#1) and footboard (#3).
- Page 8 ASSEMBLY INSTRUCTIONS Attach support legs (#5) to the slats (#6). Part #5 x8pcs Part #6 x4pcs Hardware #E x8 pcs Align slats (#6) to the side rails (#4), then secure by using screws (#E). 8 / 8...
