Summary of Contents for ZOpid HF-ZG056B

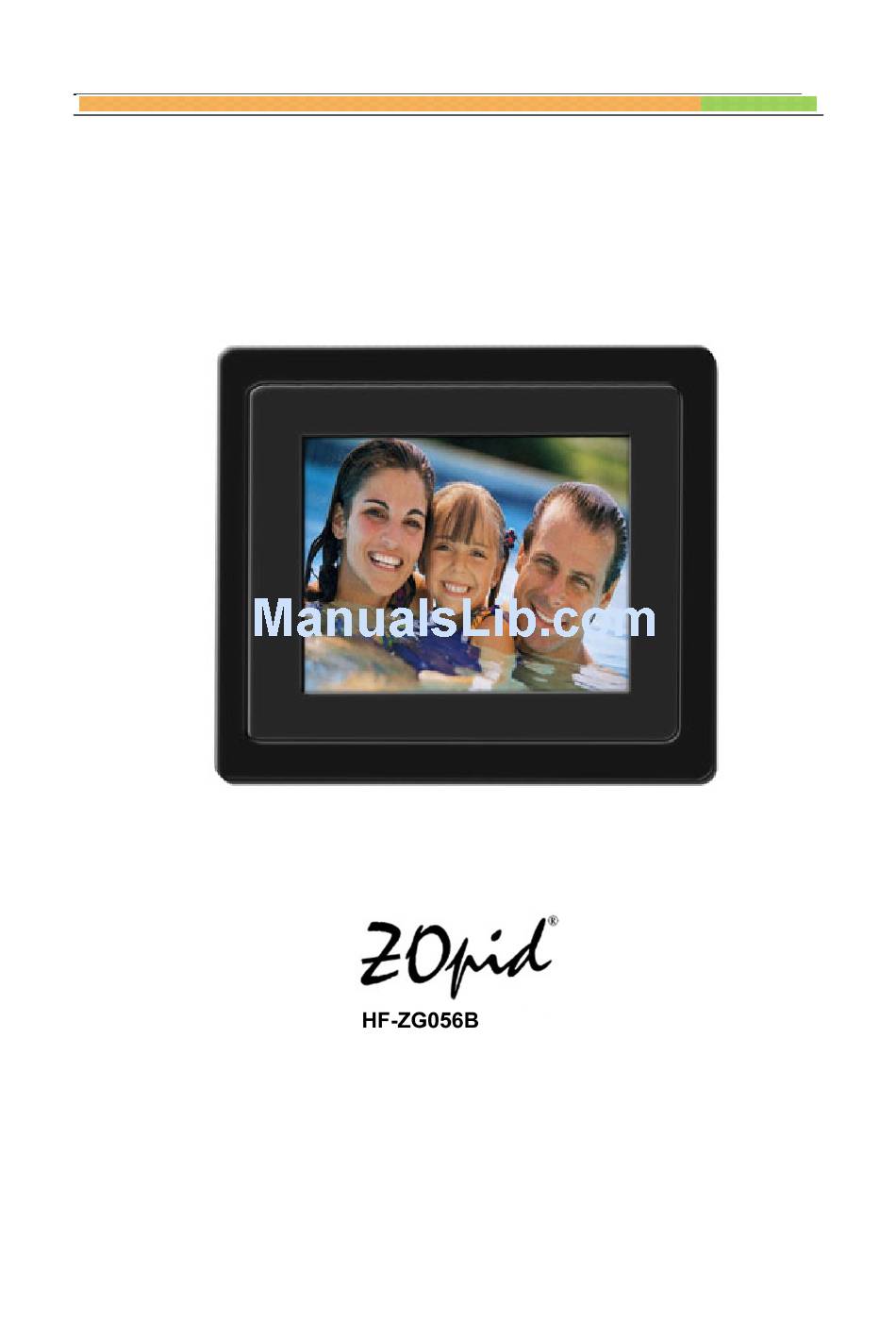

- Page 1 5.6" MULTIMEDIAL DIGITAL PHOTO FRAME...
-
Page 2: Table Of Contents
CE Declaration of Conformity Federal Communications Commission (FCC) Notice (U.S. and Canada Only) Commission Fédérale de la Communication (FCC Déclaration) End-of-Life Disposal Box Contents: Digital photo frame Remote control Table of Contents 12 Volt dc, 1.2 A power adapter User Guide... - Page 3 Introduction Congratulations on your purchase of our Digital Picture Frame. Model No.: HF-ZG056B. Before operating the unit, please read this manual thoroughly, and retain it for future reference. This manual will help you use many of the exciting and useful features that will make your Digital Picture Frame viewing more enjoyable.
-
Page 4: Remote Control Buttons
Remote control: REMOTE CONTROL BUTTONS... -
Page 5: Power Up
Button Power SETUP Time Music Photo Video u/II Enter VOL +/- Arrows EXIT/¢ SLIDE WER UP 1. Connect AC-DC adapter to the DC socket. 2. Press the power switch to the ON position. The unit displays the opening screen. Description Turn on/off To activate OSD to change settings Display the time/ Calendar... -
Page 6: Favourite
1. Insert a memory card or USB driver that contains JPG image files to the card slot or USB port respectively. 2. Turn the digital photo frame ON. Operate by using the remote control At the opening screen select CARD or USB you had inserted,... -
Page 7: Play Video
1. Insert memory card or USB driver that contains video files to the card slot or USB socket respectively. 2. Turn the digital photo frame ON. Operate by using the remote control At the opening screen select CARD or USB you had inserted, Press the ENTER button, select the VIDEO icon or press the VIDEO key, then a list of available file names will displays on the right of screen. -
Page 8: User Settings
USER SETTINGS Entering and leaving the SETUP menu: (ii) Press the setup button on the remote control or the SETUP key at the rear of the unit to enter, press again to leave. Entering and leaving the sub-menu and selecting options: Navigate with the UP, DOWN, LEFT and RIGHT buttons on the remote or the buttons on the photo frame. -
Page 9: System Setup
SYSTEM SETUP OSD LANGUAGE: English, German, French, Portuguese. DEFAULT: RESTORE – Restore factory settings... -
Page 10: Photo Setup
S/W VERSION: PHOTO SETUP EFFECT: OFF/WIPE BOTTOM/WIPE LEFT/WIPE LEFT/WIP RIGHT LEFT TOP/RIGHT TOP/LEFT BOTTOM/RIGHT BOTTOM EXTEND FROM H/EXTEND FROM V/COMPRESS TO H COMPRESS TO V/WINDOW H/WINDOW V/WIPE TO CENTRE RANDOM/WIPE TOP FREQUENCY: Time between photos 5 SECONDS/10 SECONDS/30 SECONDS/1 MINUTE/ 30 MINUTE... - Page 11 Music: Display music information: file name, size, and resolution. ON/OFF JPG INFO: Displays photo information: file name, size, and resolution. ON/OFF PLAY MODE: Cycles through photos in sequence or in a completely random manner NORMAL/RANDOM...
-
Page 12: Picture Setup (Factory Settings In Brackets)
(factory settings in brackets) PICTURE SETUP BRIGHTNESS – 12 levels (6) CONTRAST – 12 levels (6) HUE – 12 levels, -6 to +6 (0) SATURATION – 12 levels (0) SHARPNESS – 8 levels (0) CLOCK SETUP DATE SETUP: sets date 2000/01/08 TIME SETUP: sets real time 17:30... - Page 13 TECHNICAL SPECIFICATIONS Support Cards/USB Supported file formats LCD Display Resolution Memory Stick®(MS), Multi-Media Card™(MMC), Secure Digital™ (SD), USB Pen Driver JPEG, BMP, MP3, MP4: 5.6” 320 x 240...
-
Page 14: Frequently Asked Questions
Viewing Modes Image Effects USB Host (USB Port) Power Input REMARKS: 1) Unit does not support SDHC cards 2) Image information other than in languages supported may display incorrectly. 3) On power up the screen could take up to 5 seconds to become active. -
Page 15: Maintenance And Precaution
2) Q: If I keep showing the same photo for a long time, will it damage the LCD screen? A: No. The Digital Picture Frame can display the same photo continuously for a long time. But it is recommended not to show the same picture continuously for more than 1 month. -
Page 16: Cleaning The Lcd Screen
Keep your Digital Picture Frames out of sunlight. Direct sunlight may cause damage. Do not open the case of the Digital Picture Frame. There is a risk of electric shock, and there are no user serviceable parts inside. Opening the case will void your warranty. Do not use the Digital Picture Frame if conditions could allow condensation to occur, or damage may result. -
Page 17: Replace The Battery Of The Remote Control
Replace the battery of the remote control:... -
Page 18: Regulatory Compliance
CE Declaration of Conformity Attestation RSH05080201-1, RSH06080201-2 We declare under our responsibility that the product is in conformity with the following standards EN55022:1998 (Radio Disturbance requirement of Information Technology Equipment) EN55024:1998 (Immunity requirement of Information Technology Equipment) EN61000-3-2:2000 (Limits for Harmonic Current Emission) As assessed by the following applications standards: 89/336/EEC Electromagnetic Compatibility This Product is produced by a manufacturing organization on... -
Page 19: Commission Fédérale De La Communication (Fcc Déclaration)
equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - Page 20 protection raisonnable contre les interférences nuisibles dans le cadre d'une installation résidentielle. Cet appareil produit, utilise et peut émettre des hyperfréquences qui, si l'appareil n'est pas installé et utilisé selon les consignes données, peuvent causer des interférences nuisibles aux communications radio. Cependant, rien ne peut garantir l'absence d'interférences dans le cadre d'une installation particulière.
-
Page 21: End-Of-Life Disposal
End-of-Life Disposal Your new product contains materials that can be recycled and reused. Specialized companies can recycle your product in order to reuse components of the product and to minimize waste. Please find out about the local regulations on how to dispose of your old unit from your local municipality.
