Summary of Contents for Coast-Air CEG-81A

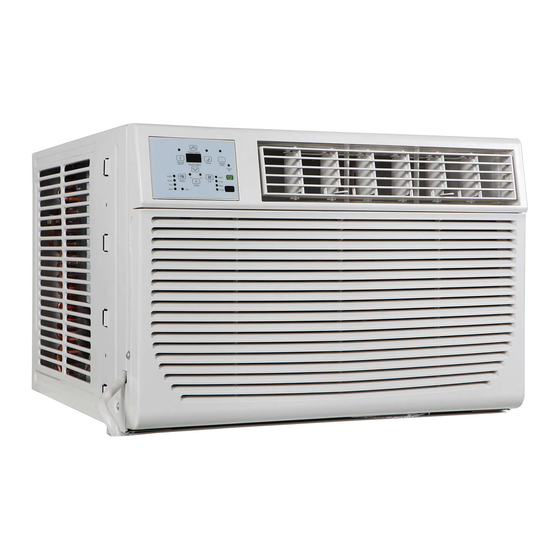

- Page 1 Installation and Operation Instruction Manual Room Air Conditioner CEG-81A CEG-123A www.coastair-ac.com...
-
Page 2: Important Safety Instructions
Installation and Operation Instruction Manual CEG-81A & CEG-123A IMPORTANT SAFETY INSTRUCTIONS READ THIS MANUAL Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. - Page 3 Installation and Operation Instruction Manual CEG-81A & CEG-123A IMPORTANT SAFETY INSTRUCTIONS CAUTION When the air filter is to be Do not put a pet or house plant Ventilate the room well when where it will be exposed to direct used together with a stove, etc.
-
Page 4: Operation Of Cur Rent Device
Installation and Operation Instruction Manual CEG-81A & CEG-123A IMPORTANT SAFETY INSTRUCTIONS WARNING NOTE: The power supply cord with this air For Your Safety Do not store or use gasoline or other flammable vapors and liquids in the vicinity conditioner contains a current detection of this or any other appliance. -
Page 5: Installation Instructions
Installation and Operation Instruction Manual CEG-81A & CEG-123A INSTALLATION INSTRUCTIONS CAUTION To avoid risk of personal injury, property damage, or product damage due to the weight of this device and sharp edges that may be exposed: Air conditioners covered in this manual pose an excessive weight hazard. Two or more people are needed to move and install the unit. -
Page 6: Location Requirements
Installation and Operation Instruction Manual CEG-81A & CEG-123A INSTALLATION INSTRUCTIONS NOTE: Installation parts are supplied for double-hung windows up to 36" (91.4 cm) wide. Do not use any screws other than those specified here. Location Requirements: IMPORTANT:Observe all governing codes and ordinances. Check the location where air conditioner will be installed.Proper installation is your responsibility. - Page 7 Installation and Operation Instruction Manual CEG-81A & CEG-123A INSTALLATION INSTRUCTIONS Remove packaging material: FIG.3 FIG.4 FIG.5 NOTE: Handle the air conditioner gently. Be sure your air conditioner cabinet does not fall out of the opening during installation or removal. The place where the power cord exits the air conditoner should be no more than 4 ft (122 cm) from a grounded 3 prong outlet.
-
Page 8: Attach Side Curtains To Window Frame
Installation and Operation Instruction Manual CEG-81A & CEG-123A INSTALLATION INSTRUCTIONS Attach foam adhesive seal: Attach foam adhesive seal along the bottom of the curtain bottom channel (FIG.8). FIG.8 FIG.9 FIG.10 Angle of cabinet bracket securely seated on edge of inner sill. -
Page 9: Complete Installation
Installation and Operation Instruction Manual CEG-81A & CEG-123A INSTALLATION INSTRUCTIONS Complete Installation: 1. Insert window sash seal behind the top of the lower window sash and against the glass of the upper window (FIG.15). FIG.15 2. Place the window-lock bracket on top of lower window and against upper window sash on right side of the window (FIG.15). - Page 10 Installation and Operation Instruction Manual CEG-81A & CEG-123A INSTALLATION INSTRUCTIONS NOTE: FIG.21 Dimension for depth depends on wall thickness and type of molding (FIG.21). A. Outside width Do not block louvers in air conditioner cabinet. B. Outside height Use 1 (2.5 cm) or thicker lumber for wood frame.
-
Page 11: Normal Sounds
Installation and Operation Instruction Manual CEG-81A & CEG-123A NORMAL SOUNDS High Pitched Chatter High efficiency compressors may have a high pitched chatter Vibration during the cooling cycle. Unit may vibrate and make noise because of poor wall or window construction or incorrect installation. -
Page 12: Energy Saver Feature
Installation and Operation Instruction Manual CEG-81A & CEG-123A AIR CONDITIONER FEATURES TO SELECT THE OPERATING MODE: TO ADJUST FAN SPEEDS: Press to select the Fan Speed in four steps-Auto, To choose operating mode, press Mode button. Each Low, Med or High. Each time the button is pressed, time you press the button, a mode is selected in a the fan speed mode is shifted.For some models, the... -
Page 13: Additional Things You Should Know
Installation and Operation Instruction Manual CEG-81A & CEG-123A AIR CONDITIONER FEATURES DISPLAYS: Air Directional Louvers Displays Air Directional Louvers DISPLAYS: Shows the set temperature in " C" or " F" and the Auto-timer settings.While on Fan only mode,it shows Air Direction(4- way) the room temperature. -
Page 14: Troubleshooting Tips
Installation and Operation Instruction Manual CEG-81A & CEG-123A CARE AND CLEANING Winter Storage Cabinet Cleaning Be sure to unplug the air conditioner to prevent shock or fire If you plan to store the air conditioner during the winter, hazard. The cabinet and front may be dusted with an oil-free... - Page 15 Installation and Operation Instruction Manual CEG-81A & CEG-123A TROUBLESHOOTING TIPS Problem Solution Dirty air filter- air restricted. Clean air filter. Refer to Care and Cleaning section. Air conditioner cooling, but room Temperature is set too High, set temperature to a Lower setting.
-
Page 16: Limited Express Warranty
Coast-Air shall have the right to allow a credit in the amount of the current suggested retail price of the product instead of LIMITED ONE (1) YEAR EXPRESS WARRANTY providing replacement.
