JIG FOR SERVICING

Use the following jigs (extension cable kit) when repairing the PCBs.
Order with your dealer for the jigs your dealer if necessary.
CAUTION : Incorrect connections may cause malfunction.
• Connection of Jig for DIGITAL PCB
---Items to Be Prepared---
8U-110084S :
8U-110136S :
Insulation sheet (Not supplied)
Ground lead (Not supplied)

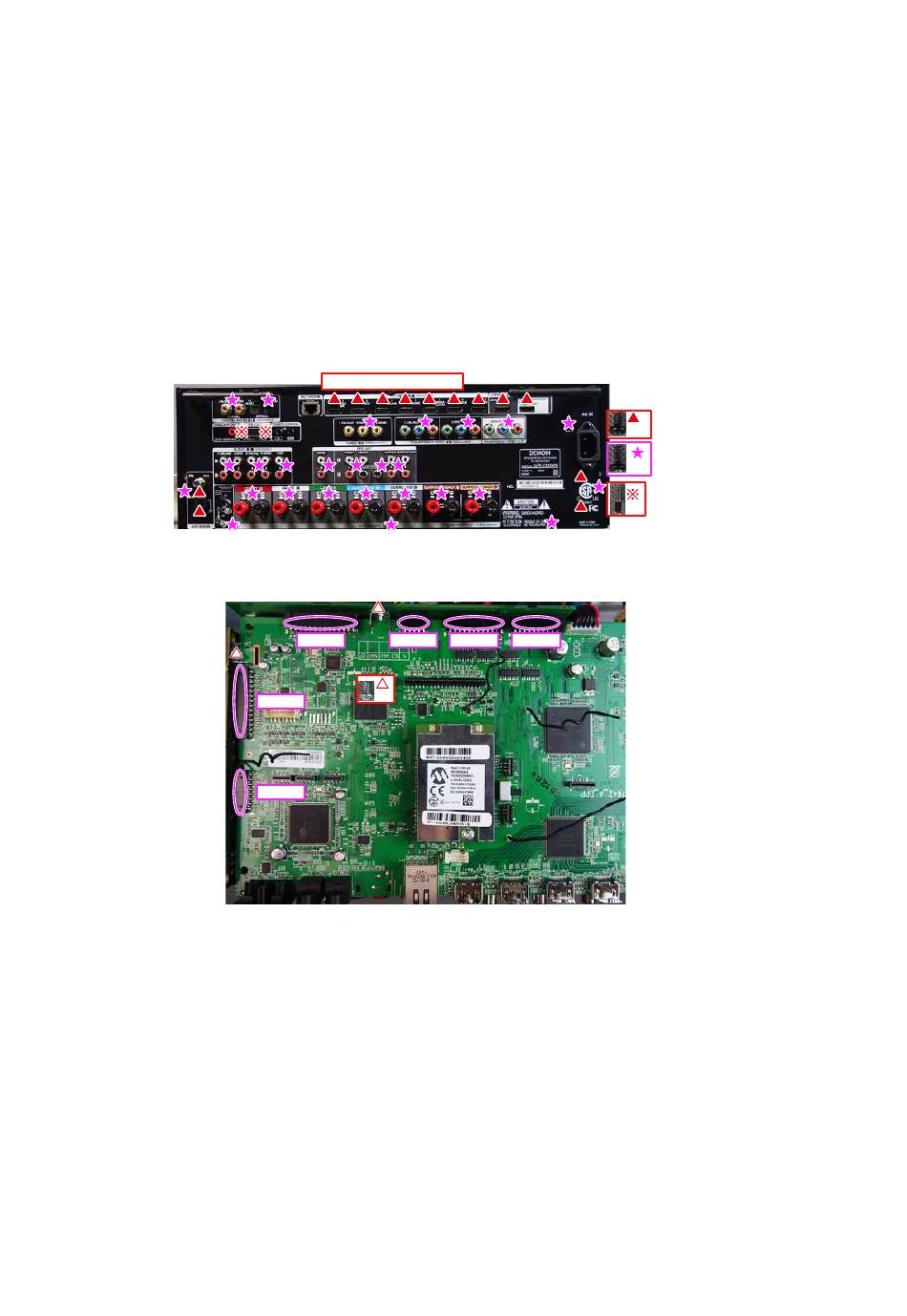

-Procedures-
(1) Remove the screws.
(2) Remove the connector PCB.
EXTENSION UNIT KIT
EXTENSION UNIT KIT
: 3 sheets
: 3 pcs
Shooting direction: A
BN24A
BN23A
BN27A
: 1 set
: 1 set
BN26A BN25A BN21A
x2
64
x13
x26
x2
