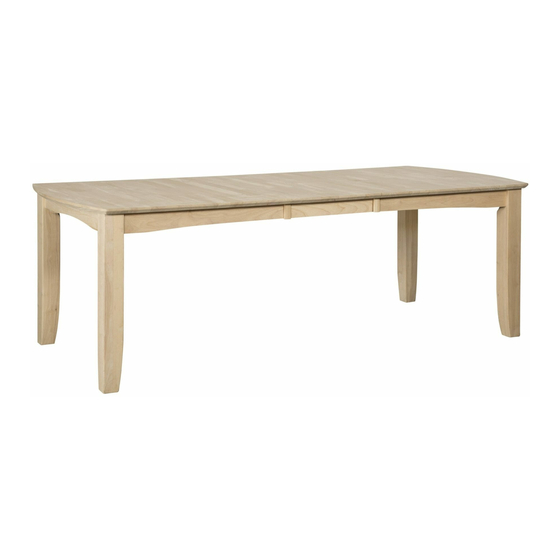

- Page 1 ASSEMBLY INSTRUCTIONS Description : BOW END SHAKER 40 X 72 X 90 BFLY Item No. : T-4072XBC ITEM NO.: T-4072XBC Printed in Vietnam ISSUED JUNE 21, 2016 - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch...
- Page 4 STEP 1 Attach legs (B) to the top (A) with washers (2) and (3), and nuts (1) as shown below. Tighten with the wrench (4). STEP 2 Unlock the table top from both sides underneath of the top as shown below. Pull the two parts of the table top apart.
- Page 5 STEP 3 Place the leaf on the center of the open table top. Push the table top closed. Lock the mechanism underneath two sides of the table top as shown below. ITEM NO.: T-4072XBC Printed in Vietnam ISSUED JUNE 21, 2016 - 5 -...
