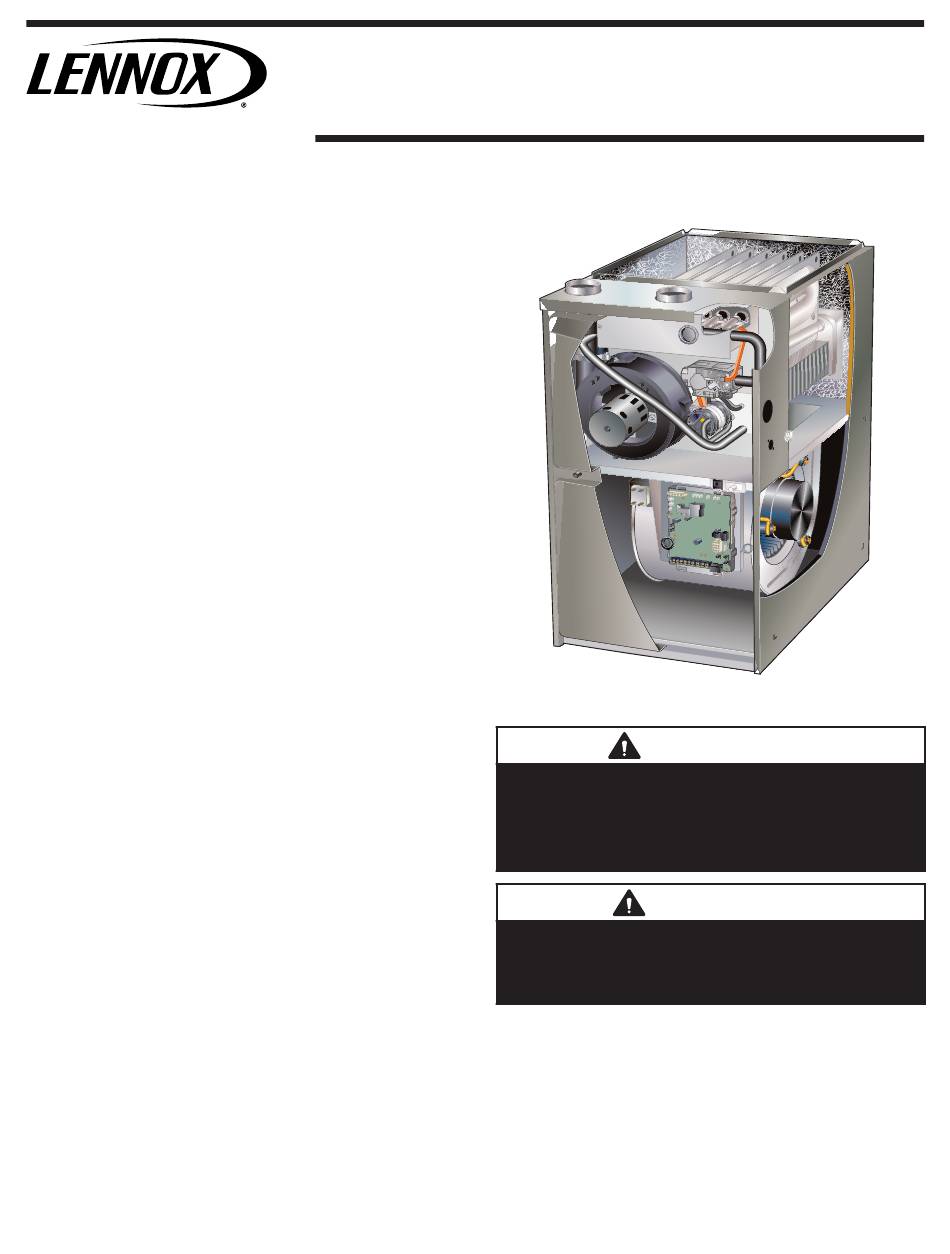

S e r v i c e L i t e r a t u r e
ML296UHV(X) series units are 90% efficiency gas furnac-
es used for downflow applications only, manufactured with
Lennox Duralok heat exchangers formed of aluminized
steel. ML296UHV(X) units are available in heating capac-
ities of 44,000 to 110,000 Btuh and cooling applications
up to 5 tons. Refer to Engineering Handbook for proper
sizing.
Units are factory equipped for use with natural gas. Kits
are available for conversion to LPG operation. ML296U-
HV(X) unit meets the California Nitrogen Oxides (NOx)
Standards and California Seasonal Efficiency require-
ments. All units use a redundant gas valve to assure safe-
ty shut-off as required by C.S.A.
All specifications in this manual are subject to change.
Procedures outlined in this manual are presented as a
recommendation only and do not supersede or replace lo-
cal or state codes. In the absence of local or state codes,
the guidelines and procedures outlined in this manual (ex-
cept where noted) are recommendations only and do not
constitute code

TABLE OF CONTENTS

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Blower Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 3
I Unit Components . . . . . . . . . . . . . . . . . . . . . . . . Page 9
II Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 21
III Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 43
VI Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . Page 47
UNIT INFORMATION
UNIT INFORMATION
Corp 1903-L1
Revised 01/2022
ML296UHV(X) SERIES UNITS
Page 1
WARNING
Improper
installation,
service or maintenance can cause property damage,
personal injury or loss of life. Installation and service
must be performed by a licensed professional HVAC
installer (or equivalent), service agency or the gas
supplier.
CAUTION
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal
injury. Take care while handling this equipment and
wear gloves and protective clothing.

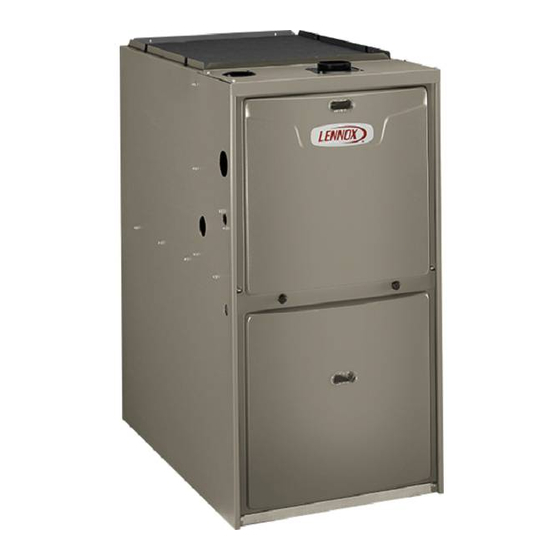

ML296UHV(X)
C C C C
I I I I
HI
HI
adjustment,
alteration,
©2016 Lennox Industries, Inc.
