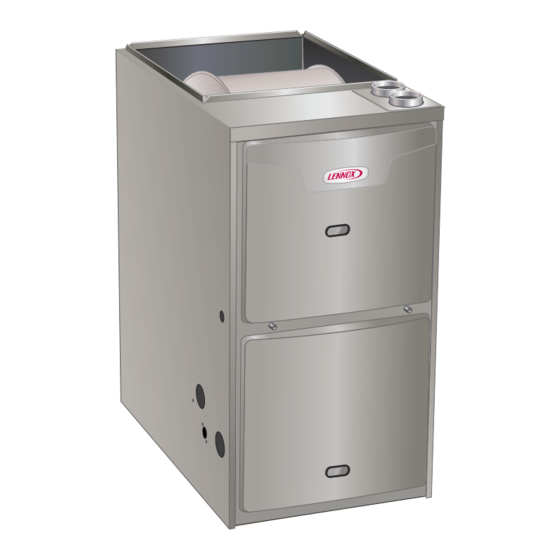

Lennox MERIT Series Installation Instructions Manual

Downflow air discharge
Hide thumbs Also See for MERIT Series:
Table of Contents

Advertisement

Quick Links

Download this manual
© 2020 Lennox Industries Inc.
Dallas, Texas USA
Contents
Unit Dimensions - inches (mm) ......................................2
ML296DFV Gas Furnace................................................3
Shipping and Packing List ..............................................3
Safety .............................................................................3
General ...........................................................................5
Combustion, Dilution, Ventilation Air...............................5
Setting Equipment ..........................................................8
Filters ............................................................................12
Duct System .................................................................12
Pipe Fittings Specifications...........................................12
Venting Options ............................................................13
Joint Cementing Procedure ..........................................15
INSTALLATION
INSTRUCTIONS
ML296DFV
MERIT
SERIES
®
DOWNFLOW AIR DISCHARGE
507871-03
06/2020
Supersedes 05/2020
THIS MANUAL MUST BE LEFT WITH THE
HOMEOWNER FOR FUTURE REFERENCE
This is a safety alert symbol and should never be
ignored. When you see this symbol on labels or in man-
uals, be alert to the potential for personal injury or death.
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer (or
equivalent), service agency or the gas supplier.
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves and
protective clothing.
C C C C
I I I I
HI
HI
Venting Practices ..........................................................15
Vent Piping Guidelines .................................................17
Gas Piping ....................................................................33
Electrical .......................................................................35
Blower Motor Performance ...........................................38
Integrated Control .........................................................41
Unit Start-Up .................................................................42
Gas Pressure Measurement.........................................43
Proper Combustion.......................................................44
High Altitude .................................................................44
Sequence of Operation.................................................46
Service..........................................................................47
Repair Parts List ...........................................................48
Start-Up and Performance Check list ...........................51
