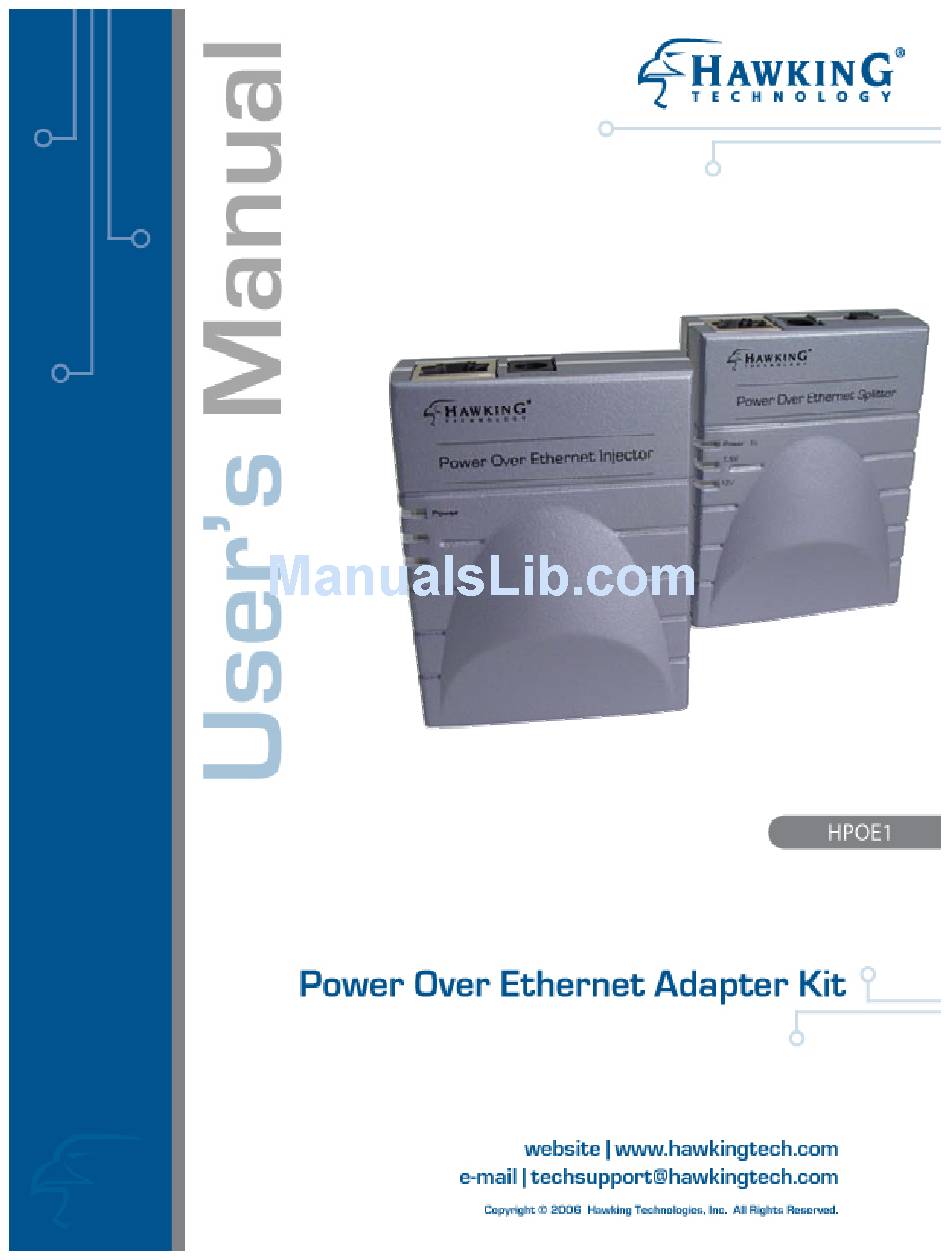

Hawking HPOE1 User Manual

Power over ethernet adapter kit

Advertisement

Quick Links

1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HPOE1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hawking HPOE1

  • Page 2 (1) year from the date of purchase. If the product proves defective during this one-year warranty period, call Hawking Customer Service in order to obtain a Return Authorization number. Warranty is for repair or replacement only. Hawking Technology does not issue any refunds.
  • Page 3 Overview Features Package Content Hardware Description Installation Technical Specifications...
  • Page 4 Ethernet port on a switch or hub.) The Injector unit’s 48V/0.4A Power-In port is connected to a standard wall outlet via the power adapter that is included in the HPOE1’s packaging. On the other end of the Injector unit, the Power + Data-Out port is connected to the Splitter unit’s Power + Data-In port via a standard RJ-45 Ethernet cable.
  • Page 5 Transmits both data and power via a standard RJ-45 Ethernet cable • Delivers DC power and data to non-PoE network devices • Delivers power over up to 100 meters • Short-circuit protection • Adjustable output settings (5v/1.5A, 7.5v/1A, and 12v/1A) to match the power setting of •...
  • Page 6 Power over Ethernet Injector Power over Ethernet splitter Power adapter 48V/0.4A RJ-45 Ethernet Cable Power Link Cable (Male-to-Male) User’s Manual Figure 2. Package Contents...
  • Page 7 Power over Ethernet Injector The Power over Ethernet Injector has three connection ports and one LED indicator (Power). The following is a brief description: • Data-In (LAN) port: This is the RJ-45 Ethernet port for data transmission into the PoE Injector.
  • Page 8 Power over Ethernet Splitter The Power over Ethernet Splitter has three connection ports, three LED indicators, and a voltage adjustment DIP switch. • Power + Data-In port: This is an RJ-45 Ethernet port for data and power transmission into the PoE Splitter. This port connects to the PoE Injector’s Power + Data-Out port via an RJ-45 Ethernet cable.
  • Page 9 LED indicators: There are three LEDs on the top of PoE Splitter. The LEDs are listed according to power output status: 5V (also Power), 7.5V, or 12V. Figure 7. Power and Voltage Status LED Indicators • DIP switch: The DIP switch adjusts the splitter voltage, allowing for the PoE Adapter to operate with a variety of different PoE-capable network devices, such as IP cameras, access points, and more.
  • Page 10 This Installation section will provide you with general instructions on how to set up the HPOE1 Adapter Kit with PoE-capable devices by walking you through two examples: 1. Installing the HPOE1 Adapter Kit and connecting it to an IP camera (Hawking’s HNC290G Wireless-G Network Camera will be used for this example), and 2.
  • Page 11 The installation process is now complete. If you have already installed and set up your access point, you can verify that the PoE Adapter Kit– AP/Bridge system is working properly by typing the access point’s IP address into your...
  • Page 12 Power over Ethernet Injector Standard Connector Network Cable Power Input Output Power Operating Environment Operating Humidity Dimension EMI & Safety IEEE802.3 10Base-T IEEE802.3u 100Base-TX DC Out: Power pin: 4,5, 7,8 10Base-T: UTP Category 3/5e/6 cable (up to 100m) 100Base-TX: UTP Category 5e/6 cable (up to 100m) System: power (green) 100 - 240V, 50 - 60Hz, 0.7A 48VDC, 0.4A...
  • Page 13 Power over Ethernet Splitter IEEE802.3 10BASE-T Standard IEEE802.3u 100BASE-TX Three-setting output voltage switch DIP switch Data/Power In: Data pin 1, 2, 3, 6 Power pin: 4, 5, 7, 8 Connector Data Out: Data pin 1, 2, 3, 6 Power out jack: 5V, 7.5V, 12V (Adjustable) Maximum feeding current: 1A@12V 10Base-T: UTP Cat.3, 4, 5 cable (up to 100m) Network Cable...
