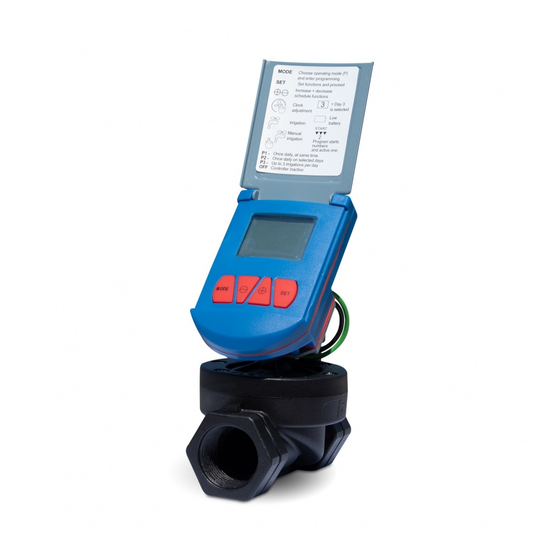

- Page 1 BACCARA G75 Irrigation Window Controller WINDOW START USERS GUIDE 10:00 14:00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Getting Started FEATURES PARTS IDENTIFICATION BASIC CONTROLLER FUNCTIONS INSTALLATION MANUAL OPERATION IRRIGATION CYCLE TABLE Example Programming the Controller MEANING OF CONTROLLER ICONS SETTING THE CLOCK SETTING THE WINDOW Setting Window Start Time Setting the Window End Time Setting the ON Time (Duration Time) Setting the OFF Time (Interval) Setting the Days... -
Page 3: Getting Started
G75 Irrigation Window Controller Getting Started Features This Controller irrigates in cycles, during a window of time according to your needs. New plantings may be irrigated for short bursts, in defined intervals. Cycle irrigation is also used for temperature control. -
Page 4: Basic Controller Functions
G75 Irrigation Window Controller Basic Controller Functions This section gives a brief description of the Controller buttons. See the following sections for further details. MODE Button - Quick presses of the MODE button turn the controller off, or on. Longer presses of the MODE button put the Controller in programming mode. -
Page 5: Manual Operation
G75 Irrigation Window Controller Manual Operation To manually open the valve, make sure that the Controller is not set to OFF (If it is set to OFF, press briefly on the MODE button), then press and SET simultaneously. The irrigation will continue until the interval defined has passed. - Page 6 G75 Irrigation Window Controller 10:00 Window Start Time 14:00 Window End Time ON Time (Duration) 1:00 OFF Time (Interval) Sun. Mon. Wed. Thurs. Fri. Tues. Sat. WINDOW START 10:00 14:00...
-
Page 7: Programming The Controller
G75 Irrigation Window Controller Programming the Controller Meaning of Controller Icons Quick presses of the MODE button NOTE: turns the Controller off, or on. Longer presses of the MODE button put the Controller in programming mode. 1. Irrigating days of the week START 2. -
Page 8: Setting The Clock
G75 Irrigation Window Controller Setting the Clock If screen is blank, press MODE to activate. To set the program, you must be in operating mode. Before programming the Controller you must set the clock. 1. Press MODE until the time adjustment icon... -
Page 9: Setting The Window
G75 Irrigation Window Controller Setting the Window The Window is the time between the Start and End of the irrigation. The cycle consists of the ON time (actual irrigation time), and the OFF time (interval between irrigations). The cycle recurs during the Window. -
Page 10: Setting The Window End Time
G75 Irrigation Window Controller Setting the Window End Time The following screen will then appear: On this screen, the clock numbers refer to the time you wish the irrigation Window to end. flashes on the screen, alternating with the numbers. -
Page 11: Setting The Off Time (Interval)
G75 Irrigation Window Controller cycle. ON time is measured in seconds and minutes. flashes on the screen, alternating with the numbers. 1. Use the and the buttons to adjust the seconds. 2. Press SET to continue. 3. Use the and the buttons to adjust the minutes. -
Page 12: Setting The Days
G75 Irrigation Window Controller 4. Press SET to continue. Setting the Days The following screen will then appear: You must select the days you wish the irrigation Window to operate. 1. Press SET to reach the day you wish to irrigate. - Page 13 G75 IrrigationWindow Controller screen (Str). Set this screen to 08:00. End screen then appears. Set End to 18:00. The next screen is the ON screen (Duration Time). Set this to 01 (minutes). The OFF (Interval) screen should be set to 0:30. Each day of the week should then be selected on the next screen.
-
Page 14: Maintenance And Troubleshooting
G75 Irrigation Window Controller Maintenance and Troubleshooting Battery Installation Replace the battery at the start of each irrigation season and when the low battery symbol appears. 1. Using a Phillips screwdriver, remove the four battery cover screws. 2. Remove the battery cover and seal. -
Page 15: Off Season
G75 Irrigation Window Controller Off Season During the season when you do not need to water your plants press the MODE button quickly until OFF is displayed. DO NOT remove the battery. The Controller is equipped with a backup battery, and removing the main battery for long... -
Page 16: Troubleshooting
G75 Irrigation Window Controller Troubleshooting PROBLEM CAUSE SOLUTION Controller does not Water at main faucet Check faucet irrigate plants as is shut off desired Hose cut or blocked Replace damaged section Battery dead Replace battery Controller set on Press MODE to... -
Page 17: Contact And Service Information
Users Guide. Neither does it apply to failures caused by lightning strikes or damage due to freezing temperatures or mechanical causes (e.g. lawn mowers). Baccara is not liable for indirect, incidental or consequential damage in connection with the use of equipment. -
Page 18: Contact Information
G75 Irrigation Window Controller Contact information FACTORY AND HEAD OFFICE Baccara Automation Control Kvutzat Geva, 18915, Israel Tel: 972 4 6535 960 Fax: 972 4 6531 445 E-mail: info@baccara-geva.com Web Site: www.baccara-geva.com Baccara # 42572003 11/2010... - Page 19 WINDOW START 10:00 14:00 START BACCARA Baccara Automation Control Head Office & Factory Kvutzat Geva, 18915, Israel Tel: 972 4 6535960 Fax: 972 4 6531445 e-mail: sales@baccara.co.il www.baccara.co.il Version 06/06 #42572003...
- Page 20 FLOW CHART G75 IRRIGATION “WINDOW” CONTROLLER Mode Operating Mode No Display Mode Programming Mode>2S Programming Minutes Hours Start Set Clock and Day of Week Mode>2S Set Program Select Deselect 7 Times...
