16
Watering up-to Three times
a day on selected days (P3)
If you need to water more, up-to three times
a day, on specific days, use the P3 program.
Duration time must be programmed first.
See section 11.
Setting the Start Times
To set start times, you must be in an
operating mode (P1, P2 or P3).
1. Press MODE until the clock setting screen
appears, Press MODE again until the
Duration Time (with tap) screen appears,
press MODE a third time until the P1
screen appears, press again until P2
appears, then press again until the P3
screen appears (the minutes will be
flashing).
On this screen, the clock numbers refer to
the time you wish the first irrigation (START 1)
to begin.
18
Setting up a Second and
Third Daily Irrigation
Repeat the above steps for setting the start
times of the second and third daily irrigations.
After completing setting the start times, the
number 1 in the upper left corner will flash
indicating that you are now ready to choose
the days you wish to irrigate.

Choosing the Days

Press SET to move through the days, and
1.
reach the day you wish to irrigate. The
number (corresponding to the day of the
week) will flash.
2.
Press
to select that day (the square
which appears indicates day is selected).
3.
Press
to deselect day.
4.
Continue through all the days until day 7
is flashing, then either press SET to return
to operating mode or press
to select
7 (if desired) and then press SET.
20

Maintenance

Battery Installation

Replace the battery at the start of each
irrigation season and when the low battery
symbol
appears.
1. Using a Phillips screw driver, remove the
four battery cover screws.
2. Remove the battery cover and seal.
3. Replace the battery.
4. After reattaching the seal, put the cover
back, and secure with the four screws.
17
The three arrows under START indicate the
three di erent irrigations. As each arrow
appears you may program the start time for
that particular irrigation.
2. Use the
and the
buttons to adjust
the minutes.
3. Press SET to continue.
4. Use the
and the
buttons to adjust
the hours.
3. Press SET to continue programming. The
arrow now appears under START 2.
19
Example
If you wish to irrigate on Sunday, Tuesday, Thursday
and Friday at 8:00 in the morning, and at noon, and at
15:00 in the afternoon for 30 minutes each time, first
make sure the clock is set and duration time is set to
0:30. Then press MODE until the clock setting screen
appears, press MODE again until the Duration Time
(with tap) screen appears, press MODE a third time
until the P1 screen appears.Press again until P2
appears, then press again until the P3 screen appears
(with clock and tap). Set 1 to 8:00, Start 2 to 12:00
and Start 3 to 15:00. After setting the irrigation start
times, the days at the top of the screen will flash.
Set 1, 3, 5 and 6 then press SET when you reach day 7.

Off season

During the season when you do not need to
water your plants, press the MODE button
quickly until OFF is displayed. DO NOT remove
the battery. The controller is equipped with a
back-up battery, and removing the main battery
for long periods will cause the back-up battery
to discharge.
21
screws
Battery cover
seal
When replacing the seal, push seal tabs
into slots.

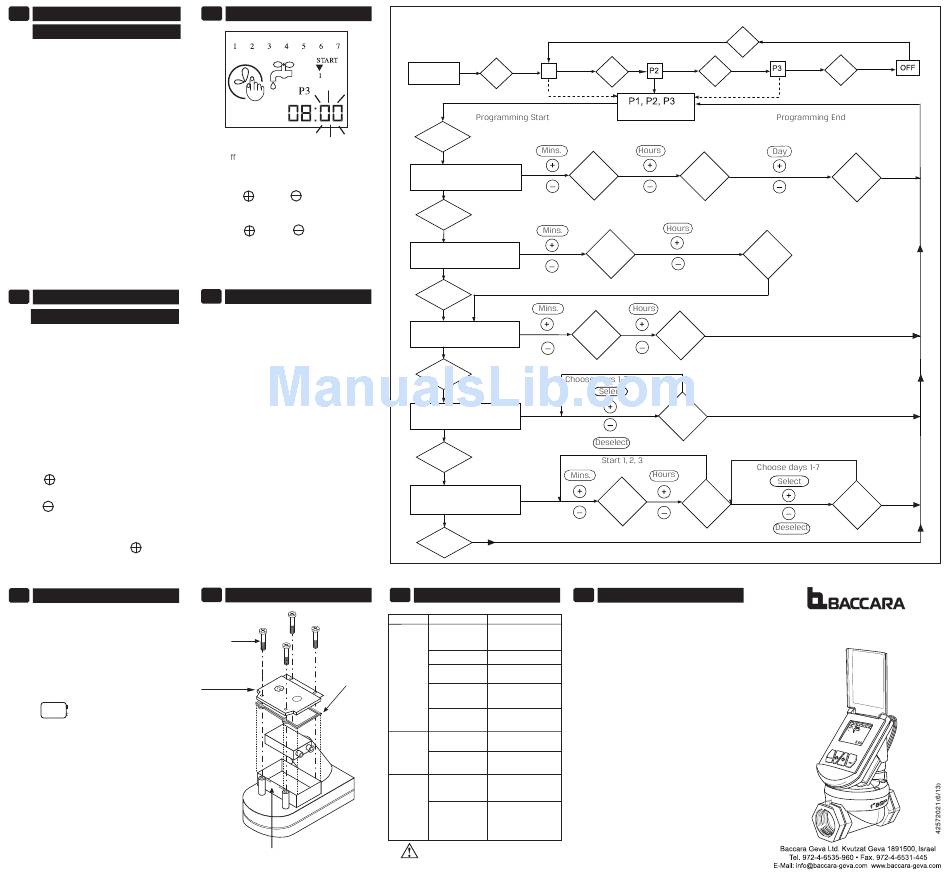

Flow Chart for G75 Irrigation Controller
P1
No display
Mode
Mode>2S
Set clock and day
of week
Mode>2S
Set Irrigation Duration
for P1, P2, P3
Mode>2S
Set Start Time
for P1
Mode>2S
Set Watering Days
for P2
Mode>2S
Set Start Times and
Watering days for P3
Mode>2S
22

Troubleshooting

Problem
Cause
Solution
Controller
Water at main
Check faucet
does not
faucet is shut off
irrigate plants
as desired.
Hose cut or blocked
Replace damaged section
Battery dead
Replace battery
Set controller to
Controller set on
OFF
desired program
Controller improperly
Check program and
programmed
clock settings
Blank display
Battery dead
Replace battery
Controller is sleep
Press MODE to
mode
activate screen
Water does
Valve blocked by
Replace valve
not turn off
dirt or scale
Valve installed
Install valve so that
the arrow points in
backwards
the direction of the
water flow.
Caution! Do not remove the battery
when the controller is in use
Mode
Operating Loop
Mode
Mode
Operating Mode
Set
Set
Set
Set
Set
Set
Set
Set
23

Guarantee

Baccara products are guaranteed to be free from
defects in material and workmanship for a period
of one year from the date of delivery.
This guarantee does nor apply where equipment is
not used and installed strictly in accordance with
Baccara specifications and Users Guide. Neither
does it apply to failures caused by lightning strikes
or damage due to freezing temperatures or mecha-
nical causes (e.g. lawn mowers). Baccara is not
liable for indirect, incidental or consequential
damage in connection with the use of equipment.
To receive guarantee benefits, customers should
return defective units along with the receipt to the
nearest Baccara distributor.
Baccara reserves the right to alter, modify or
redesign its products, pricing and guarantee at all
times without creating any liability for the
obsolescence of customer inventory of such parts
or products.
This manufacturer guarantee policy may apply
differently in different countries.
Mode
Set
Set
Set

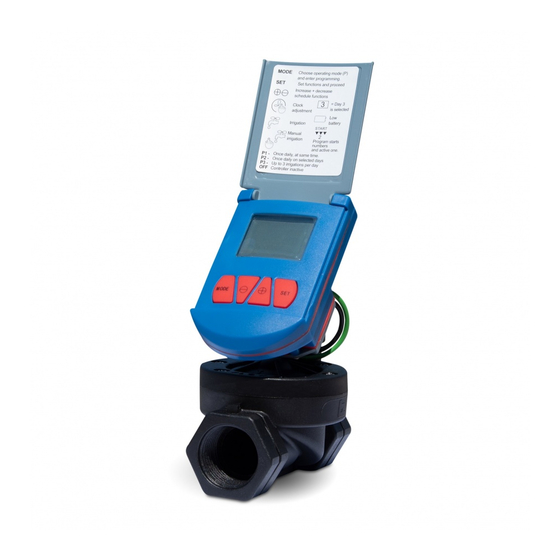

G75 Irrigation Controller
