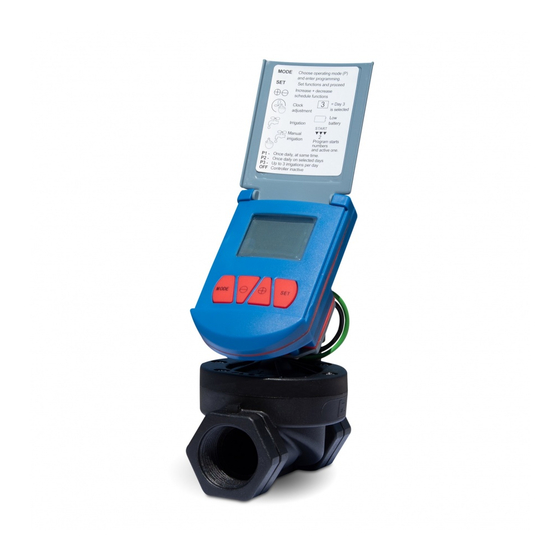

Baccara G75 User Manual

16
1. Press five long presses on the MODE
button until the following screen appears:
1 2 3 4 5 6 7 1 2 3 4 5 6 7
The percentage programmed will flash on the
screen alternately with
2. Use the and the buttons to adjust
percentage amount to your requirments.
3. Press SET to complete adjustment.
17
Factory Default Settings
The Controller comes with the following
factory default settings:
Irrigation Start Times
Start 1 Start 2 Start 3
06:00 12:00 18:00
Start Times for P1 and P2
Irrigation Duration for Valve 1 (P1) and
Valve 2 (P2)
P1 0:15
Duration Time
P2 0:15
Selected Starts
Start 1 Start 2 Start 3
√
Selected Starts for P1
√
Selected Starts for P2
Irrigation Days
Sun. Mon. Tue. Wed. Thu. Fri. Sat.
√ √
P1 √
√
P2 √ √
18
Off Season
During the season when you do not need to
water your plants, press the MODE button
quickly until OFF is displayed. DO NOT
remove the battery.
The Controller is equipped with a flash
memory that will save the programmed
functions even without the battery.
Maintenance
Battery Installation
Replace the battery at the start of each
irrigation season and when the low battery
symbol appears:
Use a 9V alkaline top quality battery only.
1. Use a Phillips screwdriver, remove the four
battery cover screws.
2. Remove the battery cover and seal.
3. Replace the battery.
4. After reattaching the seal, put the cover
back, and secure with the four screws.

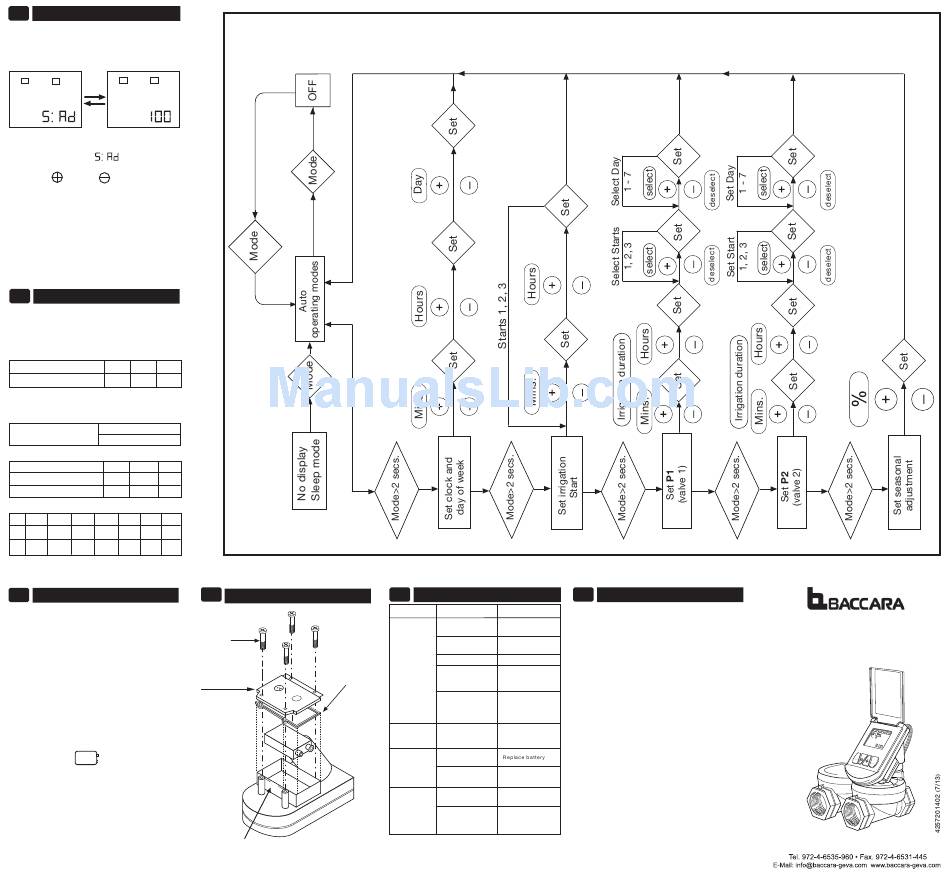

Flow Chart for G75 2 Valves Irrigation Controller
19
Screws
Battery
Seal
Cover
When replacing seal,
push seal tabs into slots.
20
Troubleshooting
PROBLEM CAUSE SOLUTION
Water at main faucet Check faucet
Controller
is shut off
does not
Hose cut or Replace damaged
irrigate plants
blocked section
as desired
Battery dead
Replace battery
Controller set on Set controller to
OFF desired program
Controller Check program
improperly and clock settings
programmed
P2 does not Wait until P1
P1 has priority and
begin on time has not completed finishes irrigating
its duration
Blank display
Battery dead
Press MODE to
Controller in sleep
mode activate screen
Valve blocked by
Replace valve
Water does
dirt or scale
not turn off
Valve installed Install valve so that
the arrow points in
backwards
the direction of the
water flow.
21
Guarantee
Baccara products are guaranteed to be free from
defects in material and workmanship for a period
of one year from the date of delivery.
This guarantee does nor apply where equipment is
not used and installed strictly in accordance with
Baccara specifications and Users Guide. Neither
does it apply to failures caused by lightning strikes
or damage due to freezing temperatures or mecha-
nical causes (e.g. lawn mowers). Baccara is not
liable for indirect, incidental or consequential
damage in connection with the use of equipment.
To receive guarantee benefits, customers should
return defective units along with the receipt to the
nearest Baccara distributor.
Baccara reserves the right to alter, modify or
redesign its products, pricing and guarantee at all
times without creating any liability for the
obsolescence of customer inventory of such parts
or products.
This manufacturer guarantee policy may apply
differently in different countries.
G75 Two Valves
Irrigation Controller
USERS GUIDE
