- Page 1 A U T O M A T I O N & C O N T R O L IO M G75 -DFC Differential Filtration Controller Tackling climate Installation - Operation - Maintenance change together...
- Page 2 This document is given in good faith and is not intended to impose any obligation on Baccara. While every effort has been made to ensure the information in this IOM is accurate and complete, we would appreciate it if you brought any errors or omissions to the attention of Baccara or consult Baccara experts or its authorized representatives for any Copyright ©...
-
Page 3: Table Of Contents
Installation ............................5 First Startup ...........................5 Operation and Maintenance: ....................5 The G-75-DFC Main Components ..................6 INSTALLATION G75-DFC - Wires assignment ....................7 DP Switch Installation ......................7 LV9000 - Wire Connectors (Provided by Blazing Waterproof Small Wire Connector | LV9000) ..................8 DryConn #22 to #12 AWG - Wire Connectors (Provided by DryConn) ......................8... -
Page 4: Introduction General
INTRODUCTION General The Baccara Differential Filtration Controller combines a Controller and a Differential Pressure Sensor (DP). The Controller has seven wires; four wires for valves, and a molded 3 wire cable with connector for the DP switch. The G75-DFC operates up to three G75 4 latch two-wires solenoids, and has a display screen that shows the actual Ω... -
Page 5: Safety Instructions General
• Always observe standard safety instructions and good engineering practices whilst working in the filtration system vicinity. • Use the G75-DFC Filtration Controller only for its intended use, as designed by the manufacturer, any misuse of the controller may lead to undesired damage and may affect your warranty coverage. -
Page 6: The G-75-Dfc Main Components

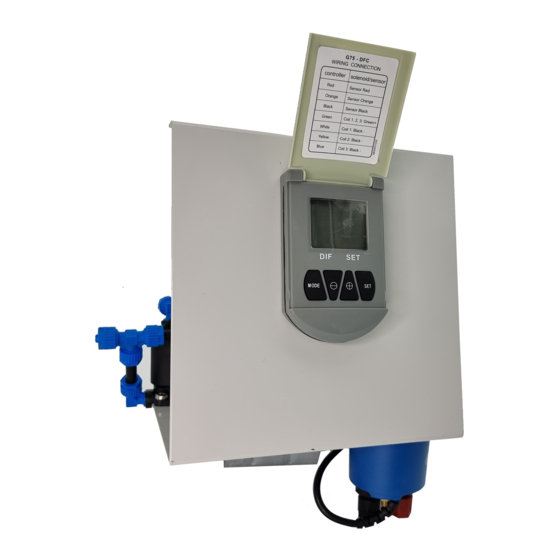

G75-DFC Differential Filtration Controller The G-75-DFC Main Components DP Switch Controller (D Electric cable Pipe fitting Upper digits Lower digits Pipe fitting Mounting screws x 2 Controller (DFC display) Controller (DFC display) Pipe fitting Upper digits Lower digits Mounting screws x 2 A U T O M A T I O N &... -
Page 7: Installation
Important: Connect the High-Pressure control tube to the red connector of the DP switch first, then connect the Low- Pressure control tube to the black connector of the DP switch. When needed disconnect the Low-pressure tube before the High-pressure control tube. G75-DFC - Differential Filtration Controller | IOM... -
Page 8: Lv9000 - Wire Connectors
Small Wire Connector | LV9000) G75-DFC Differential Filtration Controller aterproof Small Wire Connector | LV9000) LV9000 - Wire Connectors DryConn #22 to #12 AWG - aterproof Small Wire Connector | LV9000) Wire Connectors mall Wire Connector | LV9000) DryConn #22 to #12 AWG - Wire Connectors... -
Page 9: Battery Installation
1. Replace the battery at the beginning of each irrigation season and whenever the Low Battery Symbol appears on the controller’s screen. 2. Always use the best quality battery to ensure at least one year’s autonomous operation. 3. When replacing the seal, push its tabs into the slots. Baccara landscape | solenoids... -
Page 10: The User Interface
The User Interface Monitoring the controller’s operation The G75-DFC has two operation modes: Auto and Off. The Auto mode The Auto mode is the running mode of the controller, while in this mode the upper digits (UD) of the screen display the current accumulation of the Flush Cycles Counter, and the lower digits (LD) display the Differential Pressure (DIF) and its Settings Value. -
Page 11: Programing The Controller
Programing the controller The G75-DFC controller has two types of operation parameters: factory-set parameters and user programable parameters. Factory-Set Parameters: The factory-set parameters cannot be changed by the user and they include the following: • Pressure units: bar • Flush Cycle (FC) delay: 2 consecutive readings of DIF≥SET before the FC starts. -
Page 12: Setting The Interval Time Between Backwash Cycles
G75-DFC Differential Filtration Controller Setting the Interval Time between backwash cycles: Setting the Interval Time between backwash cycles Setting the Interval Time between backwash cycles: This parameter is the maximal time between two consecutive backwash cycles if no backwash cycle is triggered by the This parameter is the maximal time between two consecutive backwash cycles if no backwash cycle is triggered by the differential pressure switch (DIF). -
Page 13: Troubleshooting
4. Service or replace the valve Valves open instead of 1. Solenoid valves in reverse 2. check if the solenoids 3. Reverse the solenoids closing and close instead polarity are connected in reverse connections polarity of opening polarity Baccara landscape | solenoids... -
Page 14: Warranty
Buyer shall inspect the product within ten days of delivery and must immediately notify Baccara of any defects. Failure to so notify Baccara within such ten-day period shall constitute a waiver of all claims by Buyer against Baccara arising out This warranty will not apply in the event of a breakdown due to operation not in accordance with the instructions for of such defects. - Page 15 G75-DFC - Differential Filtration Controller | IOM...
- Page 16 BACCARA WORLD WIDE BACCARA Corporate Headquarters Baccara Australia Pty Ltd. BACCARA España C/ Marqués de Monteagudo N° 24, Madrid Kvutzat Geva, 1891500, Israel 15/347 Bay Rd. Cheltenham | VIC, T. (+34) 913446310 T. +972 4 6535960 Australia 3192 spain@baccara-geva.com F. +972 4 6531445 T.
