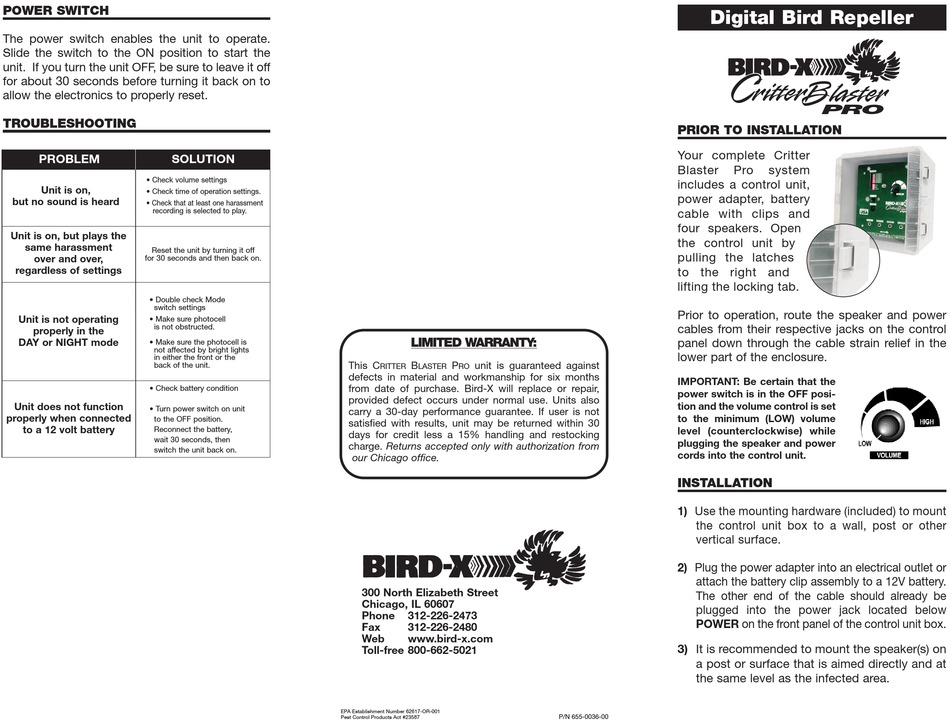

Bird-X Critter Blaster Pro Quick Start Manual

POWER SWITCH
The power switch enables the unit to operate.
Slide the switch to the ON position to start the
unit. If you turn the unit OFF, be sure to leave it off
for about 30 seconds before turning it back on to
allow the electronics to properly reset.
TROUBLESHOOTING
PROBLEM SOLUTION
• Check volume settings
Unit is on,
• Check time of operation settings.
but no sound is heard
• Check that at least one harassment
recording is selected to play.
Unit is on, but plays the
same harassment
Reset the unit by turning it off
over and over, for 30 seconds and then back on.
regardless of settings
• Double check Mode
switch settings
Unit is not operating
• Make sure photocell
is not obstructed.
properly in the
DAY or NIGHT mode • Make sure the photocell is
not affected by bright lights
in either the front or the
back of the unit.
• Check battery condition
Unit does not function
• Turn power switch on unit
properly when connected
to the OFF position.
to a 12 volt battery Reconnect the battery,
wait 30 seconds, then
switch the unit back on.
LIMITED WARRANTY:
This C B P unit is guaranteed against
RITTER LASTER RO
defects in material and workmanship for six months
from date of purchase. Bird-X will replace or repair,
provided defect occurs under normal use. Units also
carry a 30-day performance guarantee. If user is not
satisfied with results, unit may be returned within 30
days for credit less a 15% handling and restocking
charge. Returns accepted only with authorization from
our Chicago office.
300 North Elizabeth Street
Chicago, IL 60607
Phone 312-226-2473
Fax 312-226-2480
Web www.bird-x.com
Toll-free 800-662-5021
EPA Establishment Number 62617-OR-001
Pest Control Products Act #23587
Digital Bird Repeller
C C
PRIOR TO INSTALLATION
Your complete Critter
Blaster Pro
includes a control unit,
power adapter, battery
cable with clips and
four speakers. Open
the control unit by
pulling the latches
to the right and
lifting the locking tab.
Prior to operation, route the speaker and power
cables from their respective jacks on the control
panel down through the cable strain relief in the
lower part of the enclosure.
IMPORTANT: Be certain that the
power switch is in the OFF posi-
tion and the volume control is set
to the minimum (LOW) volume
level (counterclockwise) while
plugging the speaker and power
cords into the control unit.
INSTALLATION
1) Use the mounting hardware (included) to mount
the control unit box to a wall, post or other
vertical surface.
2) Plug the power adapter into an electrical outlet or
attach the battery clip assembly to a 12V battery.
The other end of the cable should already be
plugged into the power jack located below
POWER on the front panel of the control unit box.
3) It is recommended to mount the speaker(s) on
a post or surface that is aimed directly and at
the same level as the infected area.
P/N 655-0036-00
ritter ritter
Blaster Blaster
PRO PRO
system
