Related Manuals for Bird-X Mega Blaster PRO
Summary of Contents for Bird-X Mega Blaster PRO
-
Page 1: Table Of Contents
User’s Manual Overview Bird Control Management Guidelines Materials List Assembly Control Unit Solar Panel Placement Building a Mounting Pole or Mast Installation 20-Speaker Tower Solar Panel Control Box Solar Panel Connections Settings Recordings Mode Settings Warranty... -

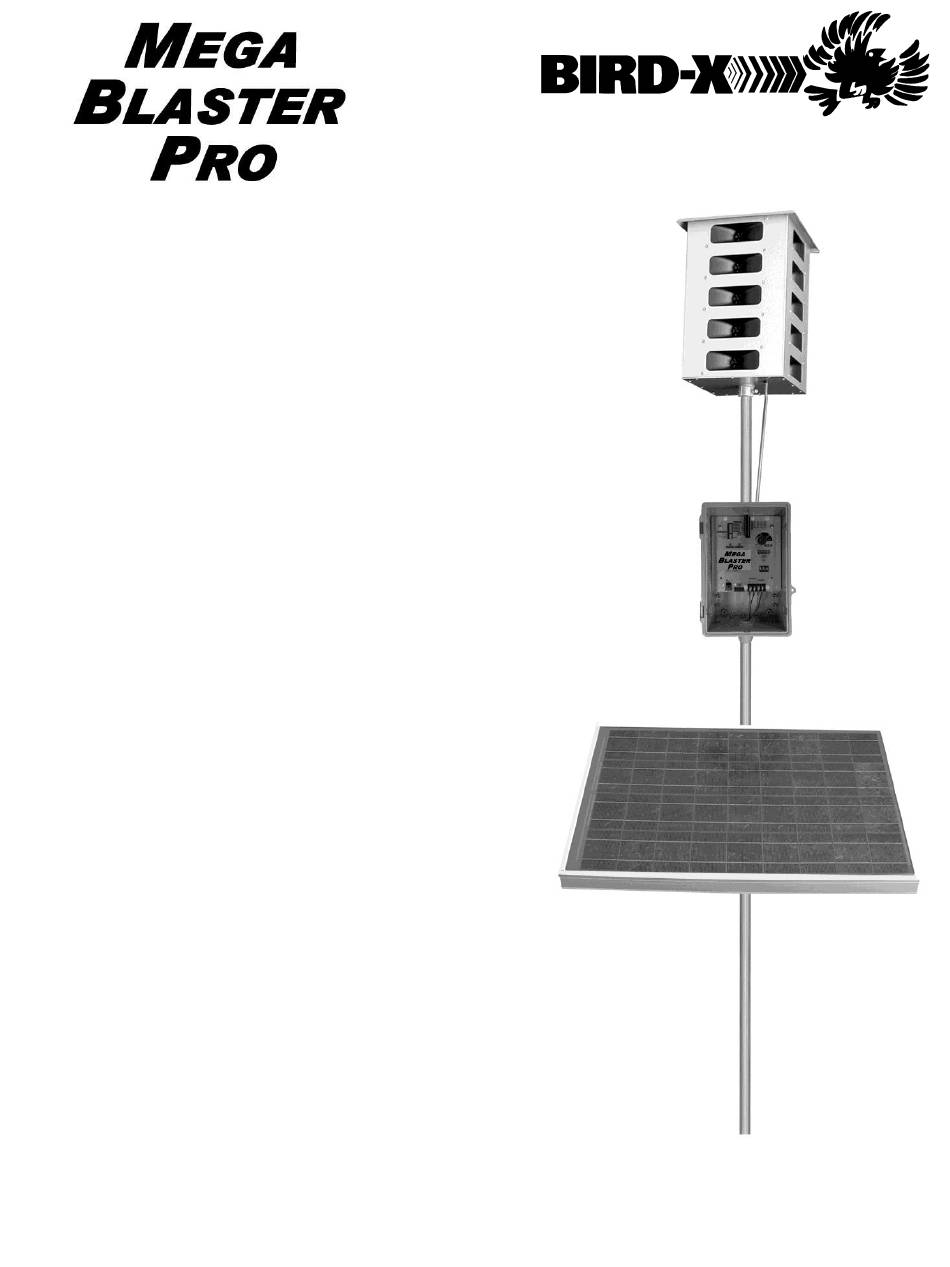

Page 2: Overview
Overview The Bird-X Mega Blaster PRO utilizes the innate power of the natural survival instincts of birds to effectively repel them. Digital recordings of distressed and alarmed birds, along with the sounds made by their natural predators are broadcast through high fidelity weather-resistant speakers over the top of areas. -
Page 3: Bird Control Management Guidelines
• Install the Mega Blaster PRO unit at least two weeks before birds are attracted to your area. It is much easier to keep birds away before they have found a food source than it is to repel them once they have developed a feeding pattern. -
Page 4: Materials List
Control Box Mounting U-Bolts 40-Watt Solar Panel Solar Panel Mounting Bracket Solar Panel Mounting U-Bolts 1/4” x 1-1/8” x 2” Control Box Connector Cable Battery Box 2 Wire, 10 ft. Long Bird-X Mega Blaster PRO User’s Manual (#655-0065-00 – May 2016) -
Page 5: Assembly
Bolts (Figure 3B) Top View Bottom View Figure 2 Clamp Plates slide under Rotate Mounting Arm and the lip of the Solar Panel tighten Carriage Bolts Figure 3A Figure 3B Bird-X Mega Blaster PRO User’s Manual (#655-0065-00 – May 2016) -
Page 6: Placement
• Mount the 20-Speaker Tower at least 5 feet above terrain, areas, trees and other obstacles. • Placing the Mega Blaster PRO on top of a hill or small rise will give you much better coverage than at the bottom of a valley. The greater the height the further the sounds will travel. -
Page 7: Building A Mounting Pole Or Mast
10 ft. lengths making it ideal for low areas, vineyards and bushes. • You will want to take down your Mega Blaster PRO unit after harvest and store it in a dry location until the next season. -
Page 8: Installation
Installation Note: Foliage, trees, and other obstructions severely reduce the effective range of Mega Blaster PRO units. It is critical that the 20-Speaker Tower is mounted at least 5 feet above all obstructions to achieve the maximum protection. Mounting Pole or Mast 1. -
Page 9: Control Box
Figure 8, 9 and 10 Figure 7 connect to BATTERY CAUTION: The Mega Blaster PRO is capable of producing sounds up to 125 decibels. Hearing protection must be worn anytime the unit is on! Bird-X Mega Blaster PRO User’s Manual (#655-0065-00 – May 2016) -
Page 10: Settings
10:00-30:00 Minutes When the Mega Blaster PRO unit is first installed the TIME OFF INTERVAL should be set to SHORT to create the greatest sense of danger and move the birds out of the area the fastest. Once the birds have left the area completely for a week or more you may try increasing the TIME OFF INTERVAL gradually, but you must monitor the birds carefully. - Page 11 The battery is dead Connect the battery to a battery charger and see if it will hold a charge. Replace if necessary Solar Panel is not getting enough sunlight Reposition the Solar Panel Bird-X Mega Blaster PRO User’s Manual (#655-0065-00 – May 2016)
-
Page 12: Warranty
Limited Warranty THIS MEGA BLASTER PRO UNIT IS WARRANTED AGAINST DEFECTS IN MATERIAL AND WORKMANSHIP FOR SIX MONTHS FROM DATE OF PURCHASE (EXTENDED WARRANTY AVAILABLE). BIRD-X WILL REPLACE OR REPAIR, PROVIDED DEFECT OCCURS UNDER NORMAL USE. RETURNS ACCEPTED ONLY WITH AUTHORIZATION FROM OUR CHICAGO OFFICE.
