Popp

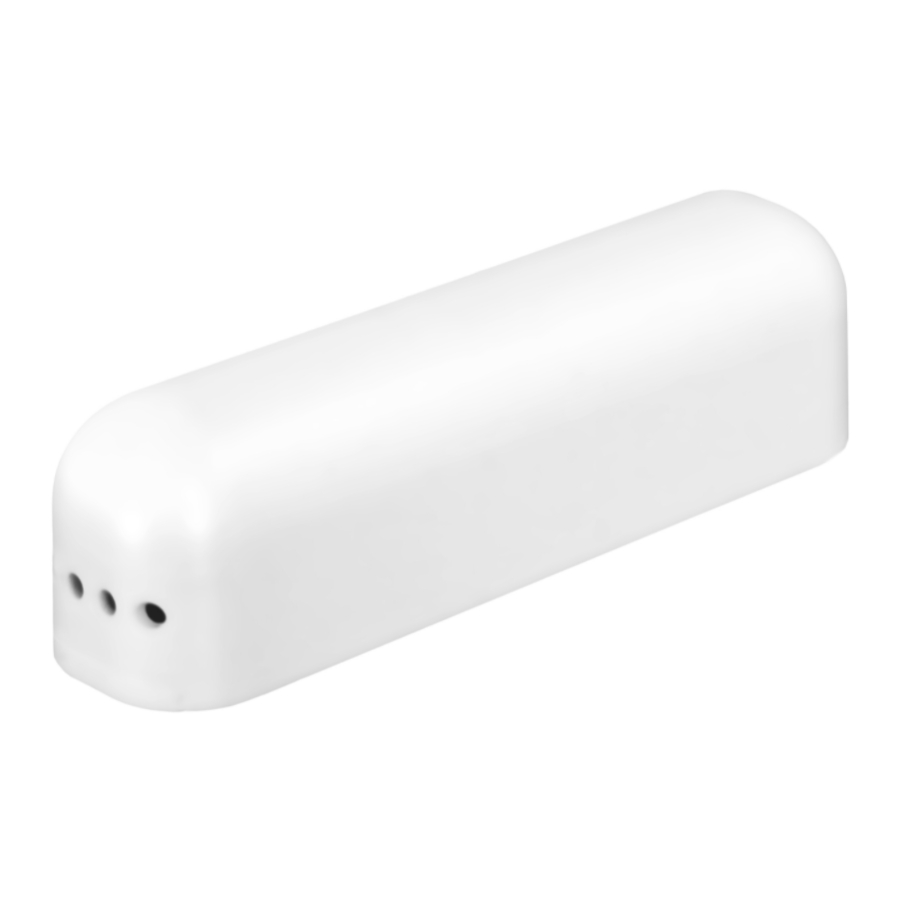

Mold detector
KU: POPE701202

Quickstart

This is a ecure Alarm Sen or for Europe. To run this device please insert fresh 1 * 1/2 AA batteries. Please make sure the internal battery is fully
charged. Tripple clicking the tamper button includes (adds) and excludes (removes) the device. A click on the tamper witch will wake up the device. The
device supports the ecurity 2 framework with unauthenticated network keys. Please follow the instructions on the central controller when including. The
device also supports martstart. Please scan the QR code on the outlet cover of the device and your controller will add the device automatically when
powered up.

Important safety information

Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer,
distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this
equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.

What is Z-Wave?

Z-Wave is the international wireless protocol for communication in the mart Home. This device is suited for use in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and
every mains powered node can act as a repeater for other nodes (me hed network) in case the receiver is
not in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be u ed together with any other certified
Z-Wave device regardle
If a device supports ecure communication it will communicate with other devices secure as long as this
device provides the same or a higher level of security. Otherwise it will automatically turn into a lower level
of security to maintain backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.

Product Description

This device measures the three air quality parameters temperature, humidity and dew point an reports them to a central controller. Beside this, the device can
directly control groups of other Z-Wave devices on over- and undershooting a set temperature and/or humidity parameter. This can be used to establish control
loops for temperature and humidity. The device wakes up every 15 minutes to measure the values and it will send unsolicited reports when values change.
Additionally, the device will report all values on request.
The mold detector is actively monitoring the danger of mold in a room based on the temperature and humidity and will issue alarm warnings when critical air
conditions met. Wireless Alarm and red and a green blinking LED will indicate a mold condition. This local LED warning function is also available when the device
is not included in any Z-Wave network and works stand alone.

Prepare for Installation / Reset

Please read the user manual before installing the product.
In order to include (add) a Z-Wave device to a network it mu t be in factory default tate. Please make sure to reset the device into factory default. You can do
this by performing an Exclusion operation as described below in the manual. Every Z-Wave controller is able to perform this operation however it is recommended
to use the primary controller of the previous network to make sure the very device is excluded properly from this network.

Reset to factory default

This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable.
Remove the cover, press the button for 5 seconds until it flashes green. Release the button and press the button again until the blinking stops.
afety Warning for Batteries
The product contains batteries. Please remove the batteries when the device is not used. Do not mix batteries of different charging level or different brands.

Installation

z 6
of brand and origin as long as both are suited for the same frequency range.
https://manuals.zwave.eu/backend/make.php?lang=EN&sku=POPE70...
22. 7. 20 9,
:52

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POPE701202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Popp POPE701202

  • Page 1 Popp Mold detector KU: POPE701202 Quickstart This is a ecure Alarm Sen or for Europe. To run this device please insert fresh 1 * 1/2 AA batteries. Please make sure the internal battery is fully charged. Tripple clicking the tamper button includes (adds) and excludes (removes) the device. A click on the tamper witch will wake up the device. The device supports the ecurity 2 framework with unauthenticated network keys.
  • Page 2 To open the POPP Mold Detector, press the lock with your finger and pull the housing cover upwards. Tamper button The tamper button is located on the side of the POPP Mold Detector. This button is also used for inclusion and exclusion. Functionality Once the device is powered up it will start monitoring the air parameters and warn of mold using the local red and green LED.
  • Page 3 https://manuals.zwave.eu/backend/make.php?lang=EN&sku=POPE70... communicate with the device, a static controller C is needed in the network. This controller will maintain a mailbox for the battery operated devices and store commands that can not be received during deep sleep state. Without such a controller, communication may become impossible and/or the battery life time is significantly decreased.
  • Page 4 https://manuals.zwave.eu/backend/make.php?lang=EN&sku=POPE70... Setting De cription 900 - 65535 econds disabled Parameter 5: Temperature Upper Watermark value This parameter defines a temperature. f the measured temperature surpasses this watermark a BAS C command is sent into Association Group 2 ize: 2 Byte, Default Value: 0 Setting De cription 1 - 1000...
  • Page 5 https://manuals.zwave.eu/backend/make.php?lang=EN&sku=POPE70... Setting De cription 0 - 255 Value Technical Data Dimen ion 25x25x10 mm Weight 11.73 gr Hardware Platform ZM5101 4251295701202 IP Cla IP 20 Voltage Battery Type 1 * 1/2 AA Device Type Notification ensor Generic Device Cla Notification ensor Specific Device Cla Routing Notification ensor Firmware Ver ion...
  • Page 6 https://manuals.zwave.eu/backend/make.php?lang=EN&sku=POPE70... ecurity 2 Explanation of Z-Wave specific terms Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways,Remote Controls or battery operated wall controllers. Slave — is a Z-Wave device without capabilities to manage the network. laves can be sensors, actuators and even remote controls. Primary Controller —...
