Your microscope may be equipped with an optional automated
Initializing the
Reflex aperture system. For visual microscopy applications, you can
Reflex aperture

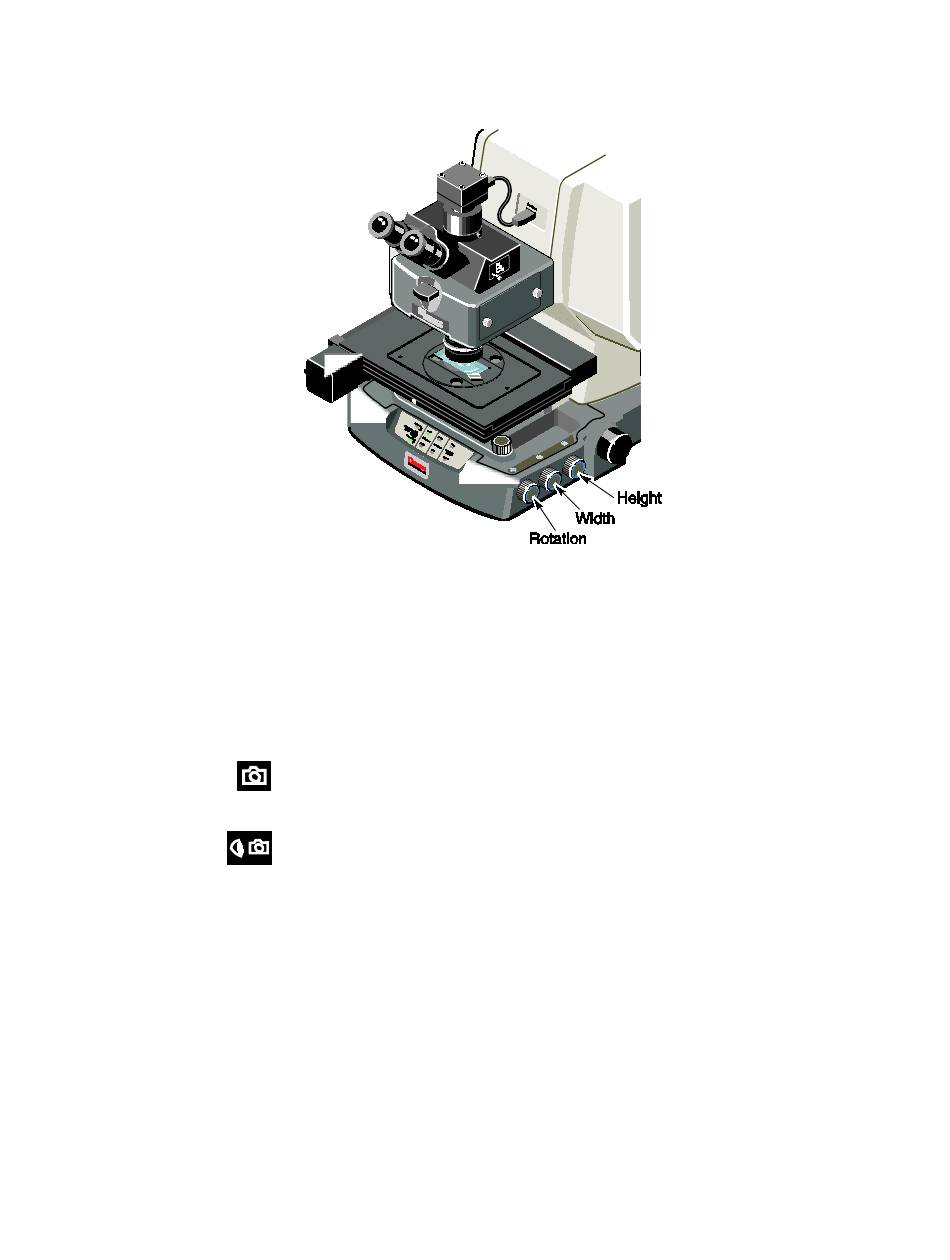

adjust the aperture manually, using the controls on the right side of
the microscope.
For all other applications, use the controls in OMNIC Atlµs or
µView software to adjust the size, shape and orientation of this
aperture.
Be sure to set the view selector to allow viewing through the camera
(or through the eyepieces and the camera) when setting the aperture
using software.
Pull the control rod completely out to direct visible light to the
camera only.
Pull the control rod half-way out to direct visible light to the camera
and to the eyepieces.
Continuµm User Guide 43
