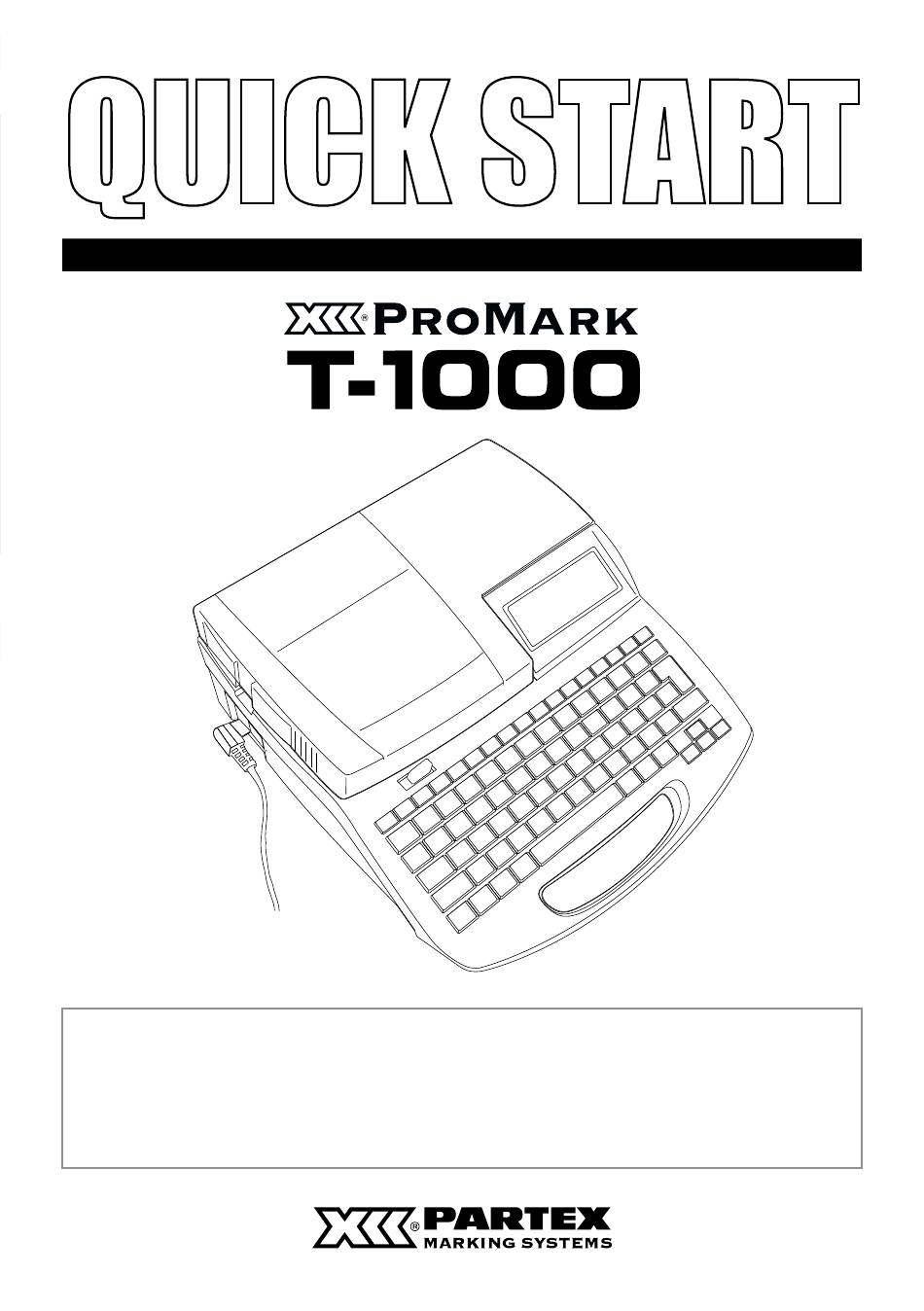

Partex ProMark T-1000 Quick Start

Download this manual

C A B L E I . D . P R I N T E R

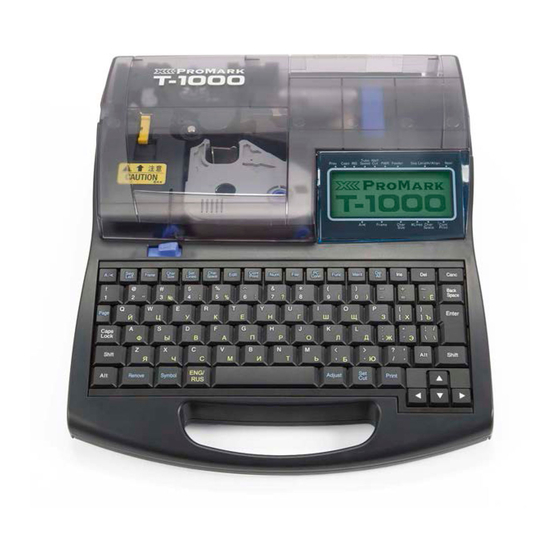

Thank you for purchasing your new PROMARK T-1000 printer. The T-1000 is a professional, por-

table, thermal-transfer printer for Partex profiles, with which you can easily make your own mar-

kers for wires, cables and electrical components. The printer is compatible with Partex software

that enables you to import files directly from Excel. The PROMARK T-1000 is the perfect solution

for contractors, electricians and manufacturers of control cabinets.

Need help?

Do you have a question about the ProMark T-1000 and is the answer not in the manual?

Page 1 Partex profiles, with which you can easily make your own mar- kers for wires, cables and electrical components. The printer is compatible with Partex software that enables you to import files directly from Excel. The PROMARK T-1000 is the perfect solution for contractors, electricians and manufacturers of control cabinets.
Page 2 INSTALLING ACCESSORIES Check that the power COVER switch is turned off. HOUSEHOLD POWER OUTLET The shape of the power plug varies according to country. Attach the AC adapter (N14584). Open the cover. Install the ribbon cassette. Remove the stopper and take up any slack in the ribbon.
Page 3 Install the tube attachment. Align the hooks on the tube attach- ment with the holes in the printer. Push the tube attachment in until it clicks into place. Insert a tube. Push the tube in until its tip touches the transport roller 2. Transport roller 2 Insert the tube with the curve oriented as shown in the figure.
Page 4 INPUTTING CHARACTERS [Example] Printing “C-2” onto PO-05 profile. ATTENTION! IF YOU ACCIDENTALLY INPUT AN INCORRECT PRINTED RESULTS CHARACTER ex. Although you meant to enter “C-2”, While holding down [Shift], you entered “C=2” by mistake. press [C]. Press [ ] and [ ] and move the cur- sor box to the position of the “2”.
