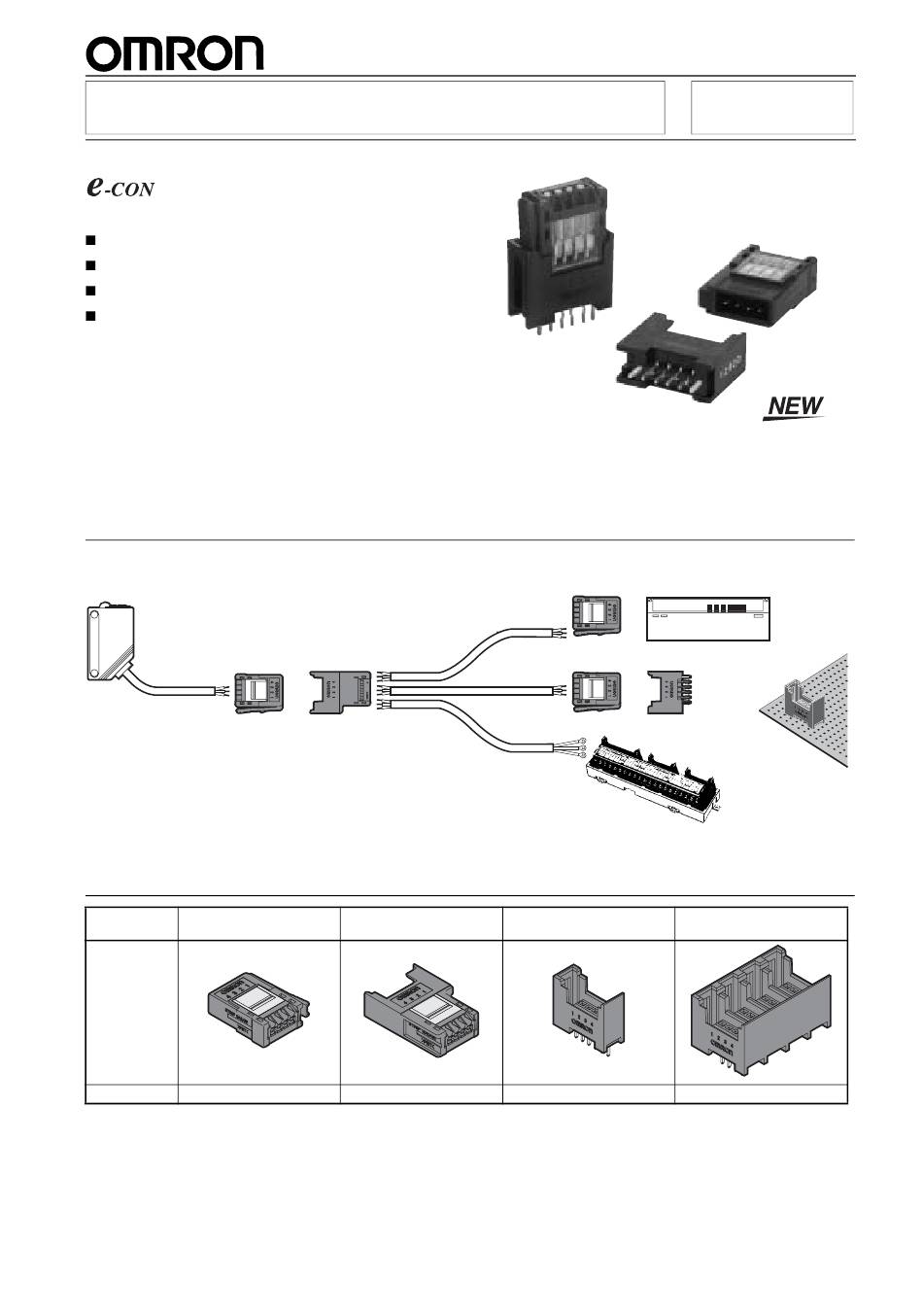

Easy-wire Connectors for Industrial Components
Easy-wire Connectors with
* Specifications; Ideal for
Connecting Sensors.
Use industry-proven spring clamps for wiring.
No special tools required for easy wiring.
Rewiring (repairing) is possible.
Each Connector accepts any wire size from
2
AWG28 (0.08 mm
) to AWG20 (0.5 mm
(External sheath diameter: 1.5 mm max.)
Note:
These specifications are currently being promoted for
standardization by manufacturers of FA components and
connectors. Connector specifications are disclosed only
for the mating portions.
• No special tools are required, making wiring easier.
• Compact design assists in conserving space in equip-
ment and machines.
Wiring Configuration Example
Sensor with prewired cable
Linking cables
XN2A-1430
Ordering Information
Type
Cable Plug Connector
Appearance
Model
XN2A-1430
This datasheet has been downloaded from
2
).
XN2B-1430
Cable Socket Connector
XN2B-1430
Connecting to FA Components
• FA components with industry-
XN2A-1430
standard sensor connectors
• Original Controller PCBs
XN2A-1430
• FA components that
connect via terminal blocks
Single-socket PCB Socket
Connector
XN2D-1431
http://www.digchip.com
at this
XN2
XN2D-1431
Four-socket PCB Socket
Connector
XN2D-4431
1
page
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omron XN2
Summary of Contents for Omron XN2
- Page 1 Easy-wire Connectors for Industrial Components Easy-wire Connectors with * Specifications; Ideal for Connecting Sensors. Use industry-proven spring clamps for wiring. No special tools required for easy wiring. Rewiring (repairing) is possible. Each Connector accepts any wire size from AWG28 (0.08 mm ) to AWG20 (0.5 mm (External sheath diameter: 1.5 mm max.) Note:...
- Page 2 1. This value is the contact resistance of the connector. 2. The temperature is limited, however, to the maximum operating temperature for the cables. 3. When using cables with a wire diameter of 0.16 mm or smaller, contact your OMRON sales representative. Materials and Finish...
- Page 3 Single-socket PCB Socket Connector Four-socket PCB Socket Connector XN2D-1431 XN2D-4431 25.9 19.5 Applicable PCB Dimensions (Top View) t=1.6±0.2 6.5 (pitch) 19.5±0.1 6.5±0.05 (pitch) +0.05 2±0.05 (pitch) dia. −0.10 6.75 6.75 6±0.1 9.05 1±0.05 Exterior of Four-socket PCB Connector 15.8 2 (pitch) 6.75 15.8 2 (pitch)
- Page 4 Safety Precautions General Precautions Precautions for Correct Use • Do not pull on the Connectors or cables. Doing so may cause Wiring damage to the Connectors or cause the cables to disconnect . • Insert one wire into each insertion hole. Inserting two or more •...
