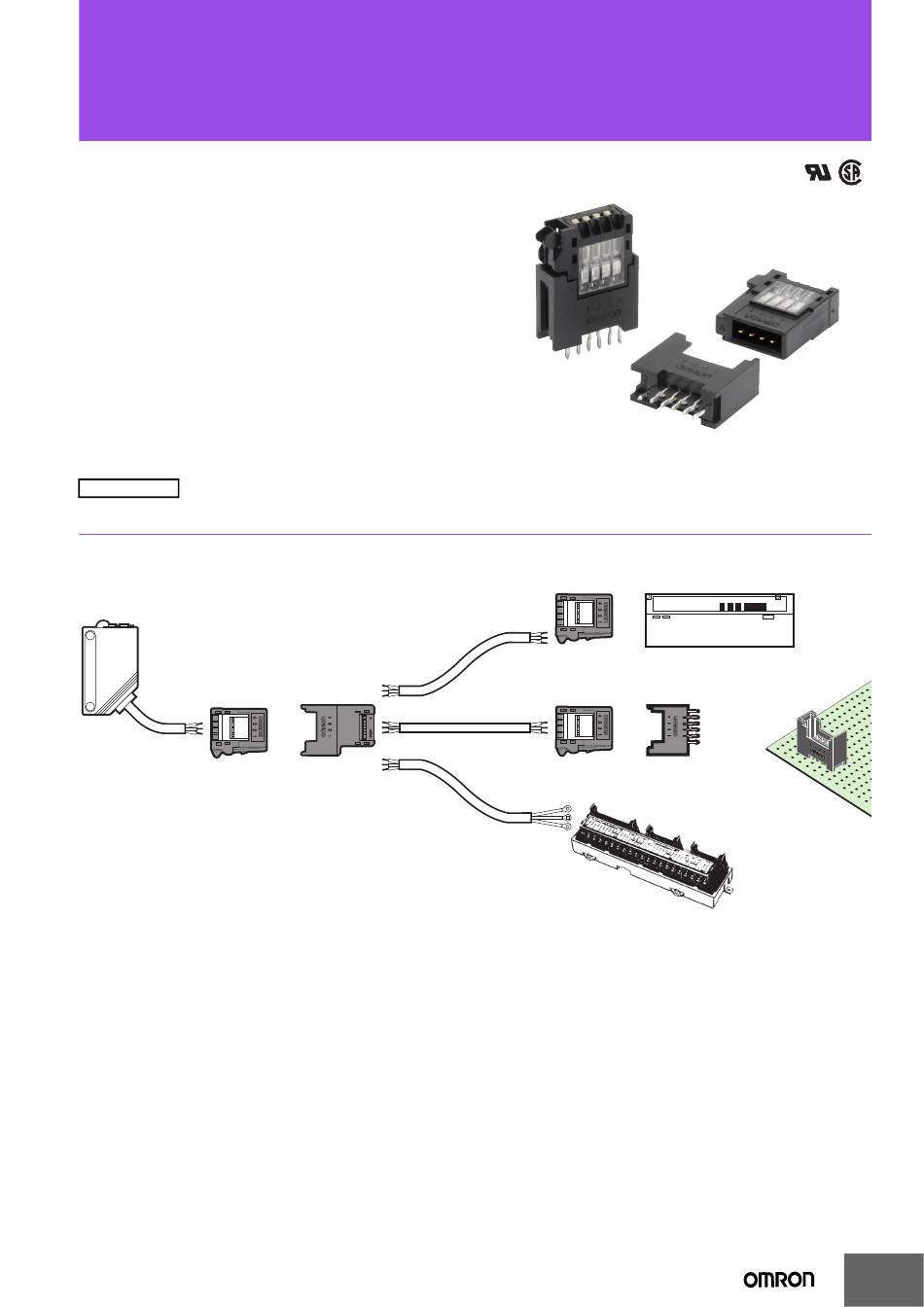

Easy-wire Connectors for Industrial Components
XN2
Easy-wire Connectors with
e
-CON
* Specifications; Ideal for
Connecting Sensors.
■ Use industry-proven spring clamps for wiring.
■ No special tools required for easy wiring.
■ Rewiring (repairing) is possible.
■ Each Connector accepts any wire size from
stranded wire AWG28 (0.08 mm
(External sheath diameter: 1.5 mm max.)
■ With the simple tool Jig, assembly can be completed for 4
wires simultaneously, is available.
Note: *E-con specifications are currently being promoted for standardization by
manufacturers of FA components and connectors. Connector specifications are
disclosed only for the mating portions.
RoHS Compliant
Wiring Configuration Example
Sensor with prewired cable
Linking cables
XN2A
2
2
) to AWG20 (0.5 mm
).
XN2B
Connecting to FA Components
• FA components with e-CON connectors
XN2A
• Original Controller PCBs
XN2A
XN2D
• FA components that connect
via terminal blocks
1
Advertisement
Table of Contents
Related Manuals for Omron XN2
Summary of Contents for Omron XN2
- Page 1 Easy-wire Connectors for Industrial Components Easy-wire Connectors with -CON * Specifications; Ideal for Connecting Sensors. ■ Use industry-proven spring clamps for wiring. ■ No special tools required for easy wiring. ■ Rewiring (repairing) is possible. ■ Each Connector accepts any wire size from stranded wire AWG28 (0.08 mm ) to AWG20 (0.5 mm (External sheath diameter: 1.5 mm max.)
- Page 2 *1. The temperature is limited, however, to the maximum operating temperature for the cables. *2. Solid wires and pretinning wires cannot be used. *3. Please consult your OMRON representative when using the wire diameter φ0.16 or less. Materials and Finish...
- Page 3 Dimensions (Unit: mm) Cable Plug Connector Cable Socket Connector XN2A-1@70 XN2B-1470 2 (pitch) 2 (pitch) 5.05 15.8 6.75 17.6 12.3 (Strip gauge) 23.2 1.2 dia. (internal) 1.65 dia. (external) 1.65 1.05 12.85 Dimensions Dimension (mm) No. of contacts 13.8 15.8 11.2 17.8 10.0...
- Page 4 Four-socket PCB Socket Connector XN2D-4471 25.9 19.5 Applicable PCB Dimensions (Top View) t=1.6±0.2 6.5 (pitch) 19.5±0.1 6.5±0.05 (pitch) +0.05 dia. 2±0.05 (pitch) −0.10 6.75 ± 9.05 ± 0.05 15.8 Exterior of Four-socket PCB Connector 6.75 2 (pitch) Tool Jig Tool Jig for XN2A-14@0 (except for those with 3 pins)/ (2) Insert the 4 wires to insertion hole.
- Page 5 Assembly Instructions Preparing the Cable (3) Insert the screwdriver into the Operating lever release slot, and gently pull Align the cable with the guide (white) Release slot back the lever until a click is marked STRIP GAUGE on the side heard by resetting the lever.
- Page 6 Electronic and Mechanical Components Company Regional Contact Americas Europe https://www.components.omron.com/ http://components.omron.eu/ Asia-Pacific China https://ecb.omron.com.sg/ https://www.ecb.omron.com.cn/ Korea Japan https://www.omron-ecb.co.kr/ https://www.omron.co.jp/ecb/ © OMRON Corporation 2012-2019 All Rights Reserved. Cat. No. G044-E1-04 In the interest of product improvement, specifications are subject to change without notice. 1019(0412)(O)
