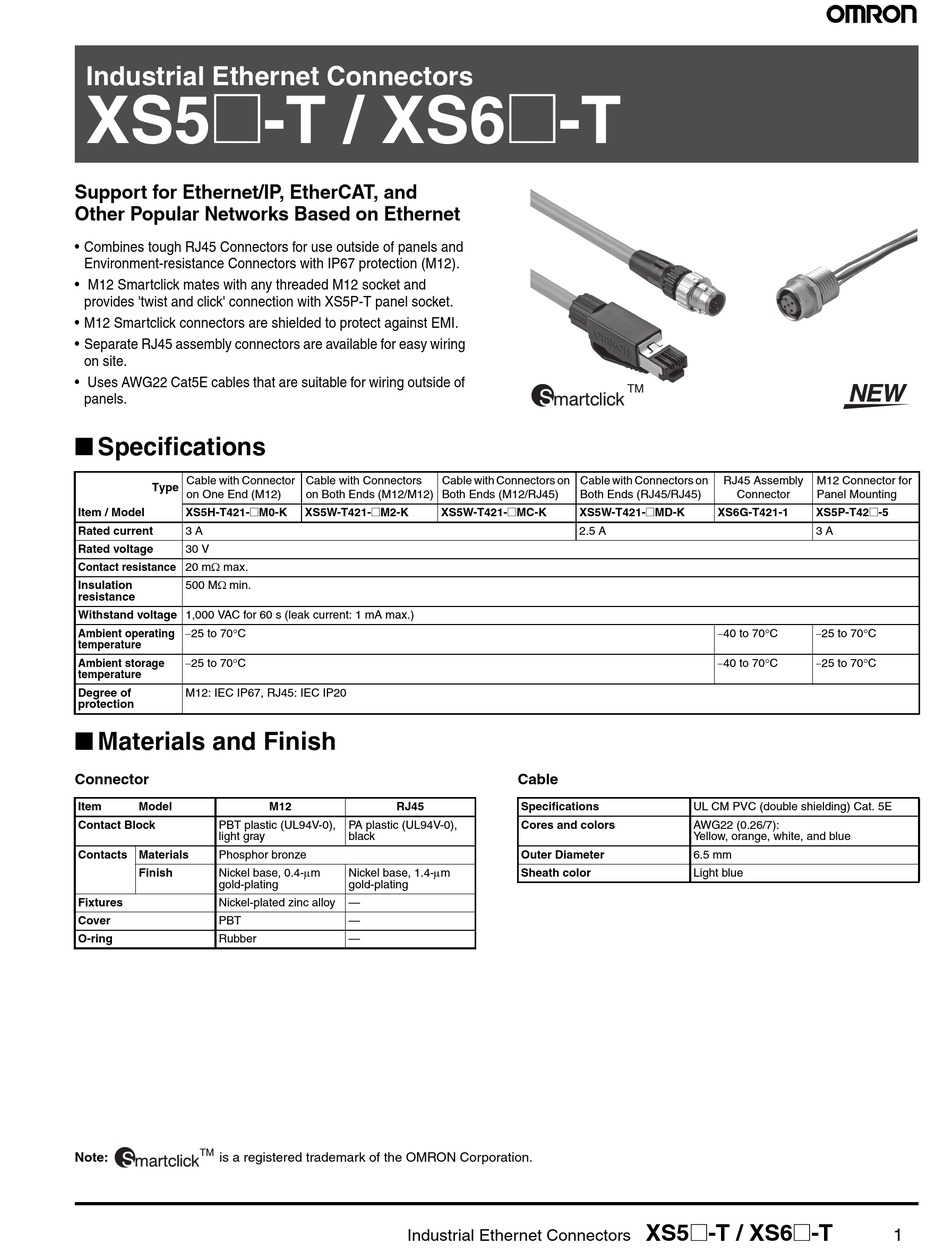

Industrial Ethernet Connectors
XS5@-T / XS6@-T
Support for Ethernet/IP, EtherCAT, and
Other Popular Networks Based on Ethernet
• Combines tough RJ45 Connectors for use outside of panels and
Environment-resistance Connectors with IP67 protection (M12).
• M12 Smartclick mates with any threaded M12 socket and
provides 'twist and click' connection with XS5P-T panel socket.
• M12 Smartclick connectors are shielded to protect against EMI.
• Separate RJ45 assembly connectors are available for easy wiring
on site.
• Uses AWG22 Cat5E cables that are suitable for wiring outside of
panels.
■ Specifications
Cable with Connector
Type
on One End (M12)
Item / Model XS5H-T421-@M0-K
Rated current 3 A
Rated voltage 30 V
Contact resistance 20 mΩ max.
Insulation 500 MΩ min.
resistance
Withstand voltage 1,000 VAC for 60 s (leak current: 1 mA max.)
−25 to 70°C
Ambient operating
temperature
−25 to 70°C
Ambient storage
temperature
Degree of M12: IEC IP67, RJ45: IEC IP20
protection
■ Materials and Finish
Connector
Item Model
Contact Block PBT plastic (UL94V-0),
light gray
Contacts Materials Phosphor bronze
Finish Nickel base, 0.4-μm
gold-plating
Fixtures Nickel-plated zinc alloy
Cover PBT
O-ring Rubber
TM
Note: is a registered trademark of the OMRON Corporation.
Cable with Connectors Cable with Connectors on
on Both Ends (M12/M12) Both Ends (M12/RJ45)
XS5W-T421-@M2-K XS5W-T421-@MC-K
M12 RJ45
PA plastic (UL94V-0),
black
Nickel base, 1.4-μm
gold-plating
—
—
—
Industrial Ethernet Connectors
TM
Cable with Connectors on
Both Ends (RJ45/RJ45)
XS5W-T421-@MD-K
2.5 A
Cable
Specifications UL CM PVC (double shielding) Cat. 5E
Cores and colors AWG22 (0.26/7):
Yellow, orange, white, and blue
Outer Diameter 6.5 mm
Sheath color Light blue
XS5@-T / XS6@-T
RJ45 Assembly M12 Connector for
Connector Panel Mounting
XS6G-T421-1 XS5P-T42@-5
3 A
−40 to 70°C −25 to 70°C
−40 to 70°C −25 to 70°C
1
