ITRON CCU 100 Quick Reference Manual

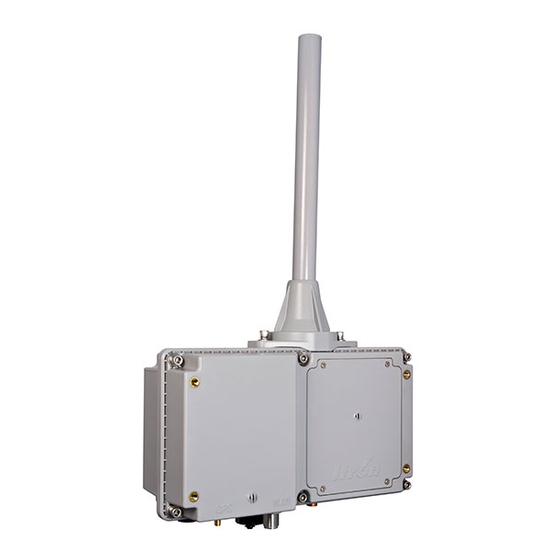

CCU 100 and Repeater 100
Basic Assembly
Quick Reference Guide
Thank you for purchasing Itron's CCU 100 or Repeater 100.
Complete CCU 100 and Repeater 100 documentation
(CCU 100 and Repeater 100 Installation Guide) can be
found at Itron's support Web site: http://support.itron.com
(available for registered users).

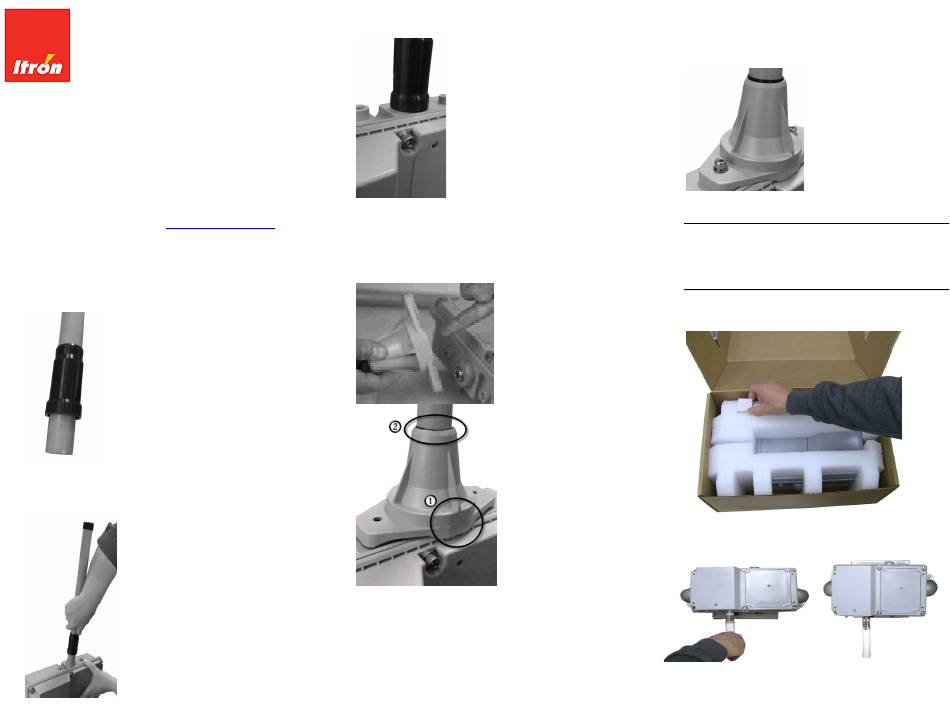

Attach the 900 MHz Antenna

1. Slide the black rubber boot onto the base of the
antenna as shown in the following illustration.
2. Screw the antenna onto the top of the CCU/Repeater.
Be careful not to cross-thread the connectors. Tighten
until snug, but do not over-tighten.
3. Push the rubber boot as close as possible to the top of
the CCU as shown in the following illustration.
4. Slide the antenna sleeve over the antenna, ensuring
that the front of the antenna sleeve (1) is to the front of
the CCU/Repeater.
The black rubber boot must be visible from the top (2)
of the antenna sleeve.
5. Using the included screws and washers, screw the
antenna sleeve to the top of the CCU/Repeater.
Tighten the screws to 5 to 6 in/lbs.
Antenna sleeve > flat washer > lock washer > screw

To attach the local 4G WAN antenna

Warning Do not install an 8.15 dBi antenna directly on
the CCU. Antenna installation directly on the CCU will
compromise mechanical integrity and will not meet the
compliance requirement for a loss of 2.2 dB.
1. Remove the 4G WAN antenna from the main CCU
shipping box.
2. Attach the 4G WAN antenna on the N-Connector on
the bottom of the CCU labeled WAN.
