100W/100W+ and 100WP/100WP+ Datalogging
Water ERT Module Installation Guide
TDC-0909-006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ITRON 100W

Summary of Contents for ITRON 100W

  • Page 1 Water Solutions 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide TDC-0909-006...
  • Page 2 Warning This unit cannot be modified and is not repairable. Attempts to modify or repair this device will void the warranty. TDC-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide Proprietary and Confidential...
  • Page 3 The Federal Aviation Administration prohibits operating transmitters and receivers on all commercial aircraft. When powered, ERT modules are considered operating transmitters and receivers and cannot be shipped by air. All product returns must be shipped by ground transportation to Itron.
  • Page 4 TDC-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide Proprietary and Confidential...

  • Page 5: Table Of Contents

    Required Tools and Hardware ......................16 Wall Mount Installation ........................18 Required Mounting Tools and Hardware ..................18 100W/100W+ and 100WP/100WP+ ERT Module Installation in a New Lid ........20 Base Mount Installation ........................20 Required Mounting Tools and Hardware ..................20 Shelf Mount Installation ........................
  • Page 6 Contents Chapter 5 Optional Direct Connect Remote Antenna Installation ......34 100W/100W+ and 100WP/100WP+ ERT Module Models for use with Remote Antennas ....34 Industry Canada Conformity ......................35 Installing the Remote Antenna ......................35 Appendix A Using an Inline Connector ..............39 Appendix B Using the Itron Splice Kit ..............

  • Page 7: Chapter 1 Before You Begin

    100WP/100WP+ ERT Module Models on page 4. An optional Itron Leak Sensor is available for all three configurations to provide leak monitoring capability. 100W/100W+ and 100WP/100WP+ ERT module configurations provide an easy interface to several register types. The 20-inch cable variant allows meter manufacturers to mount the ERT module directly to their respective meter registers before delivery to the installer.

  • Page 8: Related Documents

    PUB-0063-001 Water Meter Compatibility List PUB-0063-002 mlogonline™ Network Leak Monitoring System User Guide TDC-0792-XXX Note XXX designates the document revision and is subject to change without notice. TDC-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide Proprietary and Confidential...

  • Page 9: Chapter 2 About The 100W/100W+ And 100Wp/100Wp+ Ert Module

    The 100W/100W+ and 100WP/100WP+ ERT modules are capable of reading 9-digit registers. The 100W/100W+ may be programmed to truncate up to three digits. Field Deployment Manager (FDM) provides the programming tool to set the 100W/100W+ for your register's dial parameters.

  • Page 10: 100W/100W+ And 100Wp/100Wp+ Ert Module Models

    • Cut Cable Flag • 100W/100W+ encoder ERT module. The Cut Cable Flag sets if the LGR Flag is active for 24 hours. • 100WP/100WP+ pulser ERT module. The Cut Cable Flag sets if the LGR Flag is active two consecutive times.
  • Page 11 100WP+ pulser, 20-in. cable register connect, direct connect remote antenna integral connector ERW-1300-319 100W pulser, 20-in. cable register connect, direct connect remote antenna, and Leak Sensor integral connectors ERW-1300-220 100W+ pulser, 20-in. cable register connect, direct connect remote antenna, and Leak Sensor integral...

  • Page 12: Itron Security Manager (Ism)

    About the 100W/100W+ and 100WP/100WP+ ERT Module Itron Security Manager (ISM) Users have the option of enabling the ISM enhanced security in the 100W+ and 100WP+ ERT module. ISM is a component of a ChoiceConnect system. ChoiceConnect system security applies to the RF communications between the handheld computer, Mobile Collector, or Fixed Network system and the ERT module.

  • Page 13: 100W/100W+ And 100Wp/100Wp+ Ert Module Transmission Modes

    About the 100W/100W+ and 100WP/100WP+ ERT Module 100W/100W+ and 100WP/100WP+ ERT Module Transmission Modes The 100W/100W+ and 100WP/100WP+ ERT module can be set to transmit in fixed network, mobile high power, mobile and handheld, or hard to read mobile and handheld mode. •...

  • Page 14: 100Wp/100Wp+ Operating Modes

    For SCM and SCM+, the 100W/100W+ default bubble-up rate is 9 seconds. o For NIM, the 100W/100W+ default bubble-up rate is 5 minutes. When the ERT module is set for NIM, the 100W/100W+ transmits a contingency SCM+ message every minute. NIM mode is configured when the module detects an attached register or by programming NIM mode with a programming device.

  • Page 15: 100W+ And 100Wp+ Ert Module Geo Mode

    100W+ and 100WP+ ERT module geo mode reduces infrastructure requirements by improving network coverage. The 100W+ an100WP+ ERT module geo mode technology addresses meters with isolated RF impairments allowing hard-to-read ERT modules to be read by a neighboring ERT module with good network coverage.

  • Page 16: Chapter 3 Initializing, Connecting, And Programming The Ert Module

    H A P T E R Initializing, Connecting, and Programming the ERT Module This chapter provides the instructions to initialize and start up the 100W/100W+, program and start up the 100WP/100WP+, and connect the 100W/100W+ or 100WP/100WP+ ERT module. Initializing the 100W/100W+ ERT Module Caution To obtain an immediate reading, initialize the 100W/100W+ with an approved handheld computer.

  • Page 17: Programming The 100Wp/100Wp+ Ert Module

    39). Connecting to a Meter Register Using a Cable You may connect the 100W/100W+ and 100WP/100WP+ ERT module to the water meter register using the 5-foot or 20-inch cable. Caution ERT module wire terminations must be properly sealed with a non-conductive gel material to prevent water intrusion (otherwise, this configuration should not be used in a pit box environment).
  • Page 18 Initializing, Connecting, and Programming the ERT Module To connect the 100W/100W+ to the register Connect the 100W/100W+ wires to the register screw terminals according to the following table. 100W/100W+ wire color Red (data) Black (power/clock) White (ground) Register screw terminal...

  • Page 19: Connecting The 100Wp/100Wp+ To A Remote Meter Register

    100W/100W+ and 100WP/100WP+ ERT module products. Refer to the respective meter reading application for specific instructions. • When comparing the actual register value to that reported by the 100W/100W+ and 100WP/100WP+ ERT module, please keep in mind the ERT module's consumption value is updated once an hour when it is in a run mode.

  • Page 20: Chapter 4 Installing The 100W/100W+ And 100Wp/100Wp+ Ert Module

    Plastic lids and other composite materials accept any installation methods described above. The 100W/100W+ and 100WP/100WP+ ERT modules are temperature rated from -20º C to +60º C. Do not install the 100W/100W+ and 100WP/100WP+ ERT module in locations that may exceed the temperature rating.

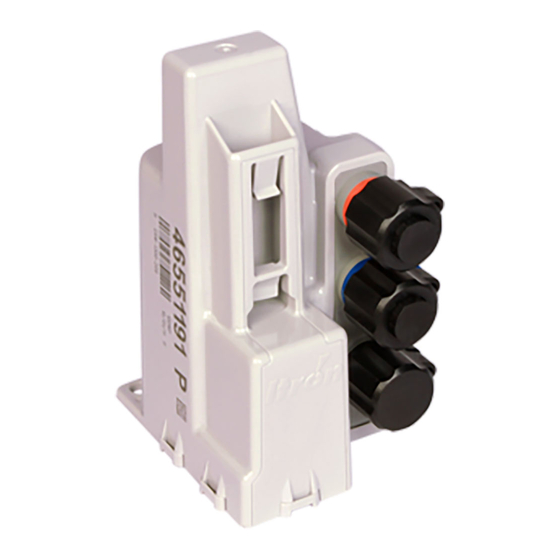

  • Page 21: 100W/100W+ And 100Wp/100Wp+ Ert Module With Integral Connectors

    ERT module using an Itron Security Seal (Itron part number MSC-0018-001). Cable ties are not shipped with the 100W/100W+ and 100WP/100WP+ ERT module, but can be ordered from Itron. Use the protective cover (on the ERT module side) in the field for up to one year.

  • Page 22: Required Tools And Hardware

    Rod-driving tool (optional) • Rod cutting tool The 1/2-inch diameter rod hole is shown in the following 100W/100W+ and 100WP/100WP+ ERT module bottom and side views. To install the 100W/100W+ and 100WP/100WP+ ERT module on a rod 1. Remove the pit lid. Inspect the area to make sure there are no buried cables, pipes, or other obstructions.
  • Page 23 You may secure the ERT module to the rod with a self- drilling screw through the hole in the top of the ERT module's rod mount cavity. The screw mounting hole is shown in the following product image. TDC-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide Proprietary and Confidential...

  • Page 24: Wall Mount Installation

    • Do not use gel connectors in pit environments; use only Itron-approved splice kits or inline connectors. The ERT module works accurately with Itron-approved cable type and lengths up to 300 feet. Required Mounting Tools and Hardware • Drill and drill bits appropriate for mounting location material.
  • Page 25 Installing the 100W/100W+ and 100WP/100WP+ ERT Module To install the 100W/100W+ and 100WP/100WP+ ERT module using the wall mount procedure 1. Select a vertical surface in the pit box or on a wall (for example, an ERT module mounted in a basement).

  • Page 26: 100W/100W+ And 100Wp/100Wp+ Ert Module Installation In A New Lid

    Installing the 100W/100W+ and 100WP/100WP+ ERT Module 100W/100W+ and 100WP/100WP+ ERT Module Installation in a New Lid This section describes installation of the 100W/100W+ and 100WP/100WP+ ERT module in a pit lid without a drilled hole. To install the 100W/100W+ and 100WP/100WP+ ERT Module in new lids 1.

  • Page 27: Shelf Mount Installation

    ERT module mounting tabs. Shelf Mount Installation This section describes 100W/100W+ and 100WP/100WP+ ERT module installation using a shelf mount adapter to mount the ERT module in a pit lid slot. Caution Observe the following guidelines for mounting the ERT module using the shelf mount procedure: •...

  • Page 28: Required Hardware

    2. Push the adapter into the opening gently until the adapter snaps into place. Insert the shelf mount adapter into the ERT module antenna slot pushing firmly with your thumb until the adapter tab locks into place in the ERT module antenna slot opening. TDC-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide Proprietary and Confidential...

  • Page 29: Through Lid Installation

    Through Lid Installation This section provides instructions to mount the 100W/100W+ and 100WP/100WP+ ERT module in a pit lid with a drilled, round 1-3/4-inch, 1-7/8-inch, or 2-inch hole. TDC-0909-006 100W/100W+ and 100WP/100WP+ Datalogging Water ERT Module Installation Guide...
