ITRON WaterMind v2 Installation Instructions

WaterMind
Advanced Logger
Installation Instructions

1 - Pre-installation Precaution

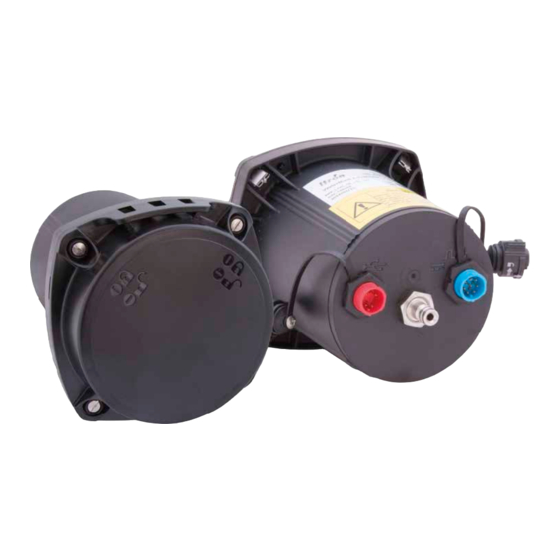

WaterMind v2 Advanced Logger is an accurate measuring device to be connected to a pipe for pressure monitoring and/or to a
water meter via wired pulse input and/or to an external power supply. It has built-in cellular equipment for data transfer.
To protect your safety, to ensure the proper measuring performance and to comply with warranty terms, please respect the
installation procedure described in this document.

1.1 Safety Advice for Pressure Monitoring Only

Only qualifi ed and trained personnel, familiar with hazards linked to water networks at high pressures, should install the
WaterMind v2 Advanced Logger.

1.2 Battery Handling

Batteries pose a fi re, explosion and severe burn hazard. Do not short circuit, disassemble, dispose of in fi re, heat,
expose to water, puncture or crush. Do not connect in reverse polarity.
Manufacturers Material Safety Data Sheets are available upon request.

1.3 Cellular Network and Battery Lifetime

WaterMind v2 Advanced Logger uses GSM/GPRS/3G communication networks for data transfer: 850/900/1800/1900MHz
(GSM) and 800/850/900/1900/2100MHz (UMTS). The performance of these networks depends on many parameters under the
responsibility of cellular operators and in no case is Itron's responsibility. .
However, the battery lifetime is impacted by the performance of the cellular network that it is connected to. The estimated
battery lifetime is based on a standard and correct performance of the cellular network and the respect of the recommended
confi guration by the user.

1.4 Declaration and Environmental Protection

WaterMind v2 Advanced Logger is conform with both relevant Union Harmonization Legislation Directives: 2014/53/EU (RED)
and 2011/65/EU (RoHS 2).
These approvals only apply to the WaterMind v2 Advanced Logger. Any accessories that may be delivered with the device are
not covered by these approvals.
WaterMind v2 Advanced Logger is protected against dust ingression, water jets and permanent immersion (IP68 acc. to
EN60529)
Full declaration of conformity is available at www.itron.com/watermind

1.5 Proximity to Users (RF Exposure)

This device in intended to be installed in un-manned locations. We recommend to maintain a distance of 0.25m (25cm)
between the device and users.
INSTALLATION
v2
