- 1 Insert a Threaded Plate into the Tube, and Align the Holes.
- 2 Remove Dirt Guard.
- 3 Fold out the Hoop, and Fold down the Pivot Arm.
- 4 Rotate the Pivot Arm up until the Hook Rests on the Bike Tire.
- 5 Feed the Strap through the Spokes of the Wheel.
- 6 Release the Wheelstrap, and Tuck It out of the Way.
- 7 Unload Bike, Fold in Hoop, Secure Pivot Arm.
- Download this manual
Advertisement
Table of Contents
Related Manuals for Yakima SingleSpeed

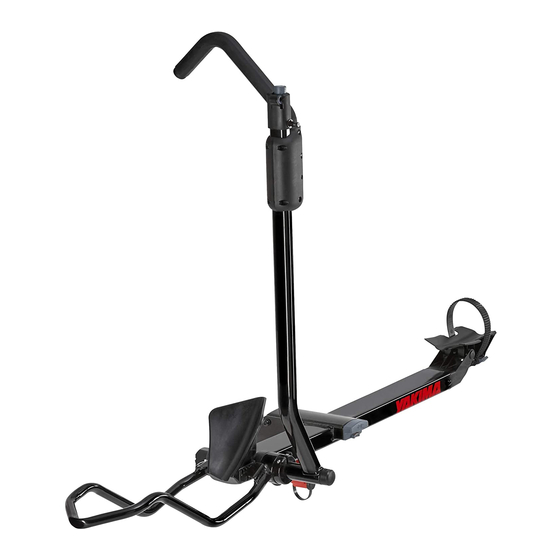

Summary of Contents for Yakima SingleSpeed

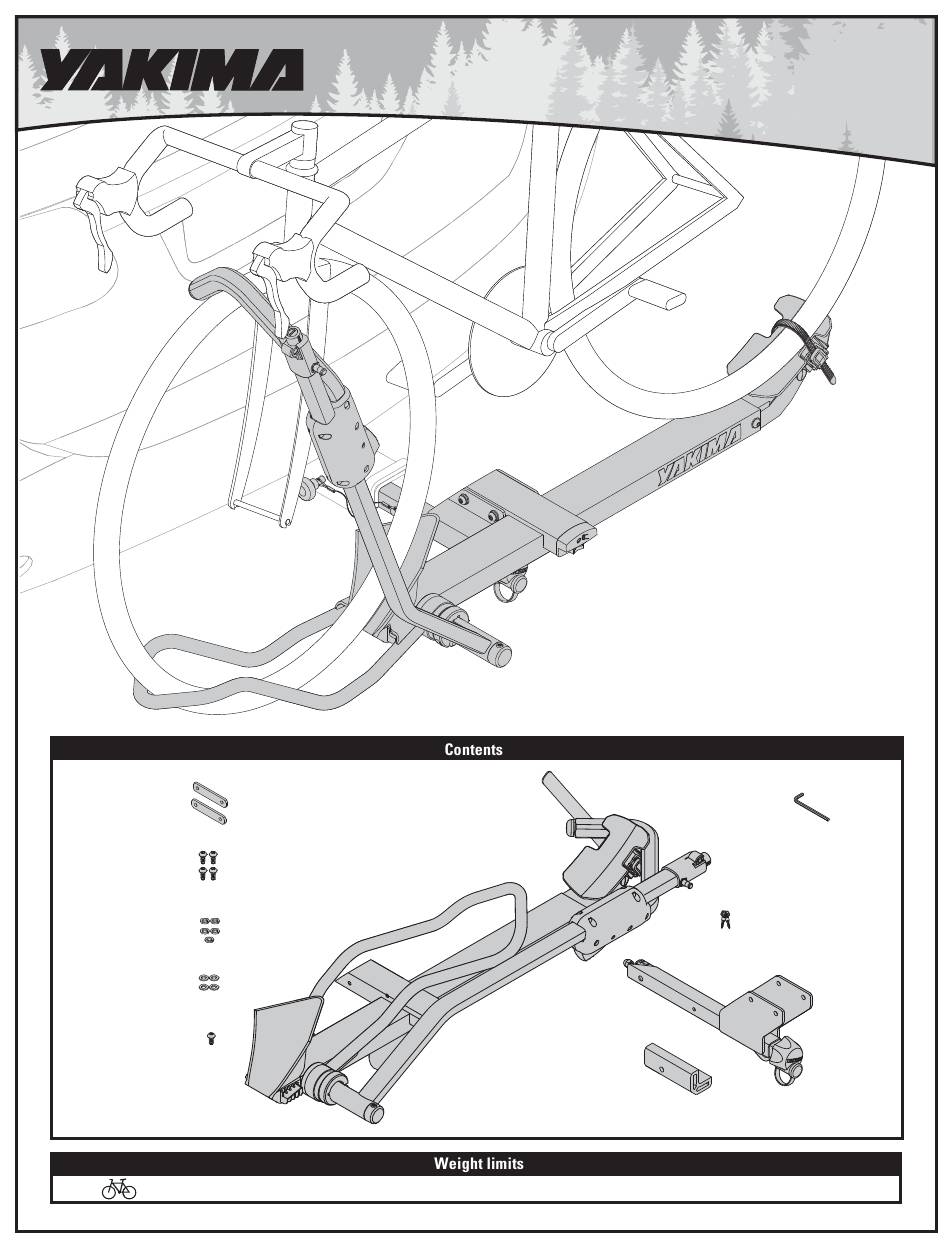

- Page 1 SingleSpeed threaded plate (2X) security wrench (1X) screw (4X) SingleSpeed (1X) key (2X) lock washer (5X) washer (4X) tongue (1X) adapter screw (1X) 2” adapter (1X) Per Bike 40lbs. / 18.1kg...
- Page 2 A. Insert a threaded plate into the tube, and align the holes. B. While holding the plate in place install one set of hardware. C. Rotate the tongue up to align the other hole and install a second set of hardware. D.
- Page 3 If you have a 1 ” hitch receiver use the security wrench to remove the adapter screw, and lock washer, then remove the 2” adapter. Insert tongue into hitch receiver. The hole in the base must align to the hole in the hitch receiver. ALIGN Remove dirt guard.
- Page 4 Tuck wheelstrap into slot at rear of wheeltray, and load your bike. Fold out the hoop, and fold down the pivot arm. Do not load a bike if it has a flat tire or a slow leak. Lost tire pressure may result in an insecure load.
- Page 5 Feed the strap through the spokes of the wheel. Rotate the wheel slightly, if necessary, and avoid the valve stem. Insert the strap end through the buckle. Pull hard to tighten. Compress the hook against the wheel by applying firm pressure.
- Page 6 Release the wheelstrap, and tuck it out of the way. Press the button, and raise the hook. While supporting the bike lower the hook arm.Carefully remove your bike. 1. Unload bike, fold in hoop, secure pivot arm. 1. Remove safety pin. 2.
- Page 7 In addition, some undersized receivers may not accept this product. If you do not know the capabilities of your hitch receiver, consult an automotive professional. Check out the collection of bike racks we offer.
