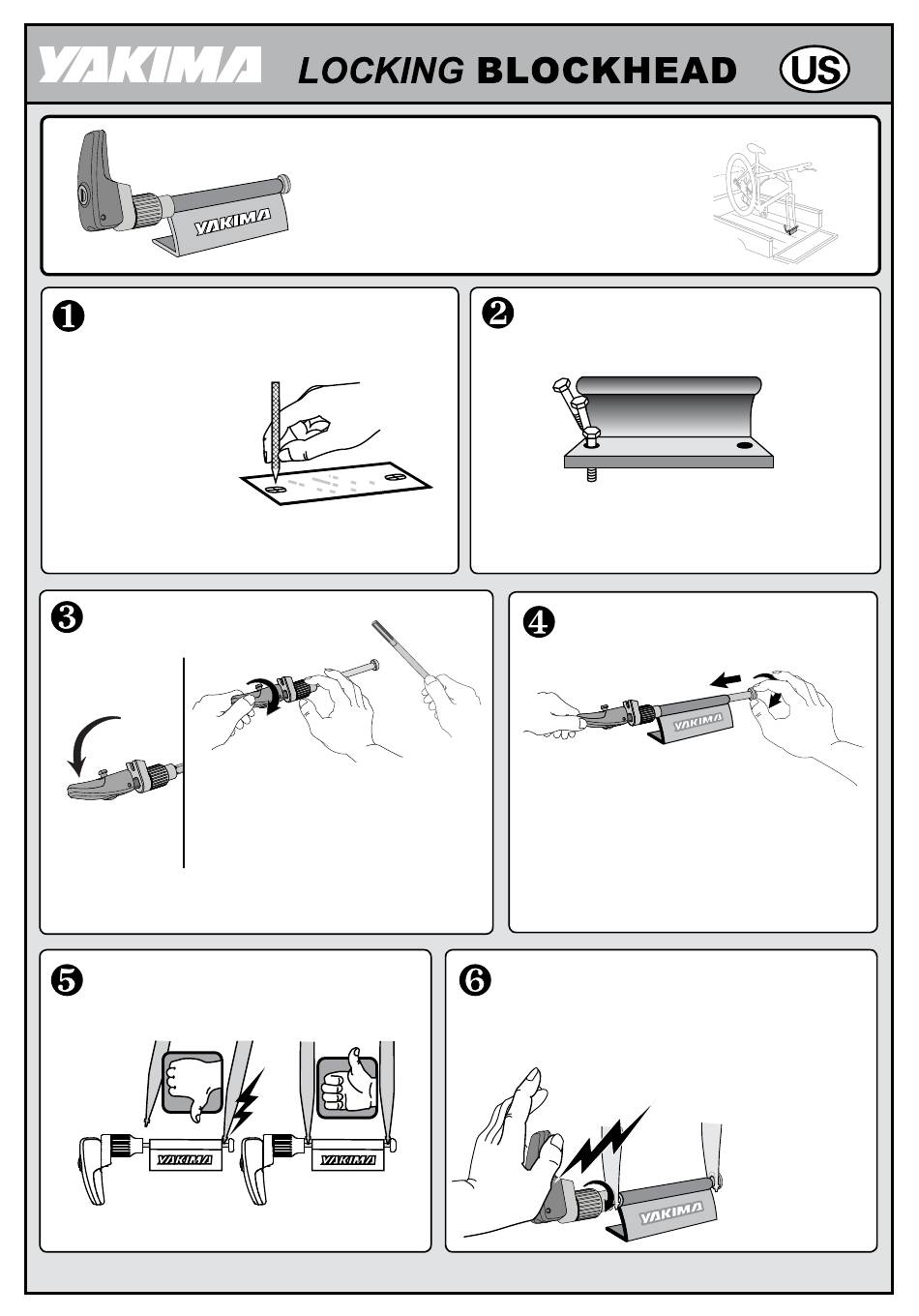

Use the template on the following page
to scribe two drilling points.
• Use 1/4" (6mm)
mounting
hardware.
• Always check
handlebar
clearance before
attaching block.
Remove shaft from handle.
Open handle.
NOTE: Shaft will turn with adjustment knob.
Set the bicycle forks onto the skewer.
1033592B-1/6
BlockHead attaches securely to flat
surfaces. Recommended Mounting
Hardware includes 1/4" (6mm) bolts or
screws, fender washers, and locking nuts.
Hold the adjustment
knob. Turn handle
clockwise to remove
the shaft.
Align block with drilled holes.
Pivot the bolts or screws into place.
Tighten hardware securely.
Test installation by pulling and shaking.
Replace skewer and tighten knob. Hold the
shaft at the far end. Join the handle with
the shaft, turn the shaft counter-clockwise.
NOTE: Adjustment knob will turn with shaft.
With lever open, tighten knob until the
lever closes with FIRM resistance.
Loosen or tighten the knob
as needed so that lever
closes with FIRM resistance.
Part #
Rev.B
1033592
