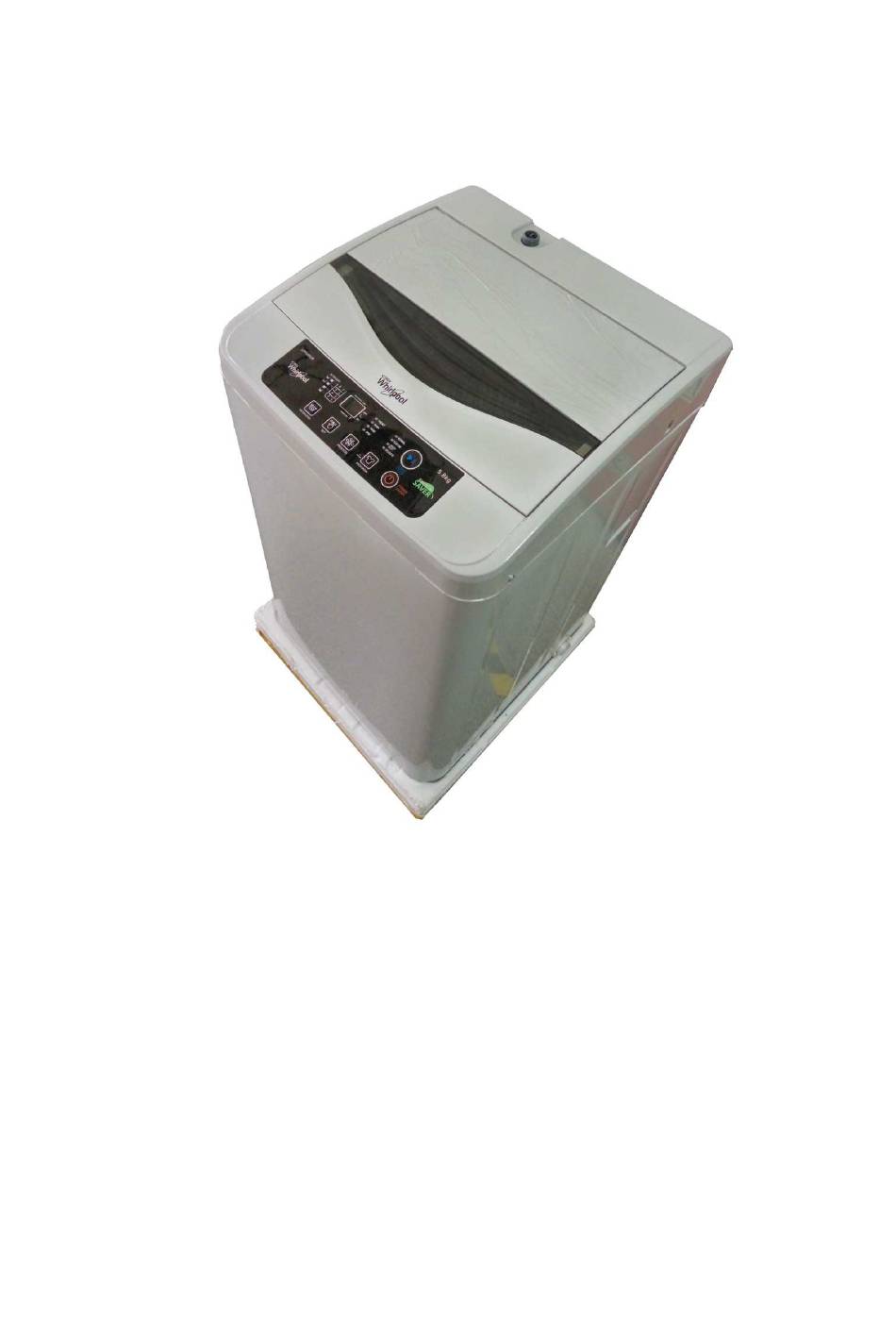

TECHNICAL & SERVICE MANUAL
SPECIFICATION
Power source
Overall dimension
Net weight
Power consumption
Motor output
Washing method
Water capacity
Water consumption
Pulsator speed
Spinner tub speed
Specification: Subject to change without notice.
AC 220V, 60Hz
500(W) × 515(D) ×900(H)
27kg
300W
150W
Automatic reverse turn
45 Liters
106 Liters (Regular wash cycle Water level: High)
170 r.p.m(DELICATE course 60 r.p.m)
850 r.p.m
LFP580GR(Philippine)
REFERENCE No. SM0102011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whirlpool LFP580GR
Summary of Contents for Whirlpool LFP580GR
- Page 1 LFP580GR(Philippine) TECHNICAL & SERVICE MANUAL SPECIFICATION Power source AC 220V, 60Hz Overall dimension 500(W) × 515(D) ×900(H) Net weight 27kg Power consumption 300W Motor output 150W Washing method Automatic reverse turn Water capacity 45 Liters Water consumption 106 Liters (Regular wash cycle Water level: High) Pulsator speed 170 r.p.m(DELICATE course 60 r.p.m)
-
Page 2: Abnormal Condition
LFP580GR ABNORMAL CONDITION When the washer is abnormal, the washer stops as the every actions turns off, beep tone sounds ON-0.3 second and OFF-0.3 second for 10 seconds and course lamps blink on and off. The washer judges the following five conditions as abnormal condition. -
Page 3: Circuit Diagram
LFP580GR CIRCUIT DIAGRAM COLOR SYMBOL GRAY BLUE GREEN BLACK LIGHT BLUE BROWN ORANGE PINK WHITE YELLOW VIOLET TROUBLE SHOOTING TROUBLE INSPECTION INSPECTION INSPECTION INSPECTION CAUSES REMEDY a. Power Source Any indications Is fuse blown? Is fuse blown? Deterioration of fuse. -
Page 4: Water Supply
LFP580GR TROUBLE INSPECTION INSPECTION CAUSES REMEDY b. Water Supply Water does not Does humming Something on the filter of flow when the noise come on the water valve or Clean the filter. power switch is from water “magic” hose joint.. - Page 5 LFP580GR TROUBLE INSPECTION INSPECTION CAUSES REMEDY c. Wash/Rinse ’ Bearing ass y is defective. Replace. Washing cycle does Does the spin tub Poor connect of 6-pin not start even if rotated normally Replace. connectors (blue & white) water keeps the...
-
Page 6: Spin Drying
LFP580GR TROUBLE INSPECTION INSPECTION INSPECTION CAUSES REMEDY Drain takes time too Replace. Valve bellows is deformed. long. ’ Drain hose ass y is Repair or replace. deformed. Note: In draining, the water lever sensor can Note: In draining, the water level sensor can Hose is connected in the Repair. - Page 7 LFP580GR TROUBLE INSPECTION INSPECTION INSPECTION CAUSES REMEDY Operation of safety device Start of spin-drying. Safety device work. Normal spin. Electric circuit works to stop Electric circuit spin when safety device count operation of detects continuously three safety device. times of abnormal swing of spin drum.
-
Page 8: Part List
LFP580GR TROUBLE INSPECTION INSPECTION CAUSES REMEDY Buzzing/rattling Does some noise Belt is slipping. Adjust. during washing sound during Pulley is loose. Tighten. or rinsing. spin drying? Some part touch motor Repair or replace Something underneath Remove. pulsator. ’ Pulsator is rubbing. - Page 9 70C00882 Control Circuit Board Complete ST1TN40160SE ST1TN40120SE 3012160148041 Top Plate ST1TN40120SE 3014291S03140 Water Level Sensor 3012334002140 Hose Band 3012324212140 Air Trap Hose 3012176224140 Barricade ST1TN40120SE 3016320S05140 Protective Paper Pad 301285150D140 Wire Bunch 301B111200041 Frame Complete 3012122201140 Back Cover 301B121100316 Spec Label 3012912223140 Special Screw 3012122101142...
- Page 10 63-2 ST1TN50210UK 63-3 3010241118043 Spin Tub Assembly 63-4 3012243308043 Spin Tub Bottom 63-5 3010912305140 Flange SCR Assembly 63-6 ST1TN40100UK 63-7 3012324518141 Circulate Hose 3012912202140 Motor Screw Assembly 3010212306143 Lint filter Assembly 3010234425140 Suspension 3010234426140 Suspension 3012221104040 Outer Tub Drum 3012334002140 Hose Band 3012212202140 Drain Pipe...
-
Page 11: Exploded View
Exploded View(76)
