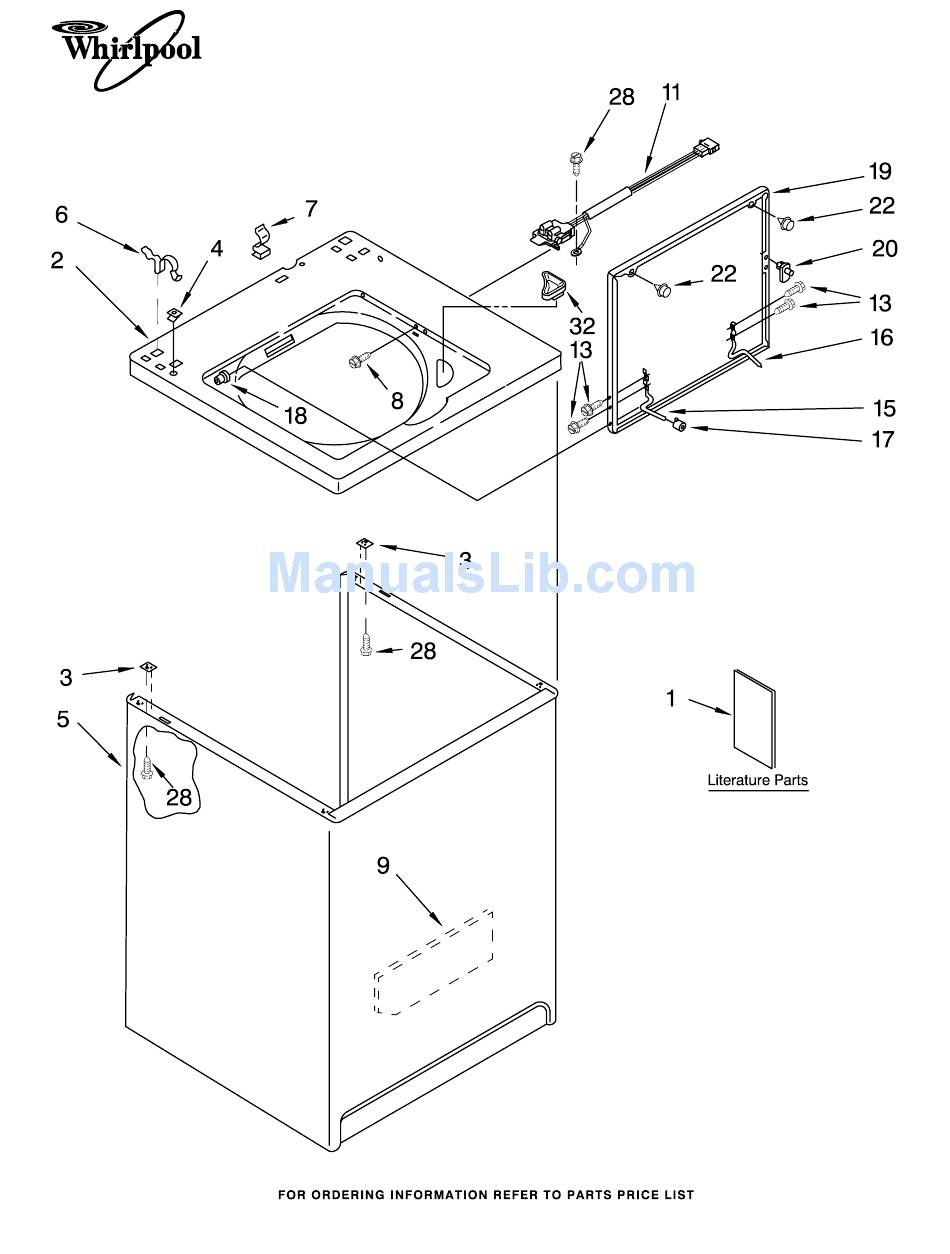

Page 1: Top And Cabinet Parts
TOP AND CABINET PARTS AUTOMATIC WASHER For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Part No. 8179560 12−00 Litho In U.S.A. (awm) - Page 2 TOP AND CABINET PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION Literature Parts Installation Instructions LIT3952817 English LIT3951578 French Use & Care Guide LIT3955155 English LIT3954821 French LIT3954539 Energy Guide LIT3954585 Wiring Diagram Following May Be Purchased DO−IT−YOURSELF...
-
Page 3: Controls And Rear Panel Parts
CONTROLS AND REAR PANEL PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) 8179560... - Page 4 CONTROLS AND REAR PANEL PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3948608 Bracket, Control 661614 Switch, Rotary 3976300 Washer, Water 3948063 Cord, Power Panel, Console Inlet Hose (4) 3952821 Strain Relief, 3954177 White (1−1/16 x 5/8)
-
Page 5: Agitator, Basket And Tub Parts
AGITATOR, BASKET AND TUB PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) 8179560... - Page 6 AGITATOR, BASKET AND TUB PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION 63580 Dispenser 358237 Screw & Washer (5/16−24 x 1) 3363003 Clothes Mover 3951632 Agitator 63851 Tub Ring & Gasket 3359585 Gasket, Tub Ring 3354845 Clip, Agitator 3355921 Washer−Agitator...
-
Page 7: Brake, Clutch, Gearcase, Motor And Pump Parts
BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part Illus. Part DESCRIPTION DESCRIPTION 388952 Brake & Drive 62611 Plate, Motor Mount To Tube (Complete) Gearcase (Refer to Page 11 62691 Grommet, Motor (4) -
Page 8: Machine Base Parts
MACHINE BASE PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION 3400076 Screw, Bracket Mounting (10−32 x 5/8) 64067 Bracket, Spring Outer (2) 63907 Spring Suspension,(3) 3362087 Support & Brake, 64065 Bracket, Spring Outer (L.F.) 63466 Link, Leveling... -
Page 9: Wiring Harness Parts
WIRING HARNESS PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) WH2G 8179560... - Page 10 WIRING HARNESS PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3348075 Block, Disconnect 3349557 Clip, Harness 3349494 Connector, Etc (Motor 3 Speed) 388498 Clip, Harness 60687 Connector, Relay (Use Term. 94613 3347812 Clip, Harness (Use Term.308569)
-
Page 11: Brake And Drive Tube Parts
BRAKE AND DRIVE TUBE PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION 388952 Brake And Drive Tube (Complete) 62658 Ring, Thrust 91939 Seal, Oil 356427 Seal, Drive Tube 356937 Spacer, Drive Tube 64027 Tube, Basket Drive (Includes Illus. -
Page 12: Gearcase Parts
GEARCASE PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION 1 3360630 Gearcase (Complete) 285202 Cover, Gearcase 3 3349985 Seal, Gearcase Cover 285195 Sealer, Gasket (.20 Fl. Oz.) (6 ml) 63320 Pinion, Spin (Includes Illus. 25) 356427 Seal, Spin... -
Page 13: Water System Parts
WATER SYSTEM PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION 285442 Connector Kit, Plastic Drain Hose 285321 Sleeve Kit, (Contains 2 Sleeves) 370447 Clamp, Hose 16272 Connector, Straight 285320 Siphon Break (Not Included) 65349 Clamp, Hose 367031... -
Page 14: Miscellaneous Parts
MISCELLANEOUS PARTS For Models: LSQ8500JQ1, LSQ8500JT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION 3976252 Miscellaneous Parts Bag 3976300 Washer, Inlet Hose (1−1/16 x 5/8) (4) 3366912 Clamp, Hose 3359452 Nut, Lock (3/8−16) 389102 Foot, Front (2) OPTIONAL PARTS (NOT INCLUDED) Illus.
