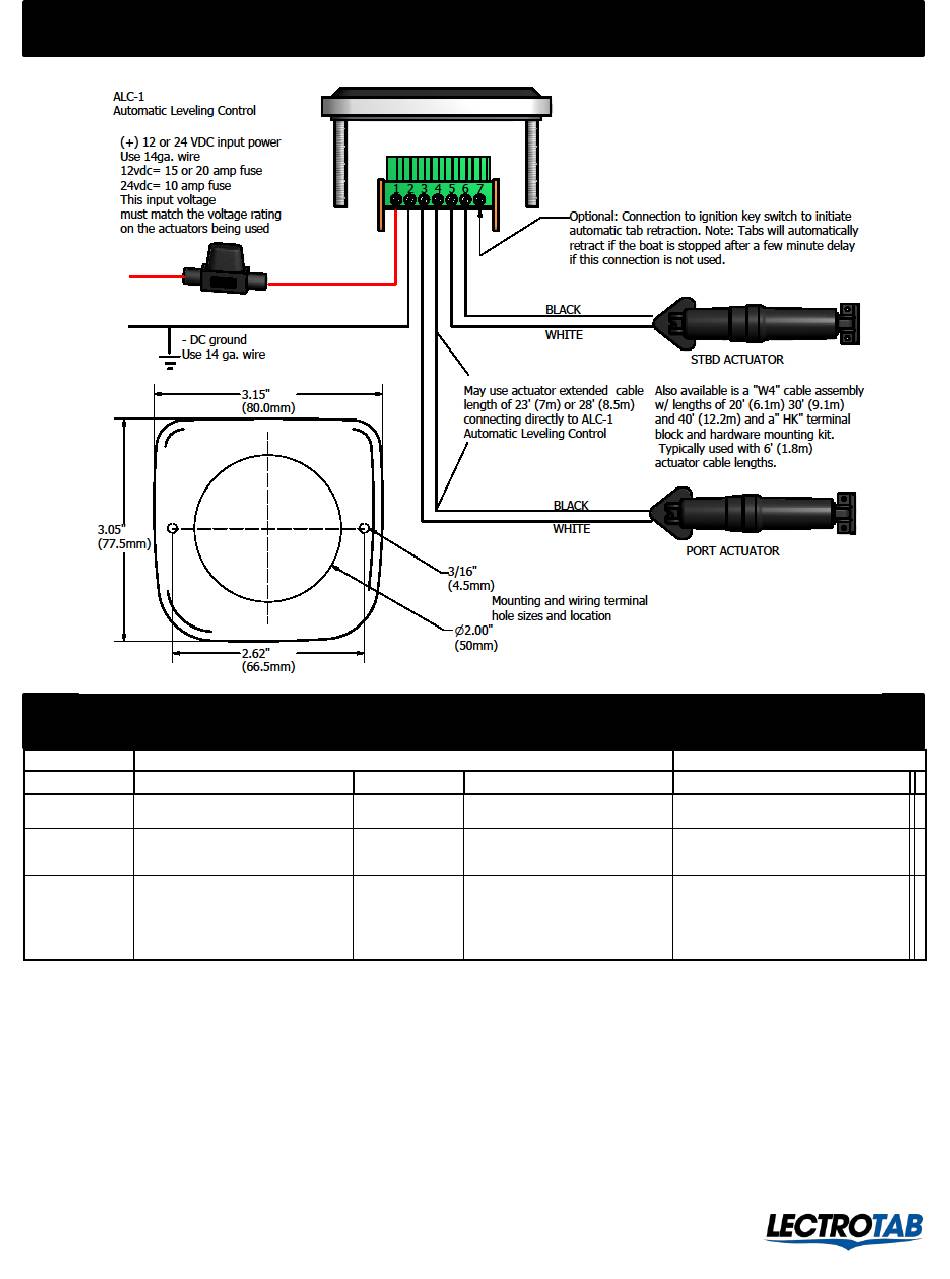

AUTO LEVELING CONTROL WIRING ALC-1
AUTO LEVELING CONTROL (ALC) PROGRAMMING
Function
Calibration
BOW UP + BOW DOWN
Attitude Set
Gain Adjust
RIGHT + LEFT
Additional Operational Features:
•
Press AUTO to enter automatic leveling
•
Press AUTO mode again to enter manual mode so tabs may be adjusted manually
•
The ALC incorporates an "Adaptive system" to maintain optimum running attitude in varying sea conditions
•
Reducing speeds below planing speed the ALC will not attempt to control attitude
•
The ALC automatically starts correcting attitude during acceleration
Linear Devices Corporation
11126 Air Park Road, Suite G, Ashland, VA 23005
www.lectrotab.com, Ph 804-368-8428, Fax 804-368-8438
March 2014
Program Mode Sequence
Enter
Button Hold
12s
N/A
N/A
4s
Adjustment
Begin Calibration
Adjust tabs to best attitude
BOW UP and BOW DOWN
Store Memory
N/A
Press AUTO 4s
RIGHT + LEFT 4s
