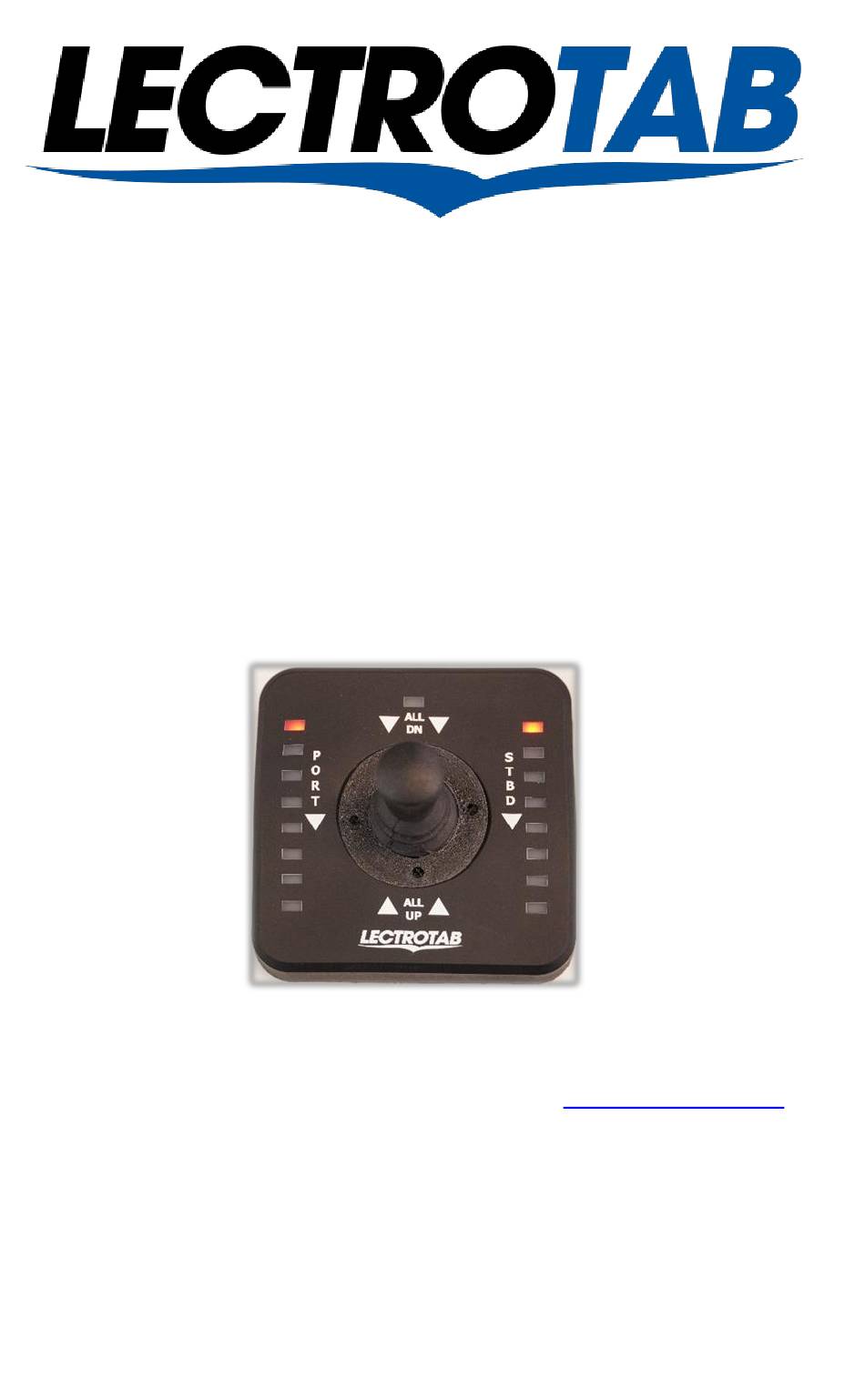

- Page 1 ELECTROMECHANICAL TRIM TAB SYSTEMS Joystick Control JLC Series Installation/Operation Linear Devices Corporation www.lectrotab.com Phone: 804-368-8428 dba Lectrotab Email: sales@lectrotab.com 11126 Air Park Road, Suite G August 2023 Ashland, VA 23005...
- Page 2 Table of Contents Introduction/Safety How Do Trim Tabs Work Display Keypad Installation and Wiring JLC Wiring Diagrams Verify Display Settings and Operation Programming JLC Keypad 11-12 Troubleshooting/Specifications...
- Page 3 The Joystick leveling control system incorporates all the features and benefits of the SLC One Touch control. The Joystick control is designed to directly replace any Lectrotab control with only minor modifications. The Joystick control is potted and sealed to be waterproof.
-
Page 4: How Do Trim Tabs Work
How Do Trim Tabs Work Boaters will enjoy many performance and efficiency benefits by adding Lectrotab trim tabs. Lectrotab trim tabs improve fuel efficiency, increase boat speed, accelerate shallow water planing, eliminate porpoising, and enhance the overall boating experience with a more comfortable ride. - Page 5 Display Keypad Installation & Wiring JLC-11 (For dual actuator tabs, connect actuators from same tab in parallel) Mounting Display Keypad: Locate the display keypad at the helm where it is convenient to access and view the LED indicators and a flat level surface. Drill one 2.625”...
- Page 10 Verify Display Settings and Operation JLC-11 Photo sensor to All Down and All Up automatically brighten function adjust both tabs and dim LEDs by pressing joystick forward to deploy and back to retract. LEDs indicate tab position Adjust Port side up by Adjust Starboard side by pressing joystick left pressing joystick right for...
- Page 11 LED Position Indicators: When retracting actuators/tabs, the top LED indicators will flash and then remain lit to show tabs are fully retracted. The LED indicators show approximate tab position based on time. A standard “A” series actuator takes approximately 8 seconds to fully deploy or retract. Automatic Tab Retraction: There are a couple of options for automatically retracting the trim tabs.
- Page 12 Programming Chart Program Mode Sequence Change Setting Enter Exit and Save Range Default Program Details Setting Push & hold Push and hold Push and hold Auto Retract Standard or 8 LEDs = Standard Auto Retract joystick joystick joystick to Previous Remember Standard 1 LED = Return to last tab...
-
Page 13: Specifications
JLC-11 Troubleshooting LEDs do not light: Test for +12vdc (or 24vdc) on back of JLC keypad at red “+” sticker terminal and middle terminal (battery negative). Turn on ignition key switch or accessory switch (see Auto Tab Retraction p.11) which should show 12 or 24vdc on “AUX”...
