Lectrotab SETR-50 Quick Start Manual

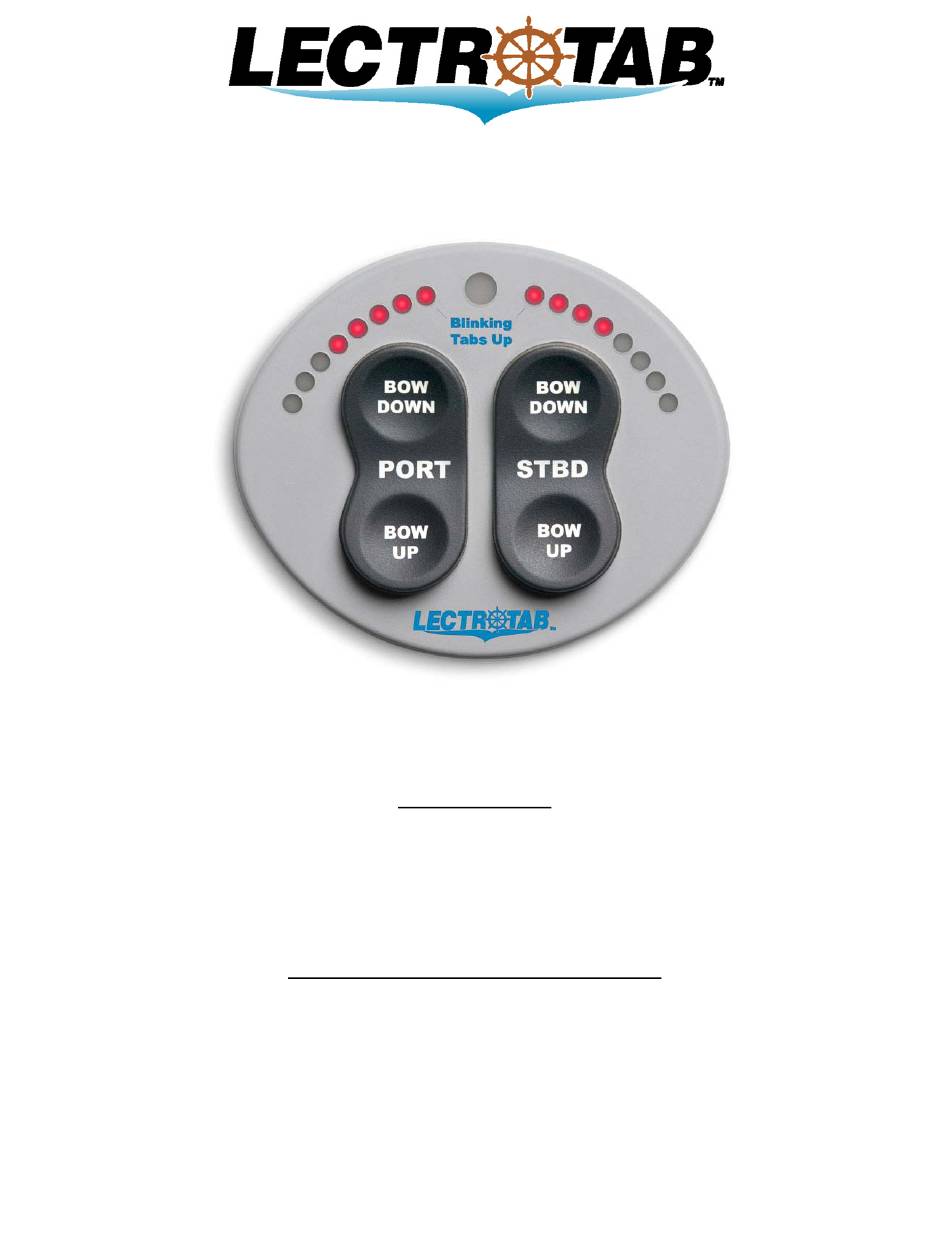

Pictured above is the SETR-50 with black switches on a gray background. The SETR-51 is identical except for the color, wherein it
has black switches on a black background. The actual size is about 4" wide, 3 ½" high and ½" deep.
Thanks for your interest in the Lectrotab model SETR-50/51, Sealed Electronic Trim and Retract system, with tab position indication.
The SETR-50/51 "Oval" is either a stand alone or multi-station, software driven, microprocessor based control, featuring positive
click switches with integrated LED position indicators, in a single waterproof unit. The SETR-50/51 "Oval" is unique in that no
position feedback device is needed in the actuator. Also unique is the single component design of this control; no other interface box
or components are required for operation, and all connections are made directly to the back of the control.
•
Multi station capable, supporting up to 6 Ovals in the same trim tab system wherein each Oval is a full function control
with no switchover requirements.
•
High current outputs; 20 amps for both Port & Starboard actuators.
•
Mirror operation at all Ovals; simultaneous use at different stations is OK.
•
Independent control of Starboard and Port actuators.
•
Eight LED's, operating sequentially, indicate the position of each tab.
•
Automatic dimming for night operation, with each Oval dimming independently.
•
Salt water hose down proof and UV protected.
•
Ergonomically designed keypad for "Heads Up" operation with tactile feed back switches.
•
Any Oval can operate as the master control or as a remote; therefore, only one model is required. Expanding a single
station system to multi-station is a simple add-on with no changes to the original control.
Model SETR-50 and SETR-51
Trim Tab Control

Introduction

SETR-50/51, "Oval" Features
1 Lit # 4H06
Revised 8/18/2006
