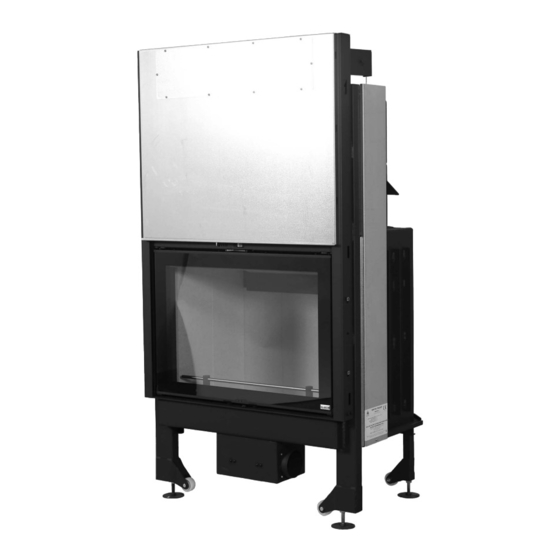

Summary of Contents for ARTE MENTOR ST 80
-
Page 2: Table Of Contents
5.10. Installation examples with hot air supply to more than one room ..........................12 6. Usage instructions ......................................... 13 6.1. Before the first use of the ARTE® MENTOR fireplace ................................ 13 6.2. About the ARTE® MENTOR fireplace ....................................13 6.3. General information ..........................................14 - When the fireplace paint dries ....................................... -
Page 3: Arte® Fireplace - A Greek Quality Product
UALITY RODUCT Thank you for buying an ARTE® fireplace - we believe that you will have as much pleasure from our product as we have, producing it. Your ARTE® fireplace is made in such a way, to extract the maximum possible energy from the wood with the minimum possible emissions, using the most innovative technology and the most robust design –... -
Page 4: Wood Types And Calorific Value
4.800 4.731 4.619 4.578 4.588 4.548 4.457 4.100 (Kcal/Kg) 860Kcal/h = 1 kW/h Table 2.4.1 The values are based on 15% residual wood moisture. An ARTE fireplace can be fired with all of the above wood types . ® Page... -
Page 5: Determining The Heat Output
NDORSEMENTS AND CERTIFICATIONS 3.1. Endorsement The ARTE® fireplace you chose has been tested according to EN13229. The declaration of performance (DoP) of each MENTOR model can be found at the URL of the company for each model. 3.2. Features marking plate ARTE®... -
Page 6: Packaging
NSTALLATION AND USAGE MANUAL 4. P ACKAGING ARTE® is devoted in protecting the environment, so we use as much recyclable materials as possible and the least amount of packaging materials without compromising the secure transfer of our products. 4.1. Unpacking the fireplace Your product will be delivered on a wooden palette which is lined with wooden side panels (Pic. -
Page 7: Installation And Fire Safety
& FIREPLACE | MENTOR NSTALLATION USAGE MANUAL 5. I NSTALLATION AND FIRE SAFETY During the installation of the fireplace, It is OBLIGATORY to respect the National and European rules and local regulations concerning building matter and fireproof rules. The installation MUST be inspected by a qualified auditor, prior to lighting the fireplace. Also, the appropriate local authorities must be informed. -
Page 8: Flue Safety Instructions
Follow the operating instructions supplied with the product to help prevent fire and protect the environment. 5.5. Flue safety instructions Prior to installing the fireplace ARTE® the chimney sweep or a qualified technician should check the condition and operation of your chimney in accordance with the standards EN13384-1 &... -
Page 9: Chimney Cap
& FIREPLACE | MENTOR NSTALLATION USAGE MANUAL Pic. 5.5.2 Pic. 5.5.3 The ending of the chimney must be at least 50cm above the top of the roof. If there is more than one chimney on the roof, they must be positioned at least 2m apart. ... -
Page 10: Connecting The Fireplace With The Flue
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL 5.6. Connecting the fireplace with the flue It is necessary that the flue gas tube is connected to a certified conduit with the same diameter as the fireplace, by following the dimensions of the adjacent image (Pic. 5.6.1). For the fireplace MENTOR the diameter of the flue is 200mm for fireplaces with width 80cm and 90cm, and 250mm for fireplaces with width 100cm and 120cm. -
Page 11: Hot Air Abduction
& FIREPLACE | MENTOR NSTALLATION USAGE MANUAL 5.8. Hot air abduction The space extending around and over the device up to the deflector must be ventilated continuously. For this reason you must allow cool air from a lower spot, for example, the bottom and the outlet of the hot air from above (Pic. 5.8.1). -
Page 12: Connection Of Motor And Thermostat
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL - Connection of motor and thermostat There are 2 pre-shaped air intakes for the motor, at the bottom left and right of the fireplace. Open the pre-shaped openings with a hummer, place the Ø150mm tubes at the edges of the motor (right, left) and tighten them with clamps (Pic. - Page 13 & FIREPLACE | MENTOR NSTALLATION USAGE MANUAL Pic. 5.9.7: Connect and install the electronic control panel with the motor, according to the graph. The electric installation must be done EXCLUSIVELY only by specialized staff. Place the panel of the thermostat at a cold place in order overheating of electric parts to be avoided.
-
Page 14: Installation Examples With Hot Air Supply To More Than One Room
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL 5.10. Installation examples with hot air supply to more than one room Α) The following graph (Pic. 5.10.1) describes the main tube (distributor) of hot air which heats up more than one room. The max length of the distributor is 12m when the two front tubes of the fireplace connected... -
Page 15: Usage Instructions
SAGE INSTRUCTIONS 6.1. Before the first use of the ARTE® MENTOR fireplace One of our specialized representatives has already given you instructions about how to start the ARTE® MENTOR fireplace that you just bought. At the following usage instructions, all the necessary steps that you must follow are analyzed in detail, in order not to face any problem during the function of your fireplace. -
Page 16: General Information
- Power failure (when there is a motor) In case of power failure, you can still start or operate you ARTE® MENTOR fireplace normally. The only difference is that because the motor will not function, it will not give directly the heat inside the room but with heat convention. -
Page 17: Usage Of The Detachable Handle ("Cold Handle")
Pic. 6.4.2 If you prefer the usage of a handle of your own choice or the ARTE’s one, you can order special tools from ARTE in order to adjust them. The handle that you will choose from the market must be able to withstand high temperatures and agrees with the dimensions of Pic. -
Page 18: Adjustment Of Combustion Air
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL 6.5. Adjustment of combustion air Pic. 6.5.1 The regulator adjusts the outer air that comes into the combustion chamber as follows: (Pic. 6.5.1). At the position 0, the primary and the secondary air are closed. ... -
Page 19: Lighting The Fireplace
& FIREPLACE | MENTOR NSTALLATION USAGE MANUAL Main MENU Selection of the function Push the D button in order to see the selected function, which is written on the screen and the corresponding lightbulb lights up. By pressing again the D button, you can select one of the three function that are shown on the screen and mentioned by the corresponding lightbulb. -
Page 20: Lighting Without Co Emissions (From Top To Bottom)
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL 7.2. Lighting without CO emissions (FROM TOP TO BOTTOM) Turn the regulator (Fig 6.5.1) at the maximum open setting (position 2). Place logs, whose weight depends on the size of the fireplace, alternately (once lengthwise –... -
Page 21: Tertiary Combustion
Over a period of time, the painted surface may become slightly grey. A canister of touch-up ARTE ® spray paint should be available from your fireplace supplier. This can be applied - in accordance with the instructions - in just a few minutes. -
Page 22: Internal Maintenance
- Glass ARTE® MENTOR fireplace has a single ceramic glass in the window of the combustion chamber in order to receive as much heat as possible by radiation. If the fireplace is generally operated at the correct temperature, there should be little or no soot on the glass. -
Page 23: Gasket
Do not operate the fireplace if the glass in the door is damaged. If there is a need to replace the glass, it should be replaced with the high temperature ceramic glass supplied by ARTE ® . For more information, please contact your local ARTE ® dealer. -
Page 24: Cleaning The Fireplace And The Flue
If you cannot inspect or clean the chimney by yourself, contact your local ARTE ® dealer or a professional chimney sweep. -
Page 25: Internal Parts
& FIREPLACE | MENTOR NSTALLATION USAGE MANUAL 9.4. Internal parts - Removal of the 1 baffle Pic.9.4.1: Lift up the front side and pull outwards. Pic.9.4.2: Remove the baffle by pulling it downwards. - Removal of the 2 baffle Pic.9.4.3: Select one of the pieces that form the 2 Pic.9.4.4: Remove the baffle by pulling downwards. -
Page 26: Removal Of Side Vermiculites
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL - Removal of side vermiculites - Removal of back vermiculites Pic.9.4.7: Remove the 1 baffle (Pic. 9.4.1). Lift up the Pic.9.4.8: After the removal of the side vermiculites, lift vermiculite Ν 1 and then pull it inwards. Slide the up the back vermiculite and then pull it inwards. -
Page 27: Tips And Tricks For Resolving Issues
Check if there is adequate draft into the flue, light a test fire Make sure there is sufficient air supply We hope you enjoy many years of carefree warmt h with ARTE ® MENTOR fireplace. Some initial experimentation with loading and operating techniques will help you decide your normal routine. -
Page 28: Dimensions And Technical Specifications
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL 11. D IMENSIONS AND TECHNICAL SPECIFICATIONS MODEL DIMENSION ST80 ST90 ST100 ST120 MENTOR MENTOR MENTOR MENTOR A (cm) B (cm) 22,4 25,2 C (cm) Φ20 Φ25 D (cm) E (cm) Table 11.1 26 | Page... - Page 29 & FIREPLACE | MENTOR NSTALLATION USAGE MANUAL MENTOR ST 80 MENTOR ST 90 MENTOR ST 100 MENTOR ST 120 TECHNICAL SPECIFICATIONS UNITS Kcal/h 12900 14600 14200 15500 15500 17200 16800 18500 Total heat output 16.5 19.5 21.5 Recommended hourly consumption of...
-
Page 30: Notes
FIREPLACE | MENTOR NSTALLATION AND USAGE MANUAL 12. N OTES 28 | Page... - Page 31 1.3 Responsibility καταναλωτή και το αντίστροφο, ομοίως δεν περιλαμβάνεται στην εγγύηση και δεν βαρύνει την εταιρία. It is hereby expressly stated that ARTE does not bear any accountability Στα πλαίσια της εγγυήσεως αφαιρείται από τις υποχρεώσεις τις εταιρίας civil, criminal or other, for accidents that may be caused by total or οτιδήποτε...
- Page 32 1.6 Χρήση warranty. ARTE guarantees that, even if this is not covered by the warranty, it will Η χρήση της συσκευής πρέπει να γίνεται σύμφωνα με όλα τα πρότυπα still provide quali ed technicians to provide technical services as well as ασφαλείας...
- Page 34 Ext. Gen. Makrigianni Str. Εύοσμος, Θεσσαλονίκη Evosmos, Thessaloniki, Greece Αλληλογραφία Mail Τ.Κ. 56410 | Τ.Θ. 40124 P.C. 56410 | P.O. Box 40124 Σταυρούπολη, Θεσσαλονίκη Stavroupoli, Thessaloniki, Greece +30 2310 684 148 +30 2310 684 149 info@arte- replace.com www.arte- replace.com ENERGY SAVING SOLUTIONS...
