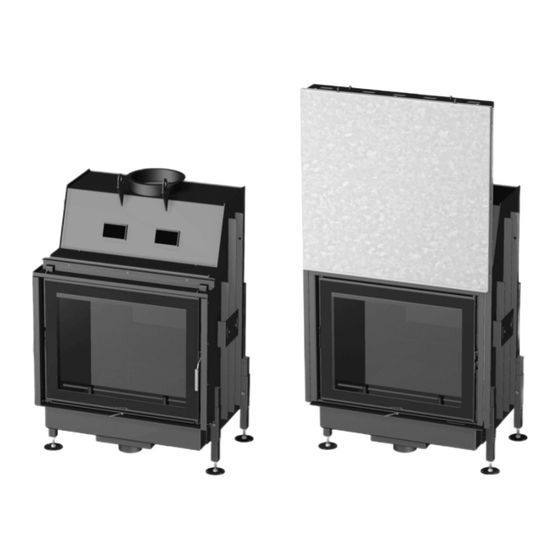

Summary of Contents for ARTE TREND Series
-
Page 2: Table Of Contents
5.12. Installation examples with hot air supply to more than one room ..........................15 6. Usage instructions ......................................... 16 6.1. Before the first use of the ARTE® TREND fireplace ................................16 6.2. About the ARTE® TREND fireplace ...................................... 16 6.3. General information ..........................................17 - When the fireplace paint dries ....................................... -
Page 4: Arte® Fireplace - A Greek Quality Product
UALITY RODUCT Thank you for buying an ARTE® fireplace - we believe that you will have as much pleasure from our product as we have, producing it. Your ARTE® fireplace is made in such a way, to extract the maximum possible energy from the wood with the minimum possible emissions, using the most innovative technology and the most robust design –... -
Page 5: Wood Types And Calorific Value
5.000 4.800 4.731 4.619 4.578 4.588 4.548 4.457 4.100 (Kcal/Kg) Table 2.4.1 860Kcal/h = 1 kW/h The values are based on 15% residual wood moisture. An ARTE fireplace can be fired with all of the above wood types. ® Page... -
Page 6: Determining The Heat Output
The ARTE® fireplace you chose has been tested according to EN13229. The declaration of performance (DoP) of each TREND model can be found at the URL of the company for each model. 3.2. Features marking plate ARTE® fireplace’s feature marking plate is located on the right side of the appliance Page... -
Page 7: Packaging
ANUAL 4. P ACKAGING ARTE® is devoted in protecting the environment, so we use as much recyclable materials as possible and the least amount of packaging materials without compromising the secure transfer of our products. 4.1. Unpacking the fireplace Your product will be delivered on a wooden palette which is lined with wooden side panels (Pic. 4.1.1). -
Page 8: Installation And Fire Safety
5.1. Changing the opening side of the door Your ARTE® TREND fireplace is delivered with a door which opens towards left, but it is possible to change it in order to open towards right. To change the opening side of the door, you must follow the next steps: 1) Unscrew slightly the screws that hold the lower hinge at the left side’s door. -
Page 9: Adjustment And Leveling Of The Fireplace
FΙREPLACE | TREND NSTALLATION ANUAL 4) Remove the pin of the upper hinge, the screw for the stop function and the bronze spacers from the door’s corners and reassemble them at the opposite side of the door. (Pic. 5.1.4). 5) Remove the pin that secures the door, from the frame and screw it at the opposite side of the door (Pic. 5.1.5). 6) Place the bottom hinge at the right side of the door, place the door, line up the door and tighten the screws of the lower hinge by following the opposite procedure till the step 2. -
Page 10: Door's Counterweights Adjustment For Sliding Door (Type H)
FΙREPLACE | TREND NSTALLATION ANUAL 5.3. Door’s counterweights adjustment for sliding door (Type h) Pic. 5.3.1 Pic. 5.3.2 For the adjustment of the door’s counterweights, remove the front galvanized cover. To remove it, unscrew the screws and pull the cover upwards. (Pic. 5.3.1). By adding or removing plates you can affect the function of the door (Pic. -
Page 11: Flue Safety Instructions
NSTALLATION ANUAL 5.7. Flue safety instructions Prior to installing the fireplace ARTE® the chimney sweep or a qualified technician should check the condition and operation of your chimney in accordance with the standards EN13384-1 & EN13384-2. By this way, you ensure the best conditions for heating without issues. -
Page 12: Chimney Cap
FΙREPLACE | TREND NSTALLATION ANUAL If there is a tall building or tree next to the house, then you should place the chimney at a distance greater than 5m from the obstacle. It is prohibited to connect several devices to the same chimney. Each chimney should be autonomous (Pic. 5.7.3) In case of an inclined roof, the height of the chimney is defined depending on the inclination and the distance of the chimney from the ridge according to the following table and figure (Table 5.7.1 &... -
Page 13: Connecting The Fireplace With The Flue
FΙREPLACE | TREND NSTALLATION ANUAL 5.8. Connecting the fireplace with the flue It is necessary that the flue gas tube is connected to a certified conduit with the same diameter as the fireplace, by following the dimensions of the adjacent image (Pic. 5.8.1). For the fireplace TREND the diameter of the flue is 200mm. - Page 14 FΙREPLACE | TREND NSTALLATION ANUAL The import of the air which comes from garages, kitchen, bathroom or boiler room, must be avoided. The minimum height that the fireplace can be set depends on the minimum required space that is needed for the connection of the intake’s combustion air tube (Pic.
-
Page 15: Hot Air Abduction
FΙREPLACE | TREND NSTALLATION ANUAL In each case, you must break the sheet metal at the point where the intake’s nozzle is adjusted. 5.10. Hot air abduction The space extending around and over the device up to the deflector must be ventilated continuously. -
Page 16: Connection Of Motor And Thermostat
FΙREPLACE | TREND NSTALLATION ANUAL - Connection of motor and thermostat Open the pre-shaped openings with a hummer, place the Ø150mm tubes at the edges of the motor (right, left) and tighten them with clamps (Pic. 5.11.3). Do not let the motor without the tubes, because there is danger that the smoke from the combustion chamber will enter into the heating air. - Page 17 FΙREPLACE | TREND NSTALLATION ANUAL Pic. 5.11.7: Connect and install the electronic control panel with the motor, according to the graph. The electric installation must be done EXCLUSIVELY only by specialized staff. Place the panel of the thermostat at a cold place in order overheating of electric parts to be avoided.
-
Page 18: Installation Examples With Hot Air Supply To More Than One Room
FΙREPLACE | TREND NSTALLATION ANUAL 5.12. Installation examples with hot air supply to more than one room Α) The following graph (Pic. 5.12.1) describes the main tube (distributor) of hot air which heats up more than one room. The max length of the distributor is 12m when the two front tubes of the fireplace connected... -
Page 19: Usage Instructions
SAGE INSTRUCTIONS 6.1. Before the first use of the ARTE® TREND fireplace One of our specialized representatives has already given you instructions about how to start the ARTE® TREND fireplace that you just bought. At the following usage instructions, all the necessary steps that you must follow are analyzed in detail, in order not to face any problem during the function of your fireplace. -
Page 20: General Information
- Power failure (when there is a motor) In case of power failure, you can still start or operate you ARTE® TREND fireplace normally. The only difference is that because the motor will not function, it will not give directly the heat inside the room but with heat convention. That is why we suggest you to use an UPS device with minimum power 1000VA (pure sine wave UPS), which will ensure you, nonstop function of your fireplace for approximately an hour. -
Page 21: Adjustment Of Combustion Air
FΙREPLACE | TREND NSTALLATION ANUAL 6.5. Adjustment of combustion air Pic. 6.5.1 The regulator adjusts the outer air that comes into the combustion chamber as follows: (Pic. 6.5.1). At the position 0, the primary and the secondary air are closed. At the position 1, the primary air is closed and the secondary is at 50%. -
Page 22: Lighting The Fireplace
FΙREPLACE | TREND NSTALLATION ANUAL Main MENU Selection of the function Push the D button in order to see the selected function, which is written on the screen and the corresponding lightbulb lights up. By pressing again the D button, you can select one of the three function that are shown on the screen and mentioned by the corresponding lightbulb. -
Page 23: Lighting Without Co Emissions (From Top To Bottom)
FΙREPLACE | TREND NSTALLATION ANUAL 7.2. Lighting without CO emissions (FROM TOP TO BOTTOM) Turn the regulator (Pic 6.5.1) at the maximum open setting (position 2). Place logs, whose weight depends on the size of the fireplace, alternately (once lengthwise – once widthwise). Add some torch (1-2 kg) in a length/widthwixe together with 2-3 kindling tablets or 3-4 wrapped newspaper sheets and light them. -
Page 24: Tertiary Combustion
Over a period of time, the painted surface may become slightly grey. A canister of touch-up ARTE ® spray paint should be available from your fireplace supplier. This can be applied - in accordance with the instructions - in just a few minutes. -
Page 25: Internal Maintenance
- Glass ARTE® TREND fireplace has a single ceramic glass in the window of the combustion chamber in order to receive as much heat as possible by radiation. If the fireplace is generally operated at the correct temperature, there should be little or no soot on the glass. -
Page 26: Gasket
Pic. 9.2.4 Opening the door of the simple fireplaces (type h) If there is a need to replace the glass, it should be replaced with the high temperature ceramic glass supplied by ARTE ®. For more information, please contact your local ARTE ® dealer. -
Page 27: Cleaning The Fireplace And The Flue
If you cannot inspect or clean the chimney by yourself, contact your local ARTE ® dealer or a professional chimney sweep. -
Page 28: Removal Of The 1 St Baffle
FΙREPLACE | TREND NSTALLATION ANUAL - Removal of the 1 baffle - Removal of side vermiculites - Removal of back vermiculites Pic.9.4.1: Lift up the front side and pull outwards. Pic.9.4.2: Remove the baffle by pulling it downwards - Removal of the 2 baffle Pic.9.4.3: Push the baffle upwards and rotate it in order Pic.9.4.4: Remove the baffle by pulling it downwards. -
Page 29: Removal Of The Bottom Vermiculites (Floor)
FΙREPLACE | TREND NSTALLATION ANUAL Pic.9.4.5: Remove the 1 baffle (Pic. 9.4.1). Lift up the Pic.9.4.6: After the removal of the side vermiculites, lift up vermiculite Ν 1 and then pull it inwards. Slide the the back vermiculite and then pull it inwards. vermiculite Ν... -
Page 30: Tips And Tricks For Resolving Issues
Check if there is adequate draft into the flue, light a test fire Make sure there is sufficient air supply We hope you enjoy many years of carefree warmth with ARTE ® TREND fireplace. Some initial experimentation with loading and operating techniques will help you decide your normal routine. -
Page 31: Dimensions And Technical Specifications
FΙREPLACE | TREND NSTALLATION ANUAL 11. D IMENSIONS AND TECHNICAL SPECIFICATIONS 28 | Page... - Page 32 FΙREPLACE | TREND NSTALLATION ANUAL TREND ST 80 TREND ST 90 TECHNICAL SPECIFICATIONS UNITS Kcal/h 11600 13300 12900 14200 Total heat output 13.5 15.5 16.5 Recommended hourly consumption of Kg/h firewood Heat output Exhausts temperature °C CO emissions 0.09 0.09 (by providing O 2 at 13%) Yield range 8.9 –...
-
Page 33: Notes
FΙREPLACE | TREND NSTALLATION ANUAL 12. N OTES 30 | Page... - Page 34 1.3 Responsibility καταναλωτή και το αντίστροφο, ομοίως δεν περιλαμβάνεται στην εγγύηση και δεν βαρύνει την εταιρία. It is hereby expressly stated that ARTE does not bear any accountability Στα πλαίσια της εγγυήσεως αφαιρείται από τις υποχρεώσεις τις εταιρίας civil, criminal or other, for accidents that may be caused by total or οτιδήποτε...
- Page 35 1.6 Χρήση warranty. ARTE guarantees that, even if this is not covered by the warranty, it will Η χρήση της συσκευής πρέπει να γίνεται σύμφωνα με όλα τα πρότυπα still provide quali ed technicians to provide technical services as well as ασφαλείας...
- Page 36 Ext. Gen. Makrigianni Str. Εύοσμος, Θεσσαλονίκη Evosmos, Thessaloniki, Greece Αλληλογραφία Mail Τ.Κ. 56410 | Τ.Θ. 40124 P.C. 56410 | P.O. Box 40124 Σταυρούπολη, Θεσσαλονίκη Stavroupoli, Thessaloniki, Greece +30 2310 684 148 +30 2310 684 149 info@arte- replace.com www.arte- replace.com ENERGY SAVING SOLUTIONS...
