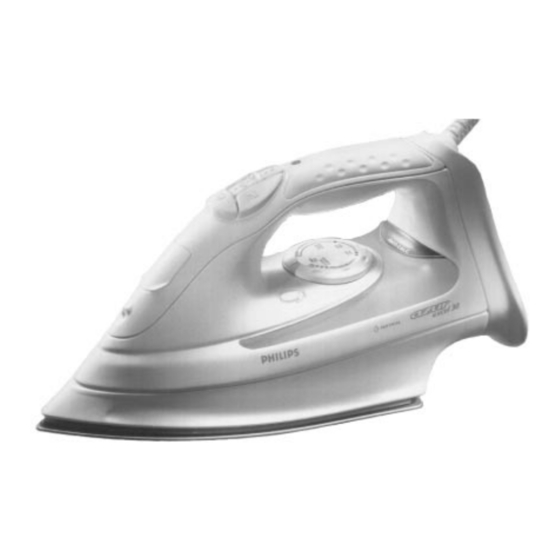

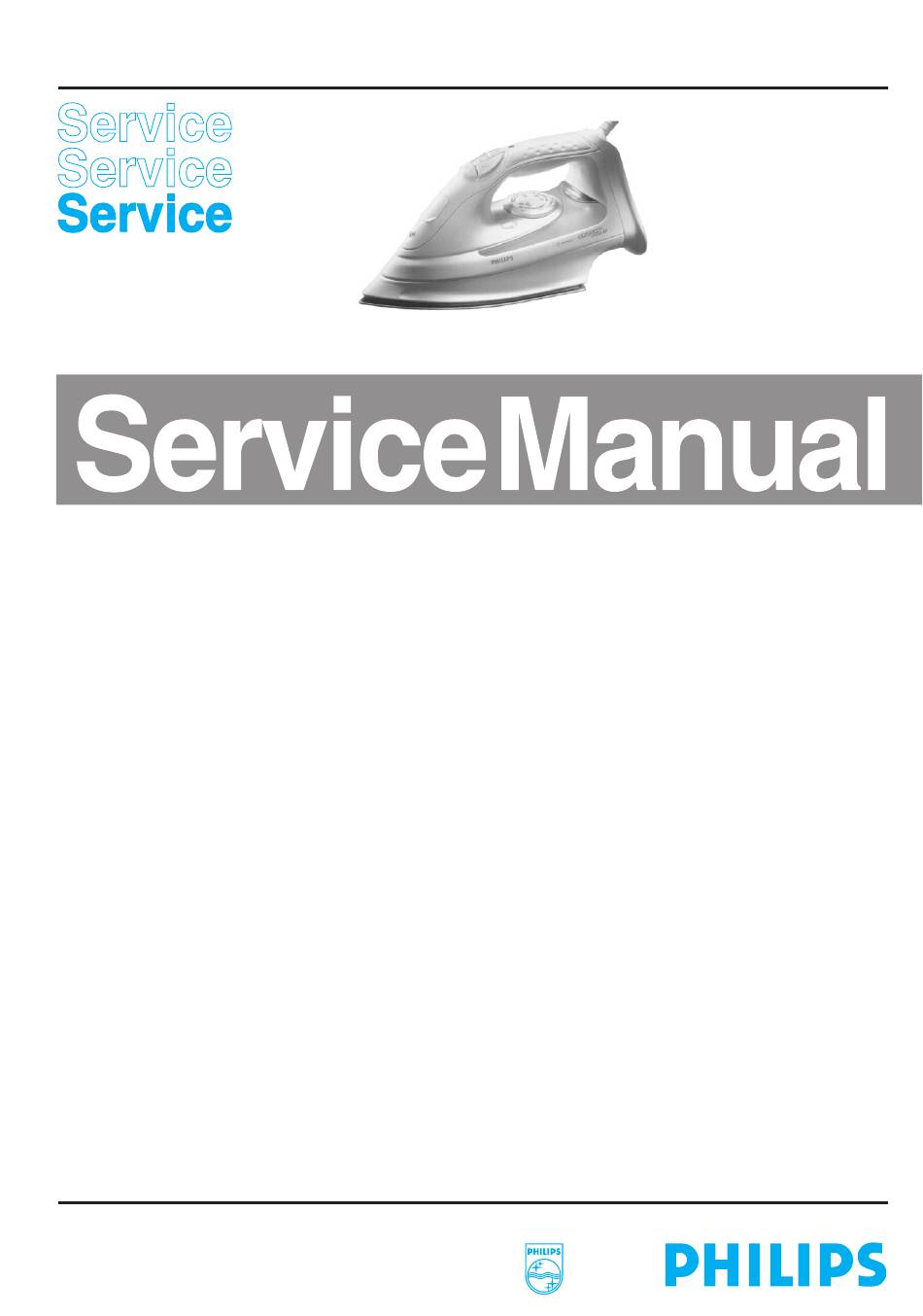

Philips HI 510 Service Manual

Philips Domestic Appliances and Personal Care

PRODUCT INFORMATION

Features HI 510
pilot light
integrated cord winder
spray
variable steam
turbo steam
shot of steam
vertical steam
self-clean
ball swivel
lenght cord set 2.5 m
anti-drip function
automatic shut-off
anodised soleplate
Voltage / frequency : 100, 120 - 127, 220 - 240 V
Power consumption : 110 - 110 V, 1200 Watts at 100 V
Sole plate temperature : 215 ± 25 °C
Steam output : Variable steam output max. 20 gr/min when :
- slide is set to position 6
- temperature dial is set to position MAX.
Turbo steam output :
Always to be used in combination with the
variable steam slide, increases the steam output
with max 10 gr/min to a total of 30 gr/min.
Shot Of Steam : 60 gr/min
This product meets the requirements regarding interference
suppression on radio and TV.
Published by Philips Domestic Appliances and Personal Care
4822 729 21818
97/05
PCS 88 672
HI 520 HI 530
x x x
x x x
x x x
x x x
- x x
x x x
x x x
x x x
- - x
x x x
x x x
- - -
x x x
50 - 60 Hz
120 - 127 V, 1450 Watts at 120 V
220 - 240 V, 1600 Watts at 230 V
Turbo steam function :
HI 540
The steam output of the variable steam function depends upon the
x
position of the slide knob.
x
When set to postition 6 the steam output is 20 gr/min.
x
This might be not sufficient. In that case the turbo button has to be
x
pushed down for max 10 sec. Due to this operation the steam
x
output will increase to 30 gr/min.
x
Vertical steam :
x
When the iron is kept in vertical position, the s.o.s button can be
x
used to iron hanging fabrics as curtains.
x
Self-clean function :
x
When the self-clean button is pushed down, a sudden flow of water
x
is released from the tank into the heated sole plate.
x
This thermal shock will cause scale particles come loose from the
x
steam chamber. These particles are then flushed out through the
steam vents by the water.
Anti-drip :
Water is only released through the tank valve into the steam
chamber if the sole plate temperature is high enough to evaporate all
water. If the temperature is not hot enough the tank valve is closed
by means of the bi-metal disc.
Auto shut-off :
A relay in the electronic module interrupts the power to the heating
element when the iron has been motionless in :
- for 30 seconds in horizontal position.
- for 8 minutes in vertical position
The red " Auto off " pilot light starts blinking. For the 220-240
Volts version only, a sound signal is heard too.
When the iron is moved again, it's automatically switches on again.
N.B. When the iron is plugged in in horizontal position, it will not be
switched off during the first 2 minutes to ensure that it heats
up properly.
Real-off function
The movement of the thermostat's bi-metal is limited in downward
direction thus will prevent the thermostat contacts from closing at
room temperature at MIN setting.
Printed in the Netherlands
Steam Iron
©
Copyright reserved Subject to modification
HI 510
HI 520
HI 530
HI 540
