Amplifier Specifications

Specifications
The specifications below apply to both analog and digital amplifiers.
Supply voltage: 19.7-31.1 VDC
Output voltage: 25 VRMS or 70.7 VRMS
Maximum output power: Flex-35 = 35 W; Flex-50 = 50 W
Flex-50
Alarm state:
Supervision state:
Low power state (NACs in supervision, no power to
power stage):
Flex-35
Alarm state:
Supervision state:
Low power state (NACs in supervision, no power to
power stage):
The equipment operates normally with ambient temperatures outside the cabinet from 32 °C to 120 °F (0 °C to 49 °C), inclusive.
The equipment operates normally under non-condensing humidity conditions up to 93% relative humidity at 90 °F (32 °C).
Setting the Baud Rate and Address
Overview
This section describes how to configure the amplifier's baud rate and address using DIP switch SW1. Configuration is the same for analog and digital
amplifiers.
Using DIP Switch SW1
The device baud rate and address is set via DIP switch SW1, which is a bank of eight switches. From left to right (see Figure 3) these switches are
designated as SW1-1 through SW1-8. The function of these switches is as follows:
• SW1-1. This switch sets the baud rate for the internal communications line running between the card and the CPU. Set this switch to ON.
• SW1-2 through SW1-8. These switches set the card's address within the FACP. Refer to Figure 4 for a complete list of the switch settings for all
of the possible card addresses.
Note:
• You must set these switches to the value assigned to the card by the Programmer.
• The SW1 setting applies to audio controller slaves, including audio input cards.
page 4
5.55 A (signal)
351 mA (signal)
0 A (signal)
4.00 A (signal)
351 mA (signal)
0 A (signal)

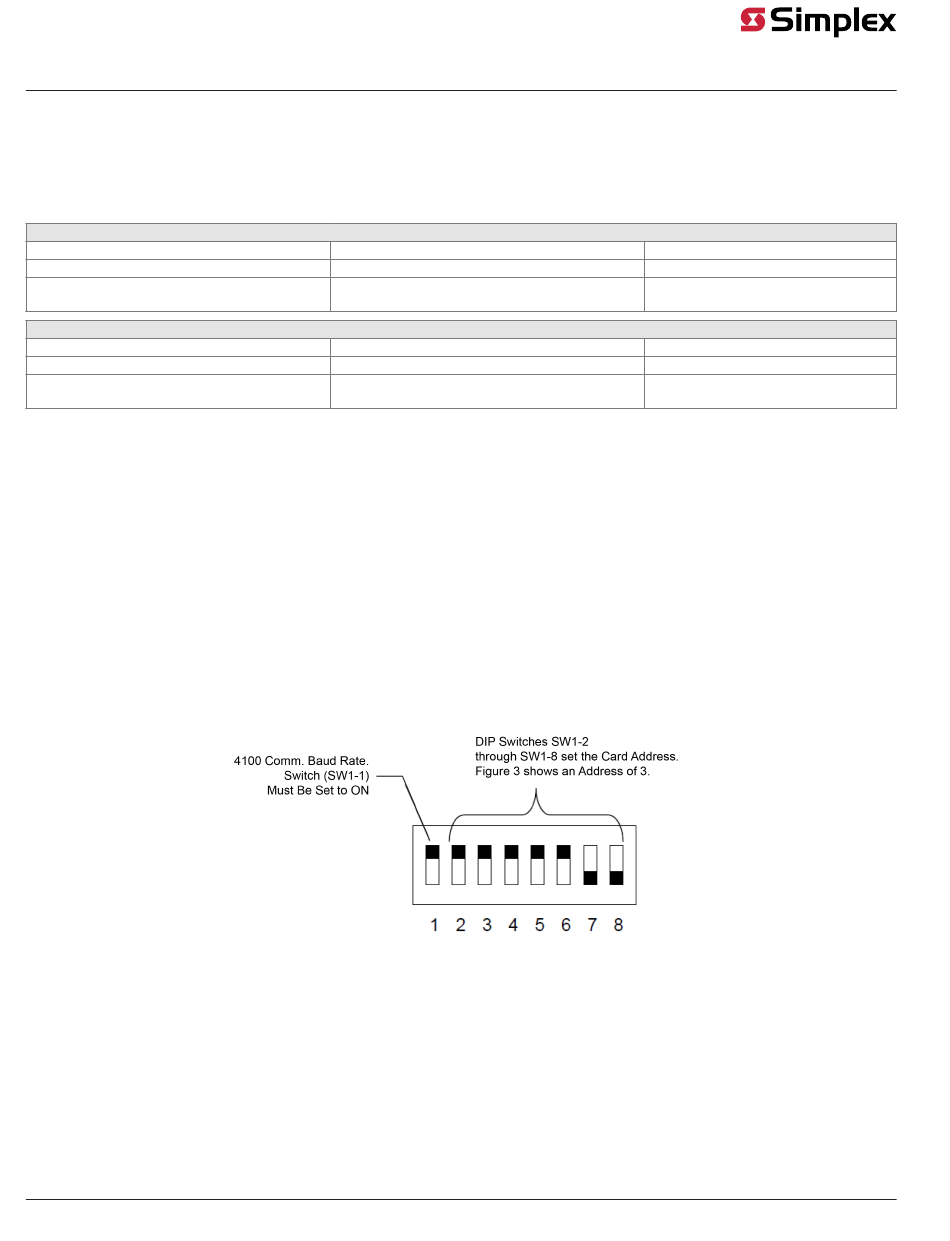

Figure 3: DIP Switch SW1
Flex Amplifiers Installation Instructions
74 mA (card)
74 mA (card)
85 mA (card)
74 mA (card)
74 mA (card)
85 mA (card)
