Flex Amplifiers Installation Instructions
Lower the amplifier into the bay by placing the two tabs on the back of the amplifier assembly into the two slots on the bottom of the bay. Then, use
the connector on the backside of the Flex module to connect to the PDI as shown in Figure 7 below.

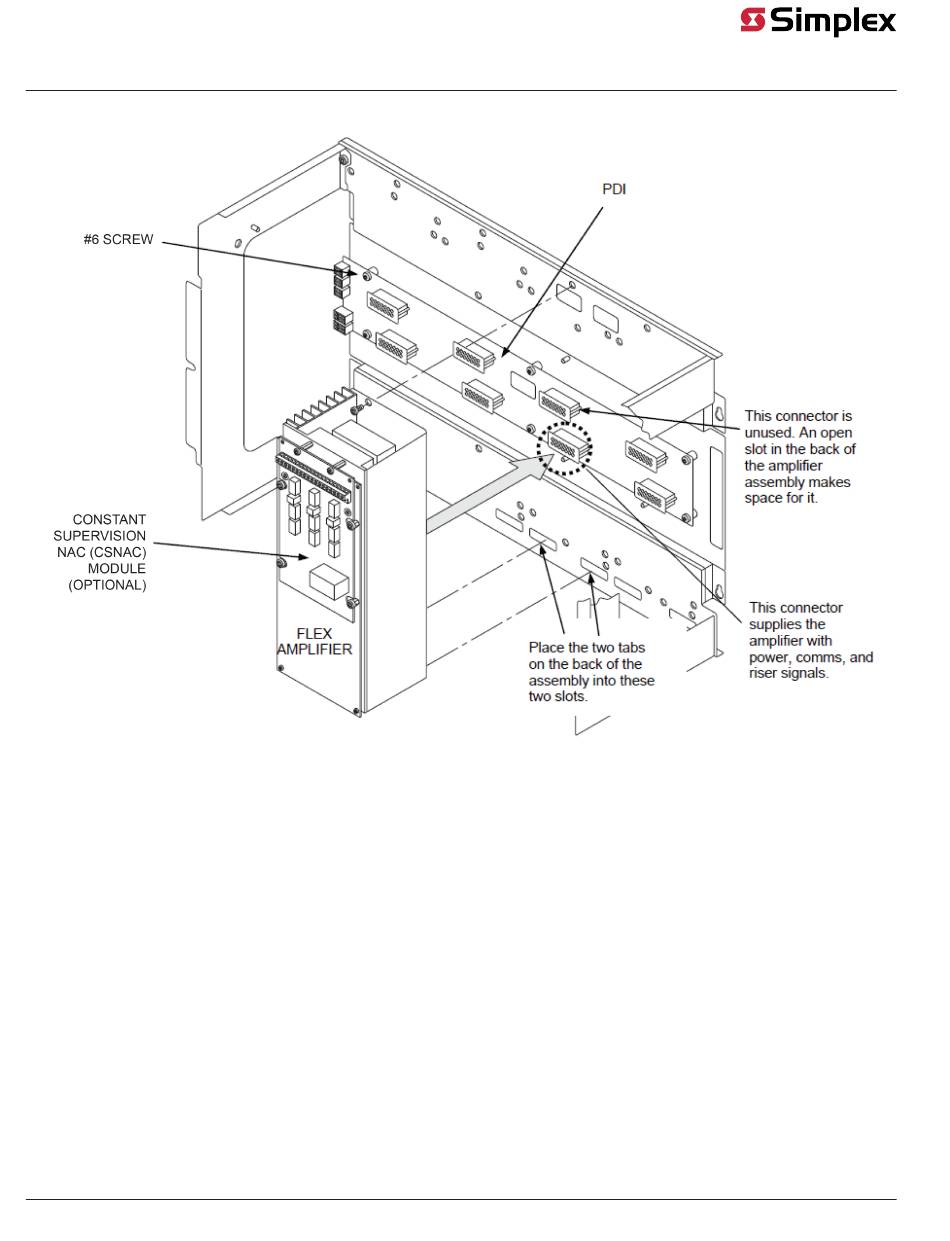

Figure 7: Mounting onto the Power Distribution Interface
page 7
579-173 Rev. Q
