Introduction to Flex amplifiers
Overview
The Flex amplifiers provide audio signals to system speaker circuits. The Flex Amplifier is offered in two versions, the Flex-35 and the Flex-50.
Functionally, both amplifiers behave identically but the Flex-50 is capable of supplying an additional 15W of power over the 35W version. The maximum
available output from the Flex-50 and Flex-35 is 50W and 35W, respectively. The load may be configured in any way so long as the maximum power
output limit is not exceeded. Both amplifiers provide dual-channel capability with internal backup functionality. (All Flex Amplifiers described in this
publication are listed in the next two sections.)
Flex Amplifiers not compatible with CSNAC Option
Note: The following Product IDs or PIDs (example: 4100-1212 4100-1261) are not compatible with the Constant Supervision Notification Appliance
Circuit (CSNAC) option.
• 4100-1212/4100-1261 1261 Analog Flex-50/Flex-35 Amp (25 VRMS)
• 4100-1213/4100-1262 Analog Flex-50/Flex-35 Amp (70 VRMS)
• 4100-1226/4100-1263 Digital Flex-50/Flex-35 Amp (25 VRMS)
• 4100-1227/4100-1264 Digital Flex-50/Flex-35 Amp (70 VRMS)
For LED descriptions, see the "LED Indications" section at the end of this document.
Flex Amplifiers Compatible with CSNAC Option
Note: The following PIDs (example: 4100-1312/ 4100-1361) are compatible with all options (including the CSNAC option) and 4100U Master Firmware
Revision 11.08 or later.
• 4100-1312/4100-1361 Analog Flex-50/Flex-35 Amp (25 VRMS)
• 4100-1313/4100-1362 Analog Flex-50/Flex-35 Amp (70 VRMS)
• 4100-1326/4100-1363 Digital Flex-50/Flex-35 Amp (25 VRMS)
• 4100-1327/4100-1364 Digital Flex-50/Flex-35 Amp (70 VRMS)
page 2

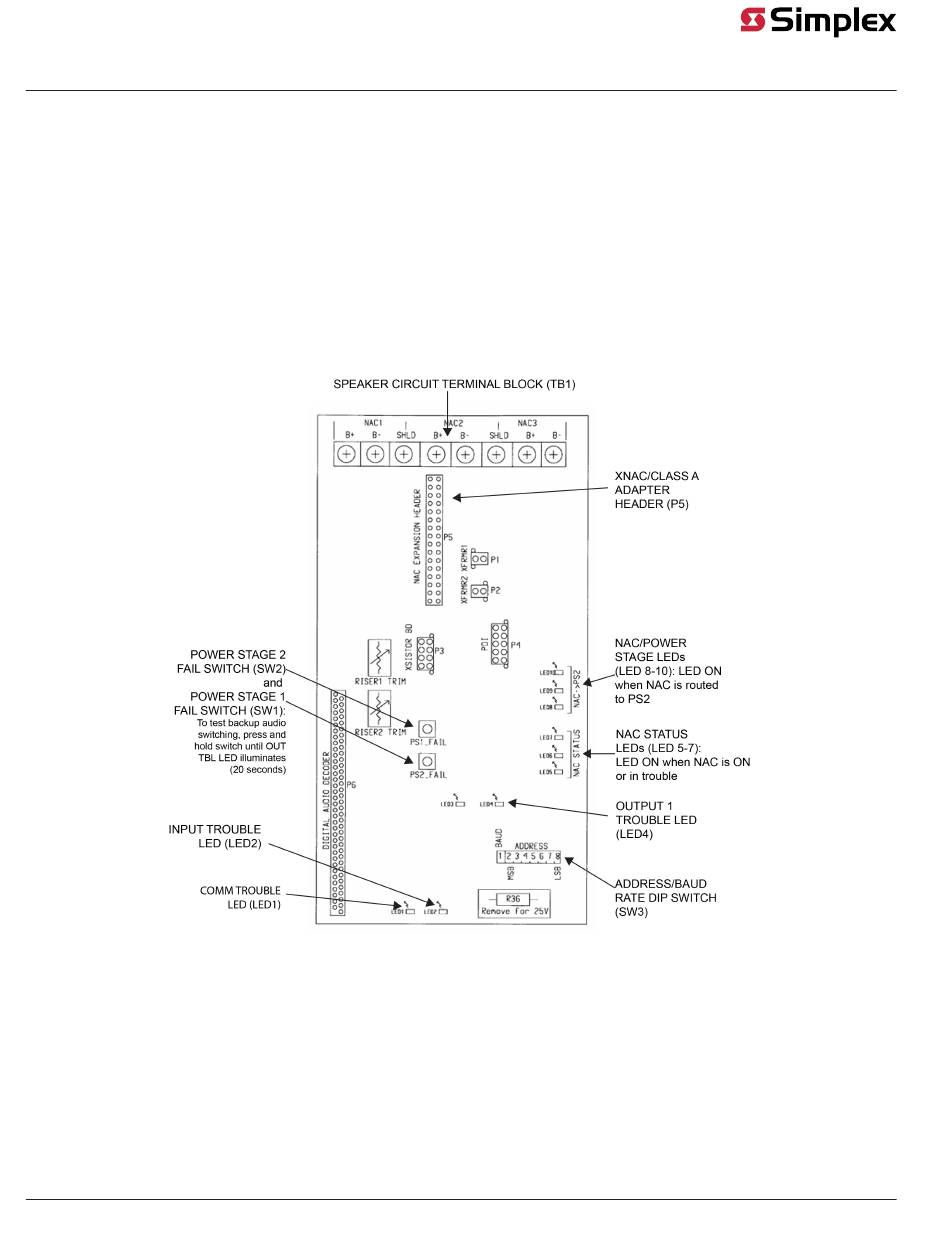

Figure 1: Flex Amplifier without CSNAC Compatibility
