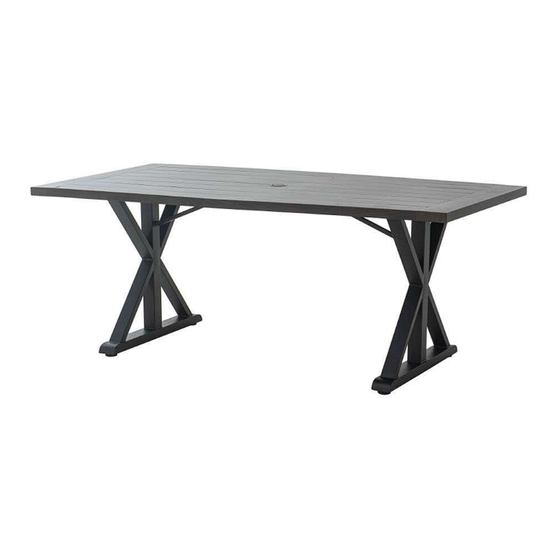

Sandpointe rectangle dining table

Advertisement

ASSEMBLY INSTRUCTIONS
ITEM#: A208000306
SKU#: 810554376
SANDPOINTE RECTANGLE
DINING TABLE
Need h elp? We are here for you! 1(866)578.6569
24/7 · Toll Free

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A208000306 and is the answer not in the manual?

Questions and answers

Summary of Contents for Broyhill A208000306

  • Page 1 ASSEMBLY INSTRUCTIONS ITEM#: A208000306 SKU#: 810554376 SANDPOINTE RECTANGLE DINING TABLE Need h elp? We are here for you! 1(866)578.6569 24/7 · Toll Free...
  • Page 2: Warranty

    GENERAL BEST PRACTICES FOR ASSEMBLY: • Please read and understand this entire manual before attempting to assemble or install the product. • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
  • Page 3: Exploded Drawing

    EXPLODED DRAWING...
  • Page 4: Parts List

    PARTS LIST Label Part Number Description rt Image Umbrella cap P00650003802 Table top P00210042602 P00540051901 P00500054601 Connect bar Foot pad P005300021 Pre-assembled HARDWARE LIST Label Part Number Description Part Image H100010004 Bolt M6*15 H100010005 Bolt M8*30 H090030002 Allen Key M6...
  • Page 5: Helpful Hints

    HELPFUL HINTS • Tools needed and not included • Separating parts before starting Provided in hardware pack How many people needed for the installation work...
  • Page 6 STEP 1 Assembled View: Attached Table top (B) to Leg(C) with Bolt(BB), tighten the Bolt(BB) to 80% depth with Wrench(CC).
  • Page 7 STEP 2 Assembled View: Attached Connect bar (D) and Table top(B) to Leg(C) with Bolt(AA), tighten all the Bolt to 100% depth with Wrench(CC) at last.
  • Page 8 STEP 3 Assembled View: Put the Umbrella cap(A) on the Table top(B).
