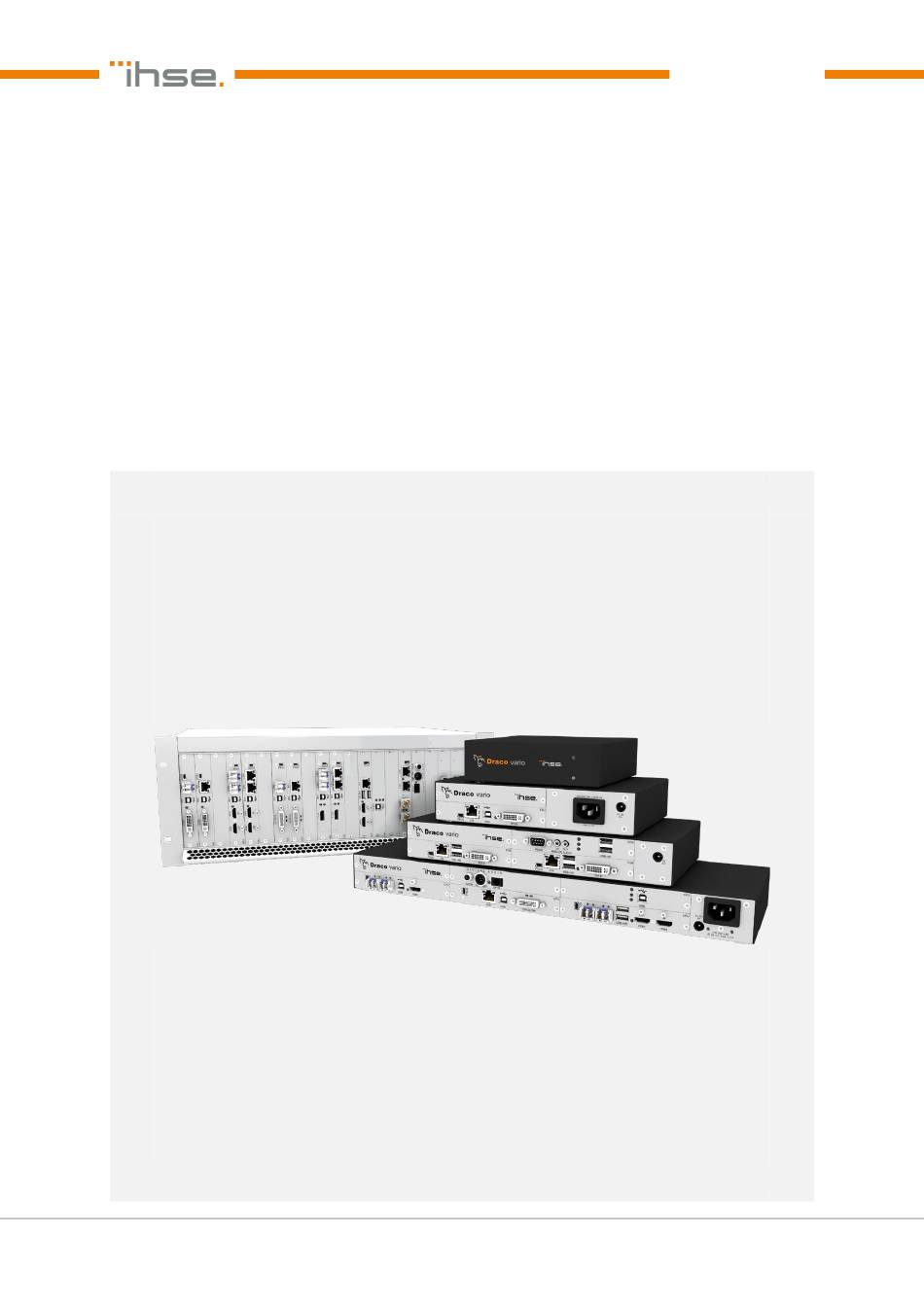

- Page 1 USER MANUAL Draco vario Chassis Series 474 Document 474-BODY_en Edition: 2022-08-07...
- Page 2 The model and serial number of your products are indicated on the bottom of our products. Always refer to this information when you need to contact your dealer or the support of IHSE GmbH (see chapter 7, page 69). Trademarks and Trade Names All trademark and trade names mentioned in this document are acknowledged to be the property of their respective owners.
-
Page 3: Table Of Contents
Chassis 474-BODY Table of Contents Table of Contents Table of Contents ................................3 Important Information ............................6 Symbols for Warnings and Helpful Information ................... 6 Intended Use ............................... 6 Labels ................................6 Safety instructions ..............................7 Consignes de Sécurité ............................9 Description ................................ - Page 4 Table of Contents Chassis 474-BODY 4.6.9 6-Slot-Chassis 474-BODY6R-R1 ..................... 31 4.6.10 6-Slot-Chassis 474-BODY6DC-12/24/48 ................. 31 4.6.11 6-Slot Chassis 474-BODY6BP/474-BODY6BP-S ..............32 4.6.12 2-Slot-Chassis 474-BODY6BP-SNMP ..................33 4.6.13 6-Slot-Chassis 474-BODY6BPF/474-BODY6BPF-S ............... 35 4.6.14 21-Slot Chassis 474-BODY21/4U .................... 36 4.6.15 21-Slot Chassis 474-BODY21/4UR ..................37 Maintenance .................................
- Page 5 Chassis 474-BODY Table of Contents Connector Pinouts ............................. 65 6.2.1 RJ45 (Network) ........................65 6.2.2 Power Socket - 2.5-mm Barrel ....................65 6.2.3 Power Socket - C14 ......................... 65 6.2.4 Power Socket - Kycon, 4-pole ....................65 6.2.5 Power Socket - PCB Connector, 3-pole .................. 65 Current Draw, Power Supply Voltage and Power Consumption ...............
-
Page 6: Important Information
Intended Use 474-BODY chassis are designed and intended for mounting or sliding-in IHSE KVM extender modules, IHSE add-on modules, or IHSE devices with extended function therein. The intended use includes the restrictions and safety instructions according to this manual. Non-intended use, non-observance of this user manual, as well as unauthorized modifications exclude the liability of the manufacturer for any resulting damages. -
Page 7: Safety Instructions
Chassis 474-BODY Safety instructions Safety instructions To ensure reliable and safe long-term operation of your device, please note the following guidelines: Read this user manual carefully. Only use the device according to this user manual. Failure to follow the instructions described can result in personal injury, damage to the device, or endanger the security of your data. - Page 8 Safety instructions Chassis 474-BODY Connection Check the device and the power supply units for visible damage before connecting it. Only connect the device if the device and the ports are not damaged. Only use power supply units originally supplied with the product or manufacturer-approved replacements. ...
-
Page 9: Consignes De Sécurité
Chassis 474-BODY Consignes de Sécurité Consignes de Sécurité Pour garantir un fonctionnement fiable et sûr de votre périphérique à long terme, veuillez respecter les directives suivantes : Lisez attentivement ce manuel d'utilisation. N'utilisez le périphérique que conformément à ce manuel d'utilisation. Le non-respect des instructions décrites peut entraîner des blessures corporelles, endommager le périphérique ou mettre en danger la sécurité... - Page 10 Consignes de Sécurité Chassis 474-BODY Connexion Avant de connecter le périphérique et les unités d'alimentation, vérifiez qu'ils ne présentent pas de dommages visibles. Seulement connectez le périphérique et les unités d'alimentation que si le périphérique et les ports ne sont pas endommagés.
-
Page 11: Description
Therefore, please first select a chassis, then select one or more extender module(s), then select one or more add-on module(s) if required. The Draco System Designer, available on the IHSE website at https://dsd.ihse.com, will help you with system configuration. Described in this manual. -
Page 12: Chassis Types
Description Chassis 474-BODY Chassis Types Draco vario chassis are available in the following versions: 4.2.1 Mounting Chassis Chassis Power supply unit Active Setup for redundant Type Slots backplane Current input Internal External power supply voltage 474-BODY2 Interface side 474-BODY2R Interface side 1x (external) 474-BODY2N Interface side... -
Page 13: Accessories
19"-Rackmount Ears for Draco vario 4-slot chassis 474-6RMK 19"-Rackmount Ears for Draco vario 6-slot chassis 474-BLND1 Blanking plate with IHSE Logo, 1-slot for Draco vario chassis 474-BRACKET Wall-/Tablemount L-Brackets for all 2-/4-/6-slot chassis 474-BRACKET-L Wall-/Tablemount L-Brackets to mount by screws... -
Page 14: Accessories - Fans
Description Chassis 474-BODY 4.3.3 Accessories - Fans Part. No. Description 474-6FAN Optional fan for Draco vario 2-slot and 6-slot chassis with backplane 474-MODFAN Fan cartridge module, retrofittable for all Draco vario chassis Scope of Delivery Product type Scope of delivery Per each Draco vario 474-BODY2 •... -
Page 15: Product View - Slots And Ports Of Chassis
Chassis 474-BODY Description Product View - Slots and Ports of Chassis 4.5.1 2-Slot Chassis 474-BODY2 Fig. 3 Interface side chassis 474-BODY2 Slot 1 Power supply voltage, DC Slot 2 4.5.2 2-Slot Chassis 474-BODY2R Fig. 4 Interface side chassis 474-BODY2R Slot 1 Power supply voltage 1, DC Slot 2 Power supply voltage 2, DC... -
Page 16: 2-Slot Chassis 474-Body2Dc-12/24/48
Description Chassis 474-BODY 4.5.4 2-Slot Chassis 474-BODY2DC-12/24/48 NOTICE Excessive current draw The 2-slot Draco vario chassis with an internal power supply unit is not equipped with a fuse on its primary side. The protection against excessive current draw has to be provided by the electrical installation of the building. Fig. -
Page 17: 2-Slot Chassis 474-Body2Bpf-Snmp
Chassis 474-BODY Description 4.5.6 2-Slot Chassis 474-BODY2BPF-SNMP This chassis will be available in the future, please contact the sales team. NOTICE Excessive current draw The 2-slot Draco vario chassis with an internal power supply unit is not equipped with a fuse on its primary side. ... -
Page 18: 4-Slot Chassis 474-Body4R
5 V DC port to power connected peripherals. Redundancy is inapplicable. The maximum placement/restrictions for peripherals are available via Draco System Designer at https://dsd.ihse.com. Fig. 10 Interface side chassis 474-BODY4R... -
Page 19: 6-Slot Chassis 474-Body6R-R1
Chassis 474-BODY Description 4.5.9 6-Slot Chassis 474-BODY6R-R1 NOTICE Excessive current draw The 6-slot chassis with an internal power supply unit is not equipped with a fuse on its primary side. The protection against excessive current draw has to be provided by the electrical installation of the building. NOTICE Power supply voltage too low With chassis 474-BODY6R-R1 a redundant power supply voltage is possible up to a current of maximum 5 A... -
Page 20: 4.5.10 6-Slot Chassis 474-Body6Dc-12/24/48
Description Chassis 474-BODY 4.5.10 6-Slot Chassis 474-BODY6DC-12/24/48 NOTICE Excessive current draw The 6-slot chassis with an internal power supply unit is not equipped with a fuse on its primary side. The protection against excessive current draw has to be provided by the electrical installation of the building. Fig. -
Page 21: 4.5.12 2-Slot Chassis 474-Body6Bp-Snmp
Chassis 474-BODY Description 4.5.12 2-Slot Chassis 474-BODY6BP-SNMP NOTICE Excessive current draw The 6-slot chassis with an internal power supply unit is not equipped with a fuse on its primary side. The protection against excessive current draw has to be provided by the electrical installation of the building. This chassis will be available in the future, please contact the sales team. -
Page 22: 4.5.13 6-Slot Chassis 474-Body6Bpf/474-Body6Bpf-S
Description Chassis 474-BODY 4.5.13 6-Slot Chassis 474-BODY6BPF/474-BODY6BPF-S NOTICE Excessive current draw The 6-slot chassis with an internal power supply unit is not equipped with a fuse on its primary side. The protection against excessive current draw has to be provided by the electrical installation of the building. Fig. -
Page 23: Fig. 19 Rear Side Chassis 474-Body21/4U
Chassis 474-BODY Description Both IEC sockets are mounted on both chassis. Whether one or two power supply units are mounted can be seen by the black lever for pulling out the power supply. Fig. 19 Rear side chassis 474-BODY21/4U Preparation for power supply voltage 2, AC Power supply voltage 1, AC (redundancy) (redundancy) Pull-out lever for power supply unit 1... -
Page 24: Status Indication Of Chassis
Description Chassis 474-BODY Status Indication of Chassis For an easier identification, the LED representation and column designation in the tables were selected analogously to the LED position on the chassis. 4.6.1 2-Slot-Chassis 474-BODY2 Fig. 21 Interface side chassis 474-BODY2 - LED for power supply voltage LED for power supply voltage LED for Power Supply Voltage The following table shows the LED states/colors for the power supply voltage (see chapter 4.5.1, page 15) for the... -
Page 25: 2-Slot-Chassis 474-Body2N
Chassis 474-BODY Description LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.2, page 15) for the respective situation. Pos. LED Status Description Green Redundant power supply voltage available. Green Green No redundant power supply voltage available. -
Page 26: 2-Slot-Chassis 474-Body2Dc-12/24/48
Description Chassis 474-BODY 4.6.4 2-Slot-Chassis 474-BODY2DC-12/24/48 Fig. 24 Interface side chassis 474-BODY2DC-12/24/48 - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.4, page 16) for the respective situation. -
Page 27: 2-Slot-Chassis 474-Body2Bpf/474-Body2Bpf-S
Chassis 474-BODY Description 4.6.5 2-Slot-Chassis 474-BODY2BPF/474-BODY2BPF-S New chassis version with rotated IEC socket, please contact the sales team for availability. Fig. 25 Interface side chassis 474-BODY2BPF/474-BODY2BPF-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.5, page 16) for the respective situation. -
Page 28: 2-Slot-Chassis 474-Body2Bpf-Snmp
Description Chassis 474-BODY 4.6.6 2-Slot-Chassis 474-BODY2BPF-SNMP This chassis will be available in the future, please contact the sales team. LEDs for Power Supply Voltage Fig. 26 Interface side chassis 474-BODY2BPF-SNMP - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.6, page 17) for the respective situation. -
Page 29: 4-Slot-Chassis 474-Body4
Chassis 474-BODY Description LEDs for the SNMP Function Part of the Backplane Fig. 28 Interface side chassis 474-BODY2BPF-SNMP - LEDs for SNMP function part SNMP function part LED 1 SNMP function part LED 2 The following table shows the LED states/colors of the SNMP function part of the backplane for the respective situation. -
Page 30: 4-Slot-Chassis 474-Body4R
Description Chassis 474-BODY 4.6.8 4-Slot-Chassis 474-BODY4R Fig. 30 Interface side chassis 474-BODY4R - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.8, page 18) for the respective situation. -
Page 31: 6-Slot-Chassis 474-Body6R-R1
Chassis 474-BODY Description 4.6.9 6-Slot-Chassis 474-BODY6R-R1 Fig. 31 Interface side chassis 474-BODY6R-R1 - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.9, page 19) for the respective situation. -
Page 32: 4.6.11 6-Slot Chassis 474-Body6Bp/474-Body6Bp-S
Description Chassis 474-BODY 4.6.11 6-Slot Chassis 474-BODY6BP/474-BODY6BP-S Fig. 33 Interface side chassis 474-BODY6BP/474-BODY6BP-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.11, page 20) for the respective situation. -
Page 33: 4.6.12 2-Slot-Chassis 474-Body6Bp-Snmp
Chassis 474-BODY Description 4.6.12 2-Slot-Chassis 474-BODY6BP-SNMP This chassis will be available in the future, please contact the sales team. LEDs for Power Supply Voltage Fig. 34 Interface side chassis 474-BODY6BP-SNMP - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.12, page 21) for the respective situation. -
Page 34: Fig. 36 Interface Side Chassis 474-Body6Bp-Snmp - Leds For Snmp Function Part
Description Chassis 474-BODY LEDs for the SNMP Function Part of the Backplane Fig. 36 Interface side chassis 474-BODY6BP-SNMP - LEDs for SNMP function part SNMP function part LED 1 SNMP function part LED 2 The following table shows the LED states/colors of the SNMP function part of the backplane for the respective situation. -
Page 35: 4.6.13 6-Slot-Chassis 474-Body6Bpf/474-Body6Bpf-S
Chassis 474-BODY Description 4.6.13 6-Slot-Chassis 474-BODY6BPF/474-BODY6BPF-S Fig. 37 Interface side chassis 474-BODY6BPF/474-BODY6BPF-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 Fig. 38 Rear side chassis 474-BODY6BPF/474-BODY6BPF-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage... -
Page 36: 4.6.14 21-Slot Chassis 474-Body21/4U
Description Chassis 474-BODY 4.6.14 21-Slot Chassis 474-BODY21/4U Fig. 39 Rear side chassis 474-BODY21/4U - LEDs for power supply voltage/faults Status LED power supply voltage 1 Fault LED power supply voltage 1 LEDs for Power Supply Voltage of the Standard Power Supply Unit The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.14, page 22) for the respective situation. -
Page 37: 4.6.15 21-Slot Chassis 474-Body21/4Ur
Chassis 474-BODY Description 4.6.15 21-Slot Chassis 474-BODY21/4UR Fig. 40 Rear side chassis 474-BODY21/4UR - LEDs for power supply voltage/faults Status LED power supply voltage 2 (redundancy) Status LED power supply voltage 1 Fault LED power supply voltage 2 (redundancy) Fault LED power supply voltage 1 LEDs for Power Supply Voltage of the Standard Power Supply Unit The following tables show the LED states/colors for the power supply voltage (see chapter 4.5.14, page 22) for the respective situation. -
Page 38: Maintenance
Before replacing or extending add-on modules, check the power supply limits of the chassis in the Draco System Designer under https://dsd.ihse.com. Before replacing or adding add-on modules, contact the manufacturer’s technical support. Depending on the device, certain criteria must be observed during installation (see details in the instructions). -
Page 39: Overview Of Installation Work
Chassis 474-BODY Maintenance Overview of Installation Work 5.3.1 Required Materials Required fasteners are already shipped with the initial order and are pre-assembled with the following exceptions: • 474-BODY6 Mounting chassis: If modules are to be subsequently installed in a 474-BODY6 mounting chassis that is not fully equipped at the time of the initial order, internal power cables are required depending on the module type, see accessories list (chapter 4.3.1, page 13). -
Page 40: Basics For 474-Body2/4/6
Maintenance Chassis 474-BODY 5.3.4 Basics for 474-BODY2/4/6 Extender modules are generally mounted at the bottom so that the slot above is kept free for add-on modules. • The fixing by means of a grounding screw is omitted, if: • an extender module is mounted in an upper slot. −... -
Page 41: Installation Preparation For 2-/6-Slot Slide-In Chassis
Chassis 474-BODY Maintenance 6. Replacing/installing a module: 6.1. Remove the mounting screw of the module or blanking plate to be replaced using a TORX 10 screwdriver. 6.2. Remove the grounding screw at the bottom of the chassis for the installation of an extender module in one of the lower slots using a TORX 8 screwdriver. -
Page 42: Installation Preparation For 21-Slot Slide-In Chassis
Maintenance Chassis 474-BODY 5.3.8 Installation Preparation for 21-Slot Slide-in Chassis Preparation 1. Observe the necessary ESD requirements. 2. When replacing a mounted module, remove all cables from the mounted module. 3. Loosen the knurled screw on the front panel of the module to be replaced or the blind plate by hand. 4. -
Page 43: Fig. 45 Front View - Front Panel With Fastening Screws
Chassis 474-BODY Maintenance 4. Slightly tighten the previously removed screws using a Torx 10 screwdriver, but do not fix them yet. Fig. 45 Front view - Front panel with fastening screws 5. Fix the extender module on the chassis bottom with the previously removed screw for grounding using a Torx 8 screwdriver. -
Page 44: Standard Installation In 2-/6-Slot Slide-In Chassis
Maintenance Chassis 474-BODY 5.4.2 Standard Installation in 2-/6-Slot Slide-in Chassis 1. Carry out the preparatory steps for a module installation (see chapter 5.3.7, page 41). 2. Place the extender module in the sideward guidance of the chassis and push the extender module into the chassis. -
Page 45: Fig. 50 Safety Nipple With Knurled Screw Front Panel
Chassis 474-BODY Maintenance 2. Plug the knurled screws through the nipples. Fig. 50 Safety nipple with knurled screw front panel 3. Place the extender module in the lower and upper guidance rails of the chassis and push the extender module completely into the chassis. -
Page 46: Installation Requirements For Series 490 And 495
474-BODY6BPF-S 474-BODY21/4U 474-BODY21/4UR --- The installation of extender modules of the 490 (Cat X) and 495 (Cat X and fiber) series is not permitted. * Please determine the maximum equipment with corresponding modules via the Draco System Designer under https://dsd.ihse.com. - Page 47 474-BODY6BP-SNMP* 474-BODY6BPF With additional fan module 474-MODFAN With integrated chassis fan 474-BODY2BPF-S** 474-BODY6BP-S** 474-BODY6BPF-S** The installation of the HDMI 2.0/DisplayPort 1.2 extender modules in 474-BODY21/4U and 474-BODY21/4UR is done according to the rules in the Draco System Designer under https://dsd.ihse.com.
-
Page 48: Fig. 52 Positioning Of The Conduction Pads To Be Applied
Maintenance Chassis 474-BODY Conduction Pads The cooling is done via additional conduction pads. HDMI 2.0/DisplayPort 1.2 extender modules ordered individually are delivered with two conduction pads, which must be sticked to the extender as follows. 1. Peel off the film on the adhesive surface of the thermal pads. 2. -
Page 49: Installation Of An Add-On Module
Chassis 474-BODY Maintenance Installation of an Add-on Module Add-on modules receive their power supply via the XPorts of the extender module. Exception: The USB 2.0 embedded CON module requires its own power supply. The XPorts are labeled on the PCB. 5.5.1 Scope of Delivery Check the scope of delivery of the add-on module for completeness:... -
Page 50: Add-On Module Installation In 2-/4-/6-Slot Mounting Chassis
Maintenance Chassis 474-BODY 5.5.2 Add-on Module Installation in 2-/4-/6-Slot Mounting Chassis There are two possibilities to install an extender module in a mounting chassis. Extender module remains in the chassis • With grounding screw, with easier fixing in the guides −... -
Page 51: Fig. 55 Add-On Module Mounted In A Mounting Chassis
Chassis 474-BODY Maintenance 5. Insert the add-on module into the guides of the chassis rear panel. 6. Press lightly against the rear panel and carefully lower the add-on module onto the XPort adapters below. 7. Ensure that the pin headers of the add-on module are correctly inserted into the XPort adapters. 8. -
Page 52: Add-On Module Installation In 2-/6-Slot Slide-In Chassis
Maintenance Chassis 474-BODY Possibility 2 1. Carry out the preparatory steps for a module installation (see chapter 5.3.7, page 41). 2. Demount the extender module on which the add-on module is to be mounted. 3. Plug the XPort adapters of the add-on module on the corresponding XPorts of the extender module (following figure and table in chapter 5.5.1, page 49). -
Page 53: Fig. 59 Add-On Module Connected To An Extender Module Via Xport Adapter
Chassis 474-BODY Maintenance Fig. 59 Add-on module connected to an extender module via XPort adapter 4. Insert the extender module together with the add-on module into the lower and upper side guides of the slide-in chassis and push both modules completely into the chassis. 5. -
Page 54: Add-On Module Installation In 21-Slot Slide-In Chassis
Maintenance Chassis 474-BODY 5.5.4 Add-on Module Installation in 21-Slot Slide-in Chassis 1. Carry out the preparatory steps for a module installation (see chapter 5.3.8, page 42). 2. Demount the extender module on which the add-on module is to be mounted. 3. -
Page 55: Fig. 65 Extender Module And Add-On Module With Connecting Plate
Chassis 474-BODY Maintenance 6. Remove one of the two knurled screws and position the connecting plate between the extender module and the add-on module. 7. Insert the knurled screw into the safety nipple. The connecting plate serves to visually clarify that the extender module and add-on module belong together. Fig. -
Page 56: Fig. 67 Add-On Module And Extender Module Mounted In A 21-Slot Slide-In Chassis
Maintenance Chassis 474-BODY Fig. 67 Add-on module and extender module mounted in a 21-Slot slide-in chassis 11. Connect the previously removed cables to the extender module and the corresponding cables to the newly installed modules and check the functionality of the installed add-on module. -
Page 57: Installation Of A Usb 2.0 Stand-Alone Module
Chassis 474-BODY Maintenance Installation of a USB 2.0 Stand-alone Module 5.6.1 Slot Assignment of a USB 2.0 Stand-alone Module in Mounting Chassis The USB 2.0 stand-alone module is supplied with a jumper from pin 1 to pin 3 on the backplane connector. The installation of a USB 2.0 stand-alone module differs with regard to the chassis variants. -
Page 58: Usb 2.0 Stand-Alone Module Installation In 2-/6-Slot Slide-In Chassis
Maintenance Chassis 474-BODY 5.6.3 USB 2.0 Stand-alone Module Installation in 2-/6-Slot Slide-in Chassis 1. Carry out the preparatory steps for a module installation (see chapter 5.3.7, page 41). 2. Remove the jumper from pin 1 to pin 3 on the backplane connector of the USB 2.0 stand-alone module. Fig. -
Page 59: Fig. 72 Safety Nipple In Front Panel
Chassis 474-BODY Maintenance 3. Push the safety nipples through the boreholes of the front panel and press them into the front panel until they snap into place. Fig. 72 Safety nipple in front panel 4. Plug the knurled screws through the nipples. Fig. -
Page 60: Installation Of An Snmp Module
Maintenance Chassis 474-BODY Installation of an SNMP Module 5.7.1 Slot Assignment for Installation of an SNMP Module SNMP modules can be used as follows: • In slot 5 of a 6-slot backplane chassis with exception of SNMP chassis (see chapter 4.2.2, page 12). •... -
Page 61: Installation Of A Chassis Fan
Chassis 474-BODY Maintenance 5.10 Installation of a Chassis Fan 5.10.1 Scope of Delivery Check the package contents of the chassis fan for completeness: − Fan (40 x 40 mm) incl. power cables − Mounting plate 4x Countersunk head screws (M3 x 25) −... -
Page 62: Fig. 79 Fastening Of The Fan
Maintenance Chassis 474-BODY 3. Mount the 4 screws to the outside of the chassis. Fig. 79 Fastening of the fan 4. Insert the red cable into the top opening of the terminal strip until you will reach the snap position. Therefore, the buttons can be pressed manually to provide some assistance. -
Page 63: Installation Of A Power Supply Unit In A 474-Body21
Chassis 474-BODY Maintenance 5.11 Installation of a Power Supply Unit in a 474-BODY21 Installing a redundant power supply unit To install a power supply unit in the chassis 474-BODY21/4U, proceed as follows: 1. Loosen the screws of the blanking plate with a cross-headed screwdriver and remove the blanking plate. Fig. -
Page 64: Fig. 83 Pull-Out Lever Of The Power Supply Unit Of Chassis 474-Body21
Maintenance Chassis 474-BODY Replacing a power supply unit To replace a power supply unit in the chassis 474-BODY21/4U, proceed as follows: 1. Loosen the screws of the power supply unit to be replaced with a cross-headed screwdriver. 2. Press down the locking (pos. 1) on the power supply unit and keep it pressed. 3. -
Page 65: Technical Data
Chassis 474-BODY Technical Data Technical Data Interface RJ45 (Network) The devices offer a 1000BASE-T interface to establish a network connection to a computer. The wire pairs are used in both directions. The cabling is suitable for a full duplex operation. Connector Pinouts 6.2.1 RJ45 (Network) -
Page 66: Current Draw, Power Supply Voltage And Power Consumption
Do NOT exceed the recommended maximum current supply of the chassis. To optimize the chassis equipment considering the chassis limitations, please refer to the Draco System Designer https://dsd.ihse.com. The table shows the power supply voltage 1 and 2 of the chassis and the recommended maximum power supply of the chassis. -
Page 67: Dimensions
Chassis 474-BODY Technical Data Dimensions Dimension of the shipping box incl. Product Dimension accessories 474-BODY2/ 145 x 147 x 43 mm (5.7" x 5.8" x 1.7") 474-BODY2R 474-BODY2N 221 x 147 x 43 mm (8.7" x 5.8" x 1.7") CON Units: 267 x 216 x64 mm 474-BODY2DC-12 (10.5"... -
Page 68: Weight
Technical Data Chassis 474-BODY Weight The following table contains the weight when the respective chassis is fully equipped with the maximum number of modules, and with redundant power supply units depending on the chassis, for both the CPU Unit and the CON Unit. Max. -
Page 69: Technical Support
Chassis 474-BODY Technical Support Technical Support Prior to contacting support please ensure you have read this manual, and then installed and set-up your KVM extender as recommended. Support Checklist To efficiently handle your request, it is necessary that you complete a support request checklist (Download). Please ensure that you have the following information available before you call: •... -
Page 70: Certificates/Directives
The manufacturer complies with the EU Directive 2012/19/EU on the prevention of waste electrical and electronic equipment (WEEE). The device labels carry a respective marking. EU Declaration of Conformity Please find the EU Declaration of Conformity for complete devices (extender modules installed in chassis) under: www.ihse.com/eu-declaration-of-conformity... -
Page 71: Glossary
Chassis 474-BODY Glossary Glossary The following terms are commonly used in this manual or in video and KVM technology. Term Description Cat X Any Cat 5e (Cat 6, Cat 7) cable. CON Unit Decoder extender module to connect to the console (monitor(s), keyboard, and mouse; optionally also with USB 2.0 devices). -
Page 72: Index
Index Chassis 474-BODY Index Preparation ............40 Accessories USB 2.0 Stand-alone Module ......57 Fans ..............14 U-Switch Module ..........60 Mounting Options ..........13 Safety ..............38 Power Supply Voltage .......... 13 Slide-in Chassis 21-Slot Add-on Module..........54 Certificates ..............70 Extender Module .......... - Page 73 Chassis 474-BODY Index Tools ..............39 Status Indication Workplace Preparation ......... 39 474-BODY2 ............24 474-BODY21/4U ........... 36 Pinouts ..............65 474-BODY21/4UR..........37 Power Socket - 2.5-mm Barrel ......65 474-BODY2BPF ............ 27 Power Socket - C14..........65 474-BODY2BPF-S ..........27 Power Socket - Kycon ..........
-
Page 74: Table Of Figures
Table of Figures Chassis 474-BODY Table of Figures Fig. 1 Slot numbering of 2-slot/4-slot/6-slot chassis ....................11 Fig. 2 Slot numbering of the 21-slot chassis ......................11 Fig. 3 Interface side chassis 474-BODY2 ......................15 Fig. 4 Interface side chassis 474-BODY2R ......................15 Fig. - Page 75 Chassis 474-BODY Table of Figures Fig. 43 Grounding screw in the delivery status of the chassis ................. 41 Fig. 44 Positioned extender module with connected power cable ................42 Fig. 45 Front view - Front panel with fastening screws .................... 43 Fig.
-
Page 76: Change Log
Change Log Chassis 474-BODY Change Log This table offers an overview about the most important changes available, such as new functions, changed configuration or operation. Edition Date Chapter New functions/changes REV02.00 2022-07-08 1.3, 3.4, 4.3.1, 5 ff Added: Label description, additional accessories, additional information for scope of delivery Added: Replacement/additional installation of modules, fans, and power supply unit REV01.00 2022-03-24...
