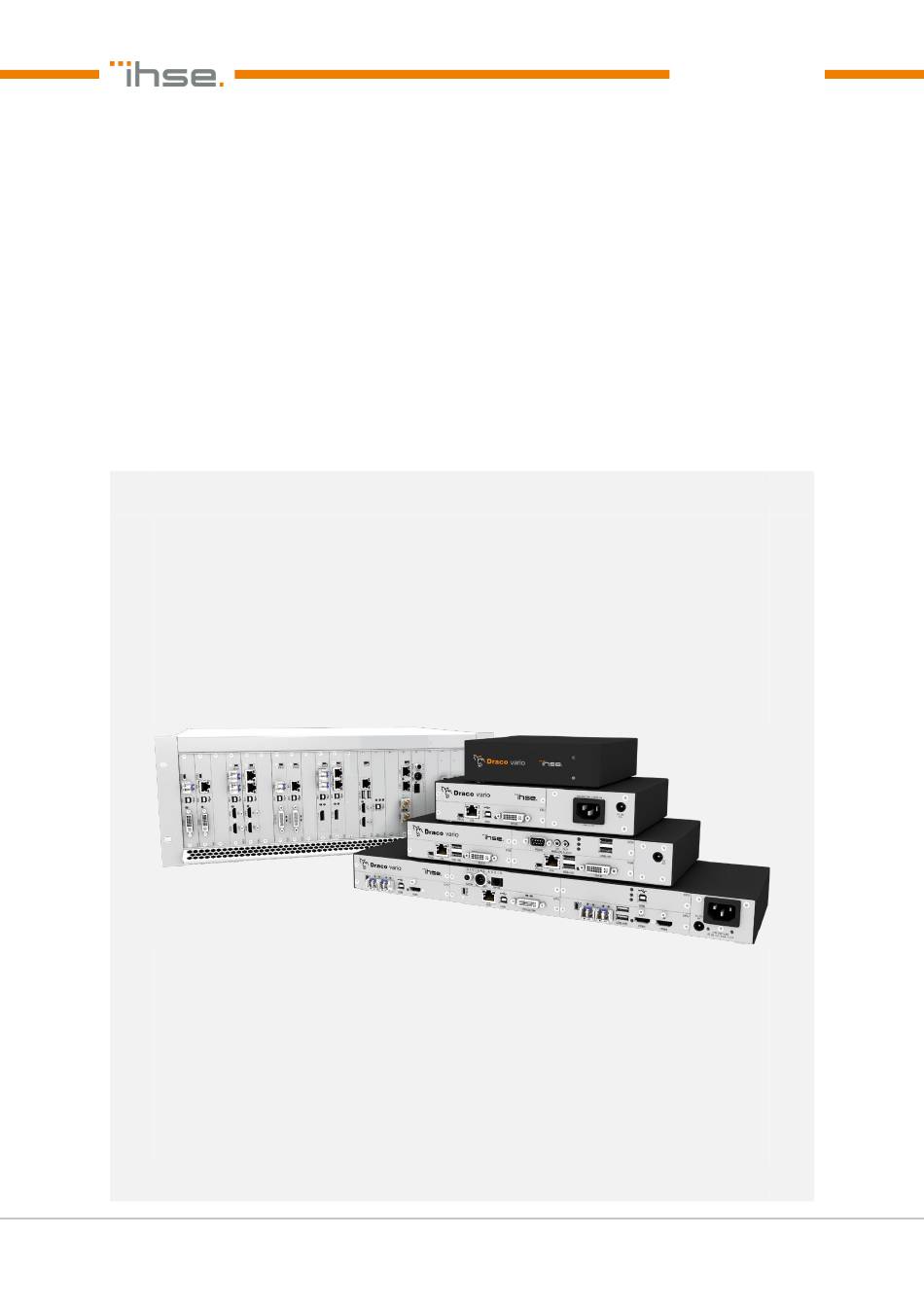

- Page 1 USER MANUAL Draco vario Chassis Series 474 Document 474-BODY_en Edition: 2022-03-24...
- Page 2 Product Identification The model and serial number of your products are indicated on the bottom of our products. Always refer to this information when you need to contact your dealer or the support of IHSE GmbH (see chapter 7, page 38).
-
Page 3: Table Of Contents
Chassis 474-BODY Table of Contents Table of Contents Table of Contents ................................3 Important Information ............................ 5 Symbols for Warnings and Helpful Information..................5 EU Declaration of Conformity ........................ 5 Safety instructions ............................6 Consignes de Sécurité ........................... 8 Description ..............................10 Intended Use ............................ - Page 4 Table of Contents Chassis 474-BODY 4.7.11 6-Slot Chassis Draco vario 474-BODY6BP/474-BODY6BP-S ..........28 4.7.12 2-Slot-Chassis Draco vario 474-BODY6BP-SNMP ..............29 4.7.13 6-Slot-Chassis Draco vario 474-BODY6BPF/474-BODY6BPF-S ..........31 4.7.14 21-Slot Chassis Draco vario 474-BODY21/4U and 474-BODY21/4UR ........32 Maintenance ..............................33 Technical Data ..............................
-
Page 5: Important Information
Intended Use 474-BODY chassis are developed and intended to mount or to slide in IHSE KVM extender modules and add-on modules, or supplementary with extended function. The intended use includes the limitations and safety instructions according to this user manual. A usage not according to the intended purpose, an ignorance of this user manual, as well as unauthorized modifications exclude the liability of the manufacturer of damages resulting from this. -
Page 6: Safety Instructions
Safety instructions Chassis 474-BODY Safety instructions To ensure reliable and safe long-term operation of your device, please note the following guidelines: Read this user manual carefully. Only use the device according to this user manual. Failure to follow the instructions described can damage the device or endanger the security of your data. - Page 7 Chassis 474-BODY Safety instructions Connection Check the device and the power supply units for visible damage before connecting it. Only connect the device if the device and the ports are not damaged. Only use power supply units originally supplied with the product or manufacturer-approved replacements.
-
Page 8: Consignes De Sécurité
Consignes de Sécurité Chassis 474-BODY Consignes de Sécurité Pour garantir un fonctionnement fiable et sûr de votre périphérique à long terme, veuillez respecter les directives suivantes : Lisez attentivement ce manuel d'utilisation. N'utilisez le périphérique que conformément à ce manuel d'utilisation. Le non-respect des instructions décrites peut endommager le périphérique ou mettre en danger la sécurité... - Page 9 Chassis 474-BODY Consignes de Sécurité Placez toutes les prises de courant, y compris les prises de courant pour les unités d'alimentation externes fournis, de manière facilement accessible et directement les unes à côté des autres. Connexion Avant de connecter le périphérique et les unités d'alimentation, vérifiez qu'ils ne présentent pas de dommages visibles.
-
Page 10: Description
Description Chassis 474-BODY Description System Overview - Numbering of the Chassis Slots The numbering of the slots in the chassis runs from bottom left to top right (2-/4-/6-slot chassis) and from left to right (21-slot chassis). The slot numbering is relevant for the placement of an SNMP module in a backplane chassis (see example) or a USB 2.0 stand-alone module in chassis without backplane (slot 2). -
Page 11: Product Types
Chassis 474-BODY Description Product Types 4.2.1 Mounting Chassis Chassis Power supply unit Active Setup for redundant Type Slots backplane Current input Internal External power supply voltage 474-BODY2 Interface side 474-BODY2R Interface side 1x (external) 474-BODY2N Interface side 1x (external) 474-BODY2DC-12 474-BODY2DC-24 Interface side 1x (external) -
Page 12: Accessories
Mounting plate for 2-/4-/6-slot chassis 474-VSNAP Mounting plate w/ DIN Rail Snap On for 2-slot chassis 474-BRACKET Wall-/Tablemount L-Brackets for all 2-/4-/6-Slot chassis 474-BLND1 Blanking plate with IHSE Logo, 1-slot for Draco vario chassis 4.3.3 Accessories - Fans Part. No. Description 474-6FAN... -
Page 13: Scope Of Delivery
Chassis 474-BODY Description Scope of Delivery Product type Scope of delivery Per each Draco vario 474-BODY2 • 1x 5 V DC/3 A international power supply unit chassis 474-BODY2R • 1x country-specific power cord 474-BODY4 • 1x 5 V DC/5 A international power supply unit 474-BODY4R •... -
Page 14: Device Views Draco Vario Chassis
Description Chassis 474-BODY Device Views Draco vario Chassis NOTICE Exceeding the maximum permissible power consumption In addition to the power consumption of the used modules, the power consumption of the connected peripherals must be added. Note the maximum current draw of the chassis (see chapter 6.3, page 35). 4.5.1 2-Slot-Chassis Draco vario 474-BODY2 Fig. -
Page 15: 2-Slot Chassis Draco Vario 474-Body2N
Chassis 474-BODY Description 4.5.3 2-Slot Chassis Draco vario 474-BODY2N Fig. 5 Interface side chassis 474-BODY2N Slot 1 Power supply voltage 1, AC Slot 2 Power supply voltage 2, DC NOTICE Excessive current draw The 2-slot Draco vario chassis with an internal power supply unit is not equipped with a fuse on its primary side. -
Page 16: 2-Slot Chassis Draco Vario 474-Body2Bpf-Snmp
Description Chassis 474-BODY 4.5.6 2-Slot Chassis Draco vario 474-BODY2BPF-SNMP Fig. 8 Interface side chassis 474-BODY2BPF-SNMP Slot 1 Network Slot 2 Power supply voltage 1, AC Power supply voltage 2, DC 4.5.7 4-Slot-Chassis Draco vario 474-BODY4 Fig. 9 Interface side chassis 474-BODY4 Slot 1 Slot 4 Slot 2... -
Page 17: 6-Slot Chassis Draco Vario 474-Body6R-R1
Chassis 474-BODY Description 4.5.9 6-Slot Chassis Draco vario 474-BODY6R-R1 Fig. 11 Interface side chassis 474-BODY6R-R1 Slot 1 Slot 5 Slot 2 Slot 6 Slot 3 Power supply voltage 2, DC Slot 4 Power supply voltage 1, AC NOTICE Too low power supply voltage With Draco vario chassis 474-BODY6R-R1 a redundant power supply voltage is possible up to a current of maximum 5 A (modules inclusive connected periphery). -
Page 18: 4.5.11 6-Slot Chassis Draco Vario 474-Body6Bp/474-Body6Bp-S
Description Chassis 474-BODY 4.5.11 6-Slot Chassis Draco vario 474-BODY6BP/474-BODY6BP-S Fig. 13 Interface side chassis 474-BODY6BP/474-BODY6BP-S Slot 1 Slot 4 Slot 2 Slot 5 Slot 3 Slot 6 Fig. 14 Rear view chassis 474-BODY6BP/474-BODY6BP-S Power supply voltage 1, AC Grounding Power supply voltage 2, AC 4.5.12 2-Slot Chassis Draco vario 474-BODY6BP-SNMP Fig. -
Page 19: 4.5.13 6-Slot Chassis Draco Vario 474-Body6Bpf/474-Body6Bpf-S
Chassis 474-BODY Description 4.5.13 6-Slot Chassis Draco vario 474-BODY6BPF/474-BODY6BPF-S Fig. 17 Interface side chassis 474-BODY6BPF/474-BODY6BPF-S Slot 1 Slot 5 Slot 2 Slot 6 Slot 3 Power supply voltage 1, AC Slot 4 Power supply voltage 2, AC 4.5.14 21-Slot Chassis Draco vario 474-BODY21/4U and 474-BODY21/4UR Fig. -
Page 20: Status Indication Of The Chassis
Description Chassis 474-BODY Status Indication of the Chassis For an easier identification, the LED representation and column designation in the tables were selected analogously to the LED position on the chassis. 4.6.1 2-Slot-Chassis Draco vario 474-BODY2 Fig. 20 Interface side chassis 474-BODY2 - LED for power supply voltage LED for power supply voltage LED for Power Supply Voltage The following table shows the LED states/colors for the power supply voltage (see chapter 4.6.1, page 14) -
Page 21: 2-Slot-Chassis Draco Vario 474-Body2N
Chassis 474-BODY Description 4.6.3 2-Slot-Chassis Draco vario 474-BODY2N Fig. 22 Interface side chassis 474-BODY2N - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.3, page 15) for the respective situation. -
Page 22: 2-Slot-Chassis Draco Vario 474-Body2Dc-12/24/48
Description Chassis 474-BODY 4.6.4 2-Slot-Chassis Draco vario 474-BODY2DC-12/24/48 Fig. 23 Interface side chassis 474-BODY2DC-12/24/48 - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.4, page 15) for the respective situation. -
Page 23: 2-Slot-Chassis Draco Vario 474-Body2Bpf/474-Body2Bpf-S
Chassis 474-BODY Description 4.6.5 2-Slot-Chassis Draco vario 474-BODY2BPF/474-BODY2BPF-S Available until March 2022 Available from March 2022 Fig. 24 Interface side chassis 474-BODY2BPF/474-BODY2BPF-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.5 page 15) for the respective situation. -
Page 24: 2-Slot-Chassis Draco Vario 474-Body2Bpf-Snmp
Description Chassis 474-BODY 4.6.6 2-Slot-Chassis Draco vario 474-BODY2BPF-SNMP LEDs for Power Supply Voltage Fig. 25 Interface side chassis 474-BODY2BPF-SNMP - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.6 page 16) for the respective situation. -
Page 25: 4-Slot-Chassis Draco Vario 474-Body4
Chassis 474-BODY Description LEDs for the SNMP Function Part of the Backplane Fig. 27 Interface side chassis 474-BODY2BPF-SNMP - LEDs for SNMP function part SNMP function part LED 1 SNMP function part LED 2 The following table shows the LED states/colors of the SNMP function part of the backplane for the respective situation. -
Page 26: 4-Slot-Chassis Draco Vario 474-Body4R
Description Chassis 474-BODY 4.6.8 4-Slot-Chassis Draco vario 474-BODY4R Fig. 29 Interface side chassis 474-BODY4R - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 Status LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.8 page 16) for the respective situation. -
Page 27: 6-Slot-Chassis Draco Vario 474-Body6R-R1
Chassis 474-BODY Description 4.6.9 6-Slot-Chassis Draco vario 474-BODY6R-R1 Fig. 30 Interface side chassis 474-BODY6R-R1 - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 Status LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.9 page 17) for the respective situation. -
Page 28: 4.6.11 6-Slot Chassis Draco Vario 474-Body6Bp/474-Body6Bp-S
Description Chassis 474-BODY 4.6.11 6-Slot Chassis Draco vario 474-BODY6BP/474-BODY6BP-S Fig. 32 Interface side chassis 474-BODY6BP/474-BODY6BP-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 Status LEDs for Power Supply Voltage The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.11 page 18) for the respective situation. -
Page 29: 4.6.12 2-Slot-Chassis Draco Vario 474-Body6Bp-Snmp
Chassis 474-BODY Description 4.6.12 2-Slot-Chassis Draco vario 474-BODY6BP-SNMP LEDs for Power Supply Voltage Fig. 33 Interface side chassis 474-BODY6BP-SNMP - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.12 page 18) for the respective situation. -
Page 30: Fig. 35 Interface Side Chassis 474-Body6Bp-Snmp - Leds For Snmp Function Part
Description Chassis 474-BODY LEDs for the SNMP Function Part of the Backplane Fig. 35 Interface side chassis 474-BODY6BP-SNMP - LEDs for SNMP function part SNMP function part LED 1 SNMP function part LED 2 The following table shows the LED states/colors of the SNMP function part of the backplane for the respective situation. -
Page 31: 4.6.13 6-Slot-Chassis Draco Vario 474-Body6Bpf/474-Body6Bpf-S
Chassis 474-BODY Description 4.6.13 6-Slot-Chassis Draco vario 474-BODY6BPF/474-BODY6BPF-S Fig. 36 Interface side chassis 474-BODY6BPF/474-BODY6BPF-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 Fig. 37 Rear view chassis 474-BODY6BPF/474-BODY6BPF-S - LEDs for power supply voltage LED for power supply voltage 1 LED for power supply voltage 2 Status LEDs for Power Supply Voltage... -
Page 32: 4.6.14 21-Slot Chassis Draco Vario 474-Body21/4U And 474-Body21/4Ur
Description Chassis 474-BODY 4.6.14 21-Slot Chassis Draco vario 474-BODY21/4U and 474-BODY21/4UR Fig. 38 Rear side chassis 474-BODY21/4U and 474-BODY21/4UR - LEDs for power supply voltage/faults Status LED power supply voltage 2 (redundancy) Status LED power supply voltage 1 Fault LED power supply voltage 2 (redundancy) Fault LED power supply voltage 1 Status LEDs for Power Supply Voltage of the Standard Power Supply Unit The following tables show the LED states/colors for the power supply voltage (see chapter 4.6.14 page 19) -
Page 33: Maintenance
Chassis 474-BODY Maintenance Maintenance NOTICE Possible damage to the mechanical and electronic components The chassis contains no serviceable parts inside. If the chassis is nevertheless opened and damaged in the process, the manufacturer's warranty is voided. The chassis, the extender modules and add-on modules as well as the accessories can be damaged by cleaning with damp or aggressive cleaning agents. -
Page 34: Technical Data
Technical Data Chassis 474-BODY Technical Data Interface RJ45 (Network) The devices offer a 1000BASE-T interface to establish a network connection to a computer. The wire pairs are used in both directions. The cabling is suitable for a full duplex operation. Connector Pinouts 6.2.1 RJ45 (Network) -
Page 35: Current Draw, Power Supply Voltage And Power Consumption
To optimize the chassis equipment considering the chassis limitations, please refer to the Draco System Designer at https://dsd.ihse.com. The table shows the power supply 1 and 2 of the chassis and the recommended maximum power supply of the chassis. -
Page 36: Environmental Conditions And Emissions
Technical Data Chassis 474-BODY Environmental Conditions and Emissions Parameter Value Operating temperature 5 to 45 °C (41 to 113 °F) Storage temperature -25 to 60 °C (-13 to 140 °F) Relative humidity Max. 80% non-condensing Operating altitude Max. 2.500 m (7,500 ft) Sound pressure level Max. -
Page 37: Weight
Chassis 474-BODY Technical Data Weight The following table contains the weight when the respective chassis is fully equipped with the maximum number of modules, and with redundant power supply units depending on the chassis, for both the CPU Unit and the CON Unit. Max. -
Page 38: Technical Support
Technical Support Chassis 474-BODY Technical Support Prior to contacting support please ensure you have read this manual, and then installed and set-up your KVM Extender as recommended. Support Checklist To efficiently handle your request, it is necessary that you complete a support request checklist (Download). -
Page 39: Index
Chassis 474-BODY Index Index Power Socket - 2.5-mm Barrel ......34 Accessories ............... 12 Power Socket - C14 ..........34 Fans ..............12 Power Socket - Kycon ........... 34 Mounting Options ..........12 Power Socket - PCB Connector ......34 Power Supply Voltage .......... -
Page 40: Table Of Figures
Table of Figures Chassis 474-BODY Table of Figures Fig. 1 Example 1 - Numbering of the 6-slot chassis with placement (gray) of an SNMP module ..10 Fig. 2 Example 2 - Numbering of the 21-slot chassis with placement (gray) of an SNMP module ..10 Fig. -
Page 41: Change Log
Fehler! Verweisquelle konnte nicht gefunden werden. Change Log Change Log This table offers an overview about the most important changes available, such as new functions, changed configuration or operation. Edition Date Chapter New functions/changes REV01.00 2022-03-24 Initial user manual for 474-BODY chassis...
