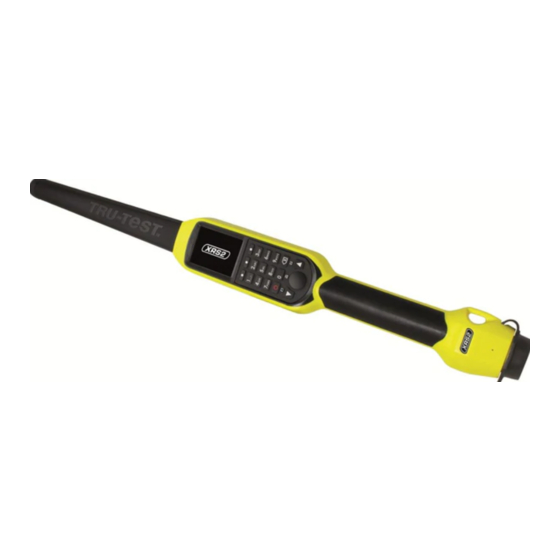

This setup guide shows how to connect an XR5000, ID5000 or JR5000 weigh scale indicator to an XRS2 or XRS2i stick reader and
have recorded weights sent directly to the stick reader.
The steps required to do this are:
1. Pair the stick reader with a 5000 indicator.
2. Set up the indicator to output weights to the stick reader.
3. Set up the stick reader with a new animal data field for the weight information.
4. Set up the stick reader to receive weight information into the new weight field.
Then you will be ready to use the stick reader with your 5000 indicator.
What you need:
An XRS2 or XRS2i Stick Reader with firmware above V1.4.4.
•
A Tru-Test JR5000, ID5000 or XR5000 weigh scale indicator.
•
Pairing the stick reader with a 5000 indicator
1
Before you start, turn on the 5000 indicator and check that
1. Press
to switch on the stick reader.
2. Press
and select Settings.
Select Bluetooth.
Select Search for Devices
Bluetooth
The
symbol on the stick reader's display will flash while it searches for devices, then the list of available devices will
be displayed:
3. Select the 5000 indicator (JR5000, ID5000 or XR5000).
Bluetooth
The
indicator light on the stick reader will illuminate blue to show that the stick reader and indicator are now paired.
Issue 03, 03/2022
Bluetooth
is enabled.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tru-Test XRS2i
Summary of Contents for Tru-Test XRS2i
- Page 1 This setup guide shows how to connect an XR5000, ID5000 or JR5000 weigh scale indicator to an XRS2 or XRS2i stick reader and have recorded weights sent directly to the stick reader. The steps required to do this are: 1. Pair the stick reader with a 5000 indicator.
- Page 2 1. On the indicator Home screen, press A list of currently connected and previously paired devices will be displayed: 2. Use the arrow keys to scroll to the XRS2/XRS2i Stick Reader. Press and select Configuration… 3. Change the bottom Output: field to Weight when weight is recorded: Bluetooth 4.
- Page 3 Setup Guide - Receiving weights directly from a 5000 weigh scale indicator Setting up the stick reader with a new animal data field for the weight information 1. From the Home screen, select Settings. 2. Select Animal Data. 3. Press to set up a new field: 4.
- Page 4 Setup Guide - Receiving weights directly from a 5000 weigh scale indicator Setting up the stick reader to receive the weight information into the new weight field 1. From the Home screen, select Settings. Select Bluetooth. Select Paired devices. Select the 5000 indicator (JR5000, ID5000 or XR5000): 2.
- Page 5 Setup Guide - Receiving weights directly from a 5000 weigh scale indicator Using the stick reader with your indicator 1. From the Home screen, select Scan to go to the Scanning screen. 2. Scan an EID tag with the stick reader then press on the indicator.
