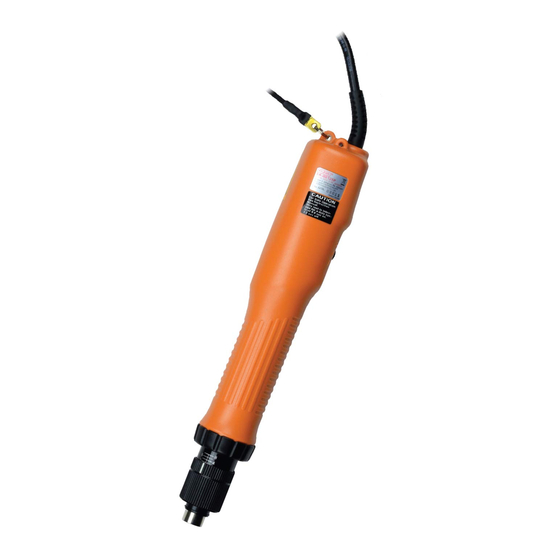

Kilews SK-B6125LF Operation And Maintenance Manual
Brushless electric screwdrivers
Hide thumbs
Also See for SK-B6125LF:
- Operation and maintenance manual (13 pages) ,
- Operation and maintenance manual (13 pages)
Related Manuals for Kilews SK-B6125LF
Summary of Contents for Kilews SK-B6125LF
- Page 1 OPERATION AND MAINTENANCE MANUAL SK-B6125L SK-B6150L SK-B6125LF SK-B6125P SK-B6150P SK-B6125PF AC-TYPE Brushless Electric Screwdrivers KILEWS INDUSTRIAL CO., LTD. http://www.kilews.com Y2F070A-ETL-007...
- Page 2 NOTICE Metal Assembly Screwdrivers are designed for installing threaded fasteners in light industrial and appliance manufacturing applications. KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted. WARNING Important safety information enclosed. Read all these instructions before placing tool in service or operation and save these instructions. It is the responsibility of the employer to place the information in this manual into the hands of the operator.
-
Page 3: Important Safety Rules
Important Safety Rules WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refers to your mains-operated (corded) power tool or battery operated (cordless) power tool. - Page 4 d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area. e) Maintain power tools.
-
Page 5: Do Not Operate This Tool Without Protective Earth Connected
WARNING！ DO NOT OPERATE THIS TOOL WITHOUT PROTECTIVE EARTH CONNECTED Grounding Instructions 1、This tool should be grounded while in use to protect the operator from electric shock. NOTICE! To ensure the grounding result, the grounding conductor of the power cord must be well connected with the grounding terminal of power facility. This tool is equipped with grounding conductors. - Page 6 Operations Cautions 1) Whenever changing a bit, make certain the Forward / Reverse Switch is in the “ OFF “ position and tool is unplugged. 2) To avoid damaging the housing of screwdriver, do not allow chemicals get in touch with housing of screwdriver. Ex.: Acetone, benzene, thinner, trichloroethylene ketone, and other similar chemicals.
-
Page 7: Description Of Operation
CAUTION ● Do not drop or abuse the tool. ● Whenever a tool is not being used, position the Power Switch to the “OFF” position and unplug the power cord. Description of Operation Attaching / detaching bit and bit type Push up the holder clamp by finger tip, and it will be unlocked. -
Page 8: Do Not Attempt To Repair This Electric Screwdriver
CAUTION 1. The use of other than genuine KILEWS replacement parts may result in decreased tool performance and increased maintenance, and may invalidate all warranties. All repairs and maintenance of this tool and its word must be performed by an authorized service center. -
Page 9: Specifications
SK-B6125LF；SK-B6125PF with BIT 1# & 2# 1 Pcs. Each. SK-B6150L ；SK-B6150P with BIT 2 Pcs. 2. Suspension rack and Torque fixing ring acceptable for use with the tool are available from KILEWS catalogue. 3. Torque Fixing Ring KC-7C(S) 1 Pcs... -
Page 10: Torque Adjustment Operation
2. The numbers from zero to eight on the torque scale are reference number only and not an indication of actual torque output. 3. Please refer to Kilews website http://www.kilews.com for the detail component list.
